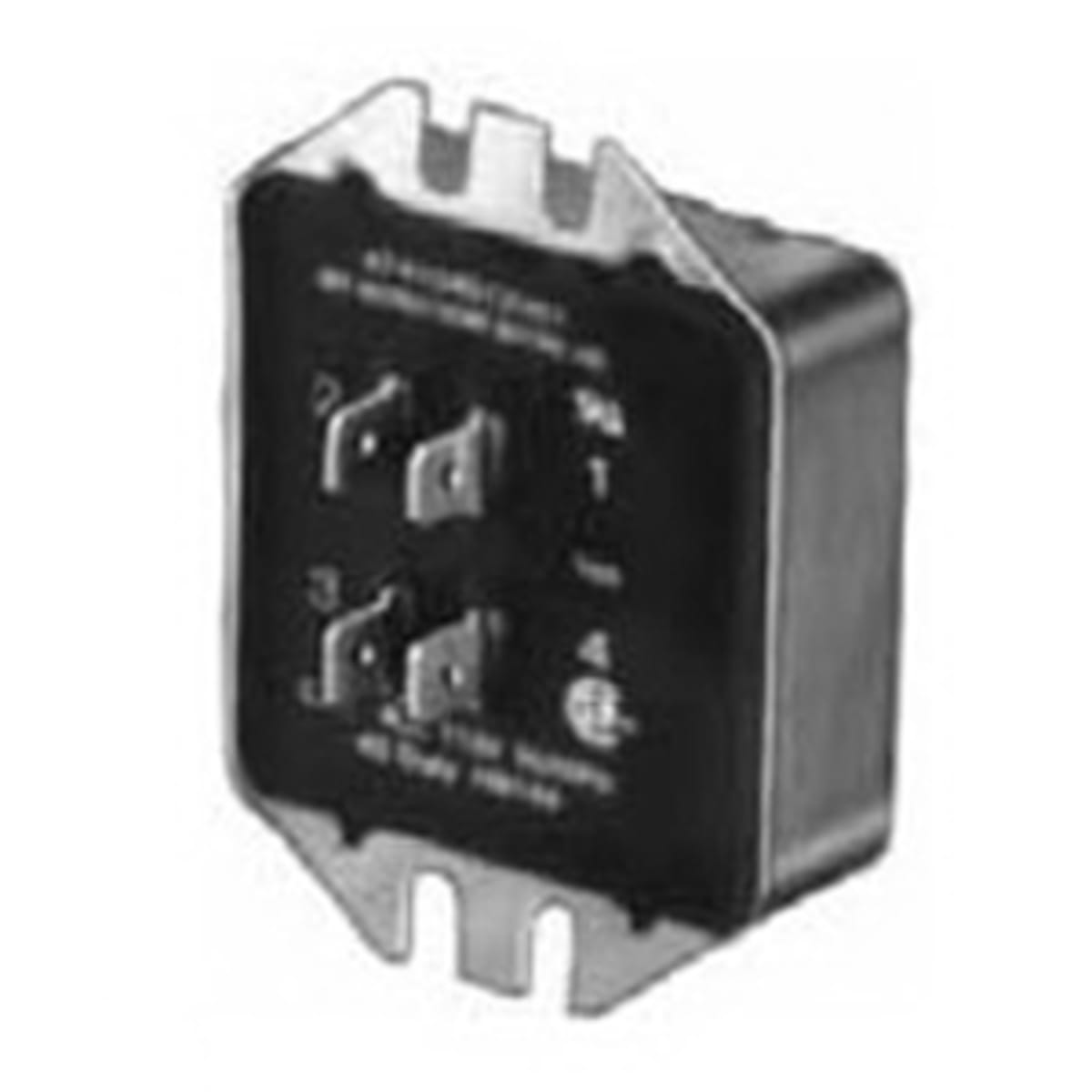

Rexnord 477104012U0K Solid State Motor Switch, 2 HP, 165V Cut-Out, 115V Start Circuit, 37V Cut-In, 40A

Product Description

The Rexnord 477104012U0K is a solid state motor switch designed for single phase motors. This switch offers reliable operation for various applications. Its compact design simplifies installation and maintenance tasks.

• Compatible with 115VAC and 115/230VAC dual voltage motors
• Includes a bleeder resistor to enhance the lifespan of start capacitors
• Features zero voltage detection to prevent random switch operation

Product Highlights

Ideal for efficient motor control in commercial and industrial applications.

Product Information

Standard Information

• Brand: Rexnord
• Item Name: Solid State Motor Switch

Technical Specifications

• HP Rating: 2 HP
• Voltage Rating: 165 V
• Amperage Rating: 40 A
• Dimensions: 1.76 inch W x 1.14 inch D x 2.69 inch H
• Phase: 1-Phase
• Use With: 115VAC or 115/230VAC dual voltage capacitor start/capacitor run motors
• Standards: UL Listed, Meets ANSI/IEEE C62.41-1991 Category 3
