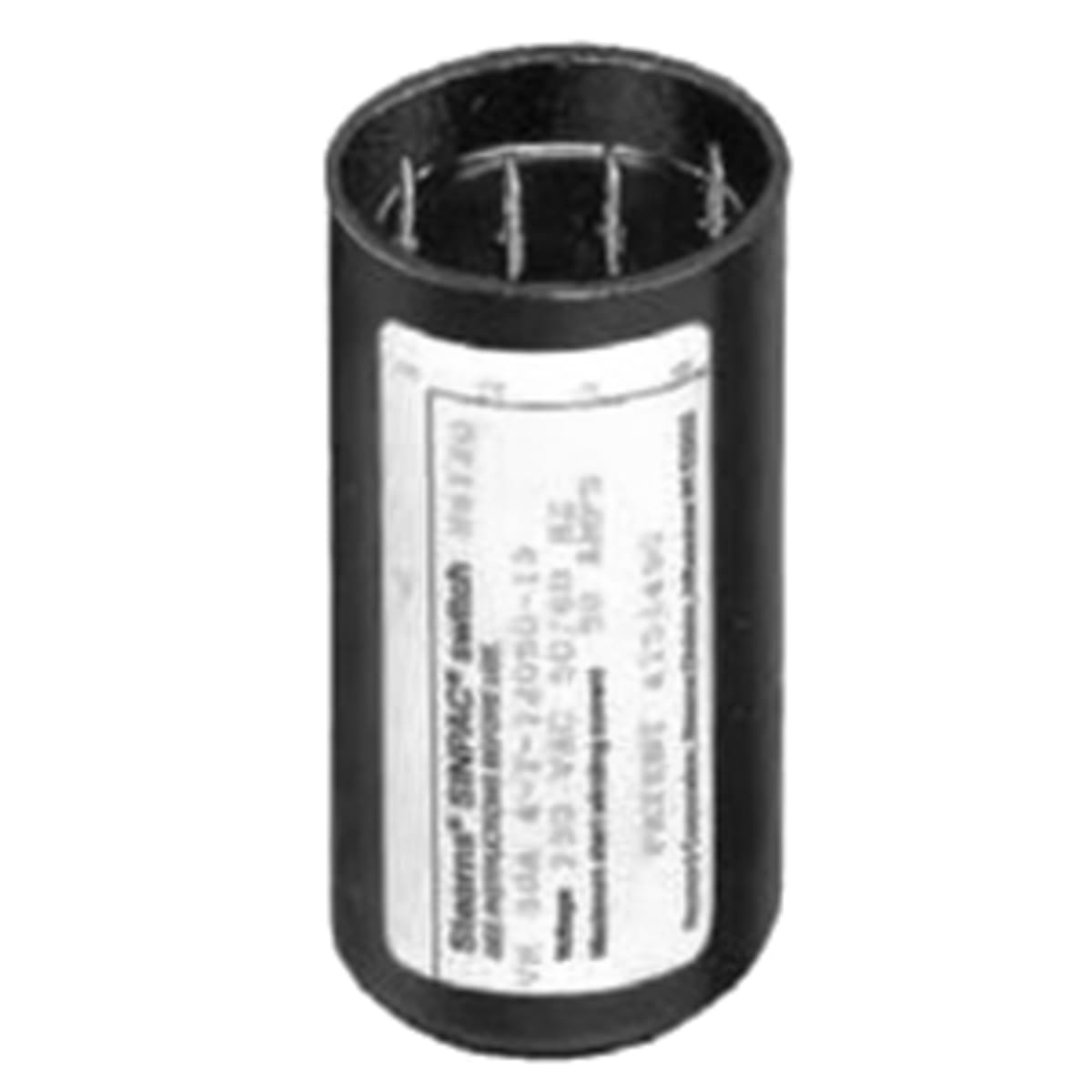

Rexnord 472203515U0K Solid State Motor Switch 3 HP 310V Cut - Out 230V Start Circuit

Product Description

The Rexnord 472203515U0K is a solid state motor switch designed for single-phase motors. It supports a power rating of 3 HP and operates with a voltage of 310 volts cut-out and 230 volts for the start circuit. This switch is engineered for applications requiring dependable motor start circuit switching, making it suitable for numerous industrial and commercial uses.

• Operates with 310 volts and 35 amps.
• Designed for 1-phase motors.
• Features restart capability when speed drops.

Product Highlights

This solid state motor switch is crafted to provide reliable performance over extended periods. It is equipped with features that enhance installation efficiency and operational safety.

Product Information

Standard Information

• Brand: Rexnord
• Part Number: 2CV35-310
• Usage: 230VAC Capacitor Start Motors

Technical Specifications

• Phase: 1-Phase
• HP Rating: 3 HP
• Voltage Rating: 310 V
• Amperage Rating: 35 A
• Dimensions: 1.83 inches diameter x 3.38 inches length
• Standards: UL Listed, Meets ANSI/IEEE C62.41-1991 Category 3
• Trade Name: SINPAC
