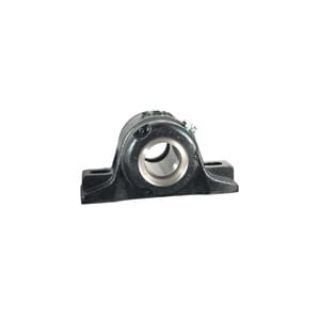

Rex AMP9515F RND Extra Heavy Duty Pillow Block Spherical Roller Bearing

Product Description

The Rex AMP9515F is an extra heavy-duty pillow block spherical roller bearing designed for high load applications. It features a five and fifteen-sixteenth inch bore and a twenty-three inch bolt center-to-center length. This bearing is ideal for various industries including mining and construction.

• Durable cast iron construction.
• Supports a dynamic load capacity of three hundred nine thousand eight hundred sixty pounds.
• Includes a spring-loaded heavy contact seal for protection.

Product Highlights

This bearing is suitable for demanding environments and is known for its reliability and performance.

Product Information

Standard Information

• Brand: Rex
• Series: 9000

Technical Specifications

• Material: Cast Iron
• Bore Diameter: 5-15/16 in
• Load Capacity: 309860 lb Dynamic / 395500 lb Static
• Maximum Speed: 700 rpm
• Mounting Type: Four-Bolt Base
• Overall Length: 28 in
• Overall Width: 7-3/4 in
• Temperature Rating: 225 deg F
• Base to Bore Centerline: 7-7/8 in
• Bolt Center-to-Center Length: 23 in
• Locking Device: Adapter Mounted
• Expansion Type: Non-Expansion (Fixed)
