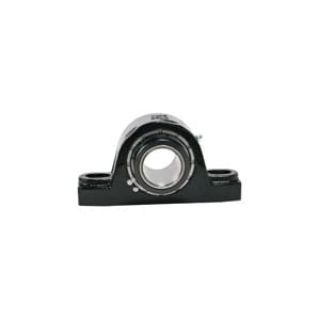

Rex® ZEP2203 RND Pillow Block Roller Bearing Unit - 2-3/16 in Diameter Bore - Cast Iron - Non-Expansion Bearing

Product Description

The Rex® ZEP2203 is a pillow block roller bearing unit designed for reliable performance in various industrial applications. This unit features a two-bolt base and a round bore with a diameter of two and three-sixteenths inches. Constructed from cast iron and powder-coated for durability, it is built to handle substantial radial loads and thrust loads. Ideal for mining, construction, and handling applications, the ZEP2203 ensures smooth operation in dynamic environments.

• Fixed expansion type bearing for stability
• Pre-lubricated for ease of use
• Maximum speed rating of 3650 RPM

Product Highlights

The ZEP2203 offers a robust, economical solution for supporting rotating shafts while minimizing maintenance needs.

Product Information

Standard Information

• Brand: Rex®
• Manufacturer: Rexnord

Technical Specifications

• MPN: ZEP2203
• Bore Diameter: 2-3/16 in
• Overall Length: 9-5/8 in
• Overall Width: 3-5/16 in
• Overall Height: 5 in
• Base to Bore Centerline: 2-1/2 in
• Bolt Center-to-Center Length: 6-9/16 to 8 in
• Dynamic Load Capacity: 36370 lb
• Static Load Capacity: 44400 lb
• Temperature Rating: 225 deg F
• Max RPM: 3650
