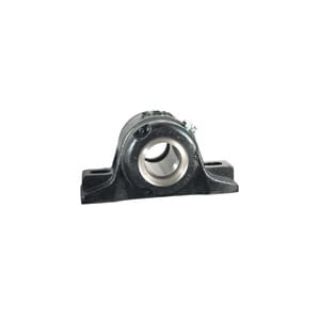

Rex® AMPS9515F RND Floating Extra Heavy Duty Pillow Block Spherical Roller Bearing

Product Description

The Rex® AMPS9515F RND is a pillow block spherical roller bearing designed for demanding applications. This bearing features a bore diameter of five and fifteen-sixteenths inches and a dynamic load capacity of two hundred ninety thousand eight hundred sixty pounds. It is ideal for use in industries such as mining, construction, and steel handling.

• Easy bearing clearance adjustment
• Spring-loaded heavy contact seal for durable operation
• Four-bolt base mounting for secure installation

Product Highlights

This bearing is capable of handling high loads and offers reliable operation at temperatures up to two hundred twenty-five degrees Fahrenheit. It has pre-lubricated design, ensuring smooth functioning right from installation.

Product Information

Standard Information

• Brand: Rex®
• Manufacturer: Rexnord

Technical Specifications

• Series: 9000
• Material: Cast Iron
• Bore Diameter: 5-15/16 inches
• Load Capacity: 309860 lb Dynamic / 395500 lb Static
• Maximum Speed: 700 rpm
• Mounting Type: Four-Bolt Base
• Overall Length: 28 inches
• Overall Width: 7-3/4 inches
• Overall Height: 16-3/4 inches
• Base to Bore Centerline: 7-7/8 inches
• Bolt Center-to-Center Length: 23 inches
• Temperature Rating: 225 degrees Fahrenheit
• Locking Device: Adapter Mounted
• Expansion Type: Expansion
