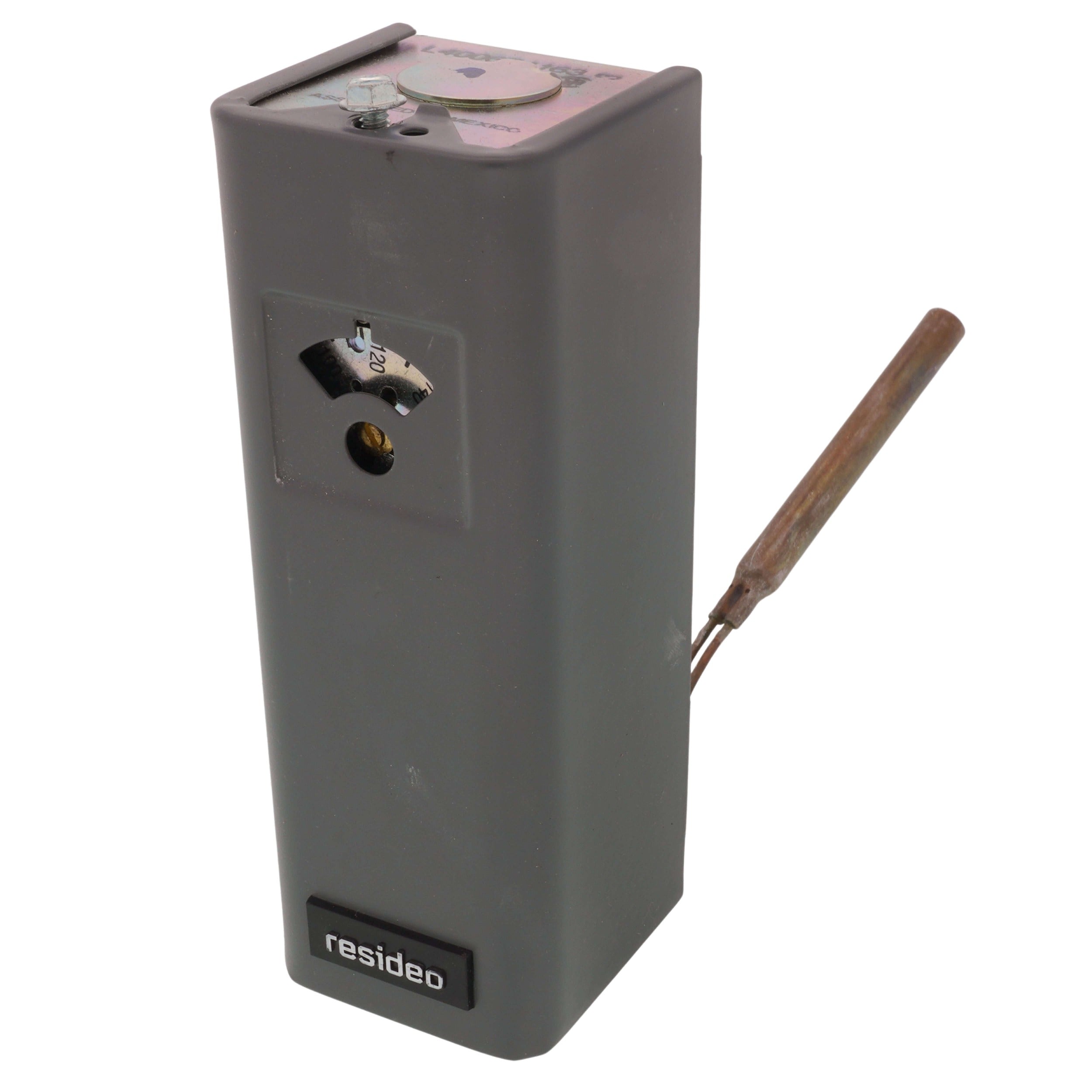

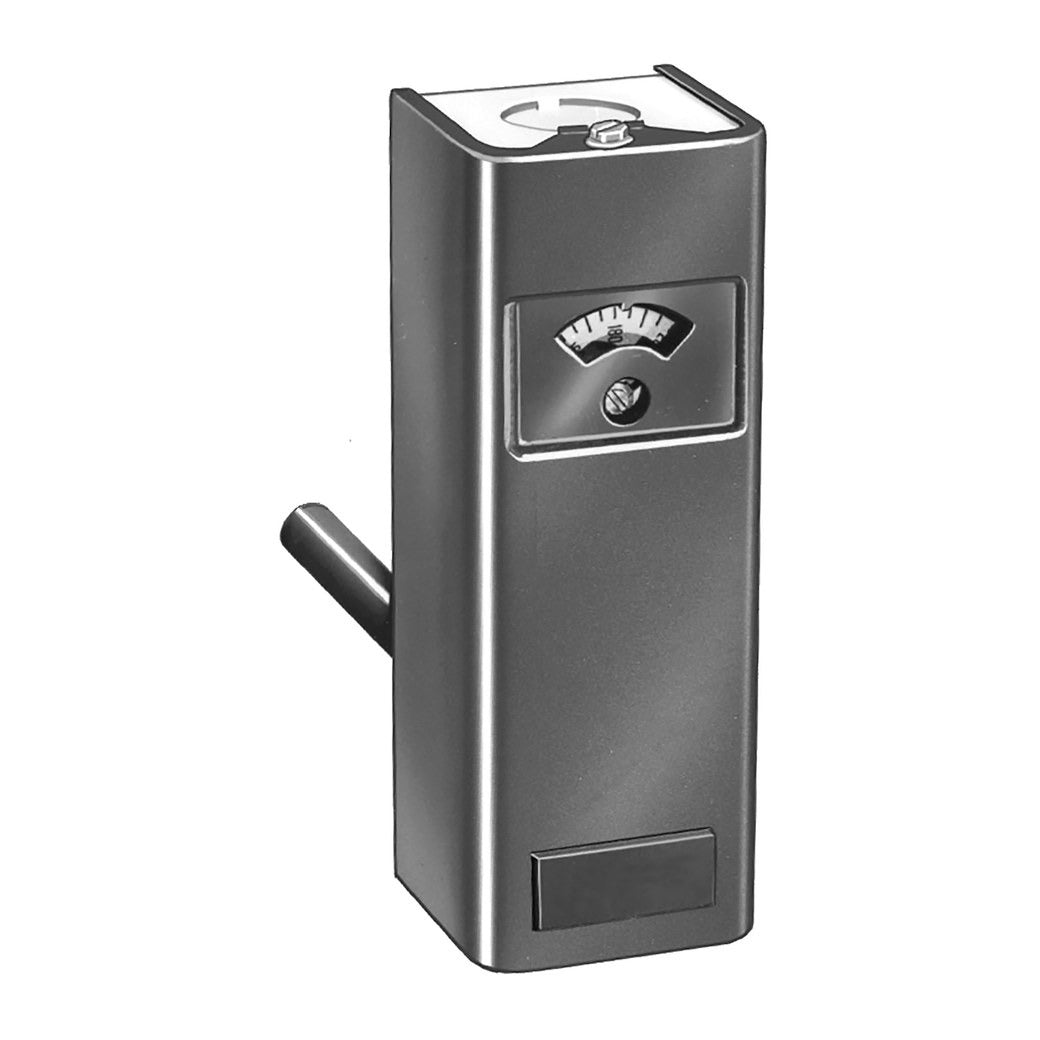

Resideo L4006B1163 Circulator Aquastat 100-240F (5-30F Diff)

Product Description

Resideo L4006B1163 is an immersion-type circulator aquastat controller that limits or regulates liquid temperature in boilers, storage tanks, and circulator systems. It provides a sensing range of 100 to 240 F with an adjustable differential of 5 to 30 F, SPST snap-acting micro switches that make on temperature rise, and a 3/8 in x 2-7/8 in sensing bulb with a 3 in capillary for horizontal or vertical insertion and direct or well immersion.

• Temperature sensing range 100 to 240 F with 5 to 30 F adjustable differential for circulator control
• SPST snap-acting micro switches, contacts make on temperature rise; electrical ratings: 0.25 A @ 0.25–12 Vdc, 8 A @ 120 Vac, 5.1 A @ 240 Vac; locked rotor 48 A @ 120 Vac, 30.6 A @ 240 Vac

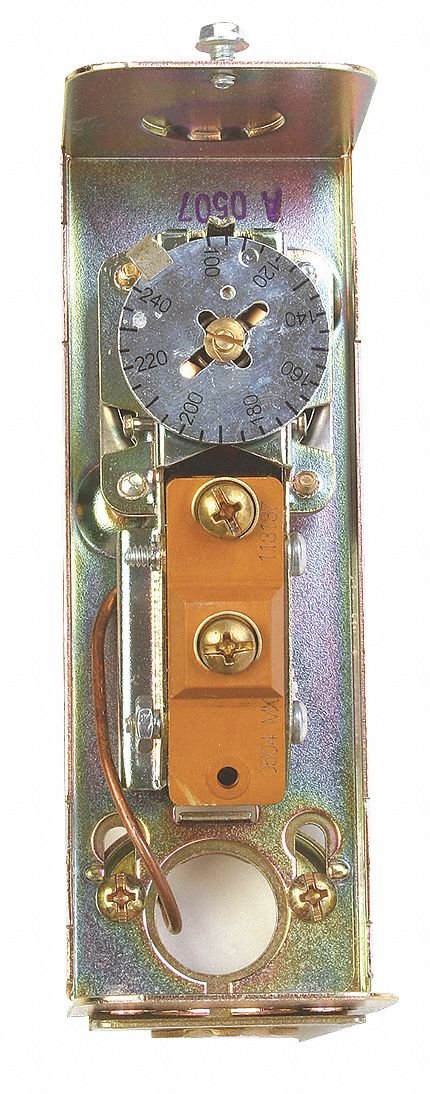

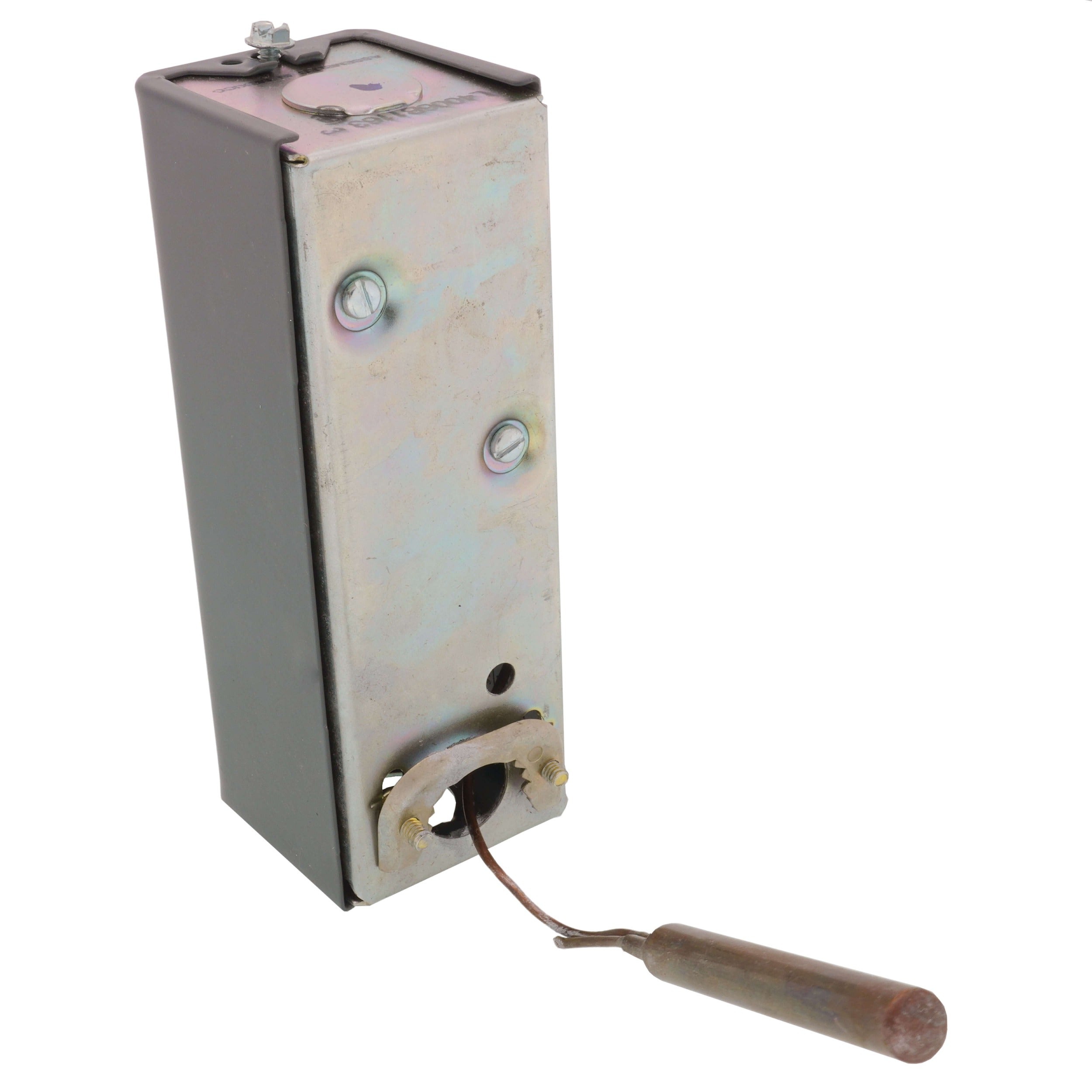

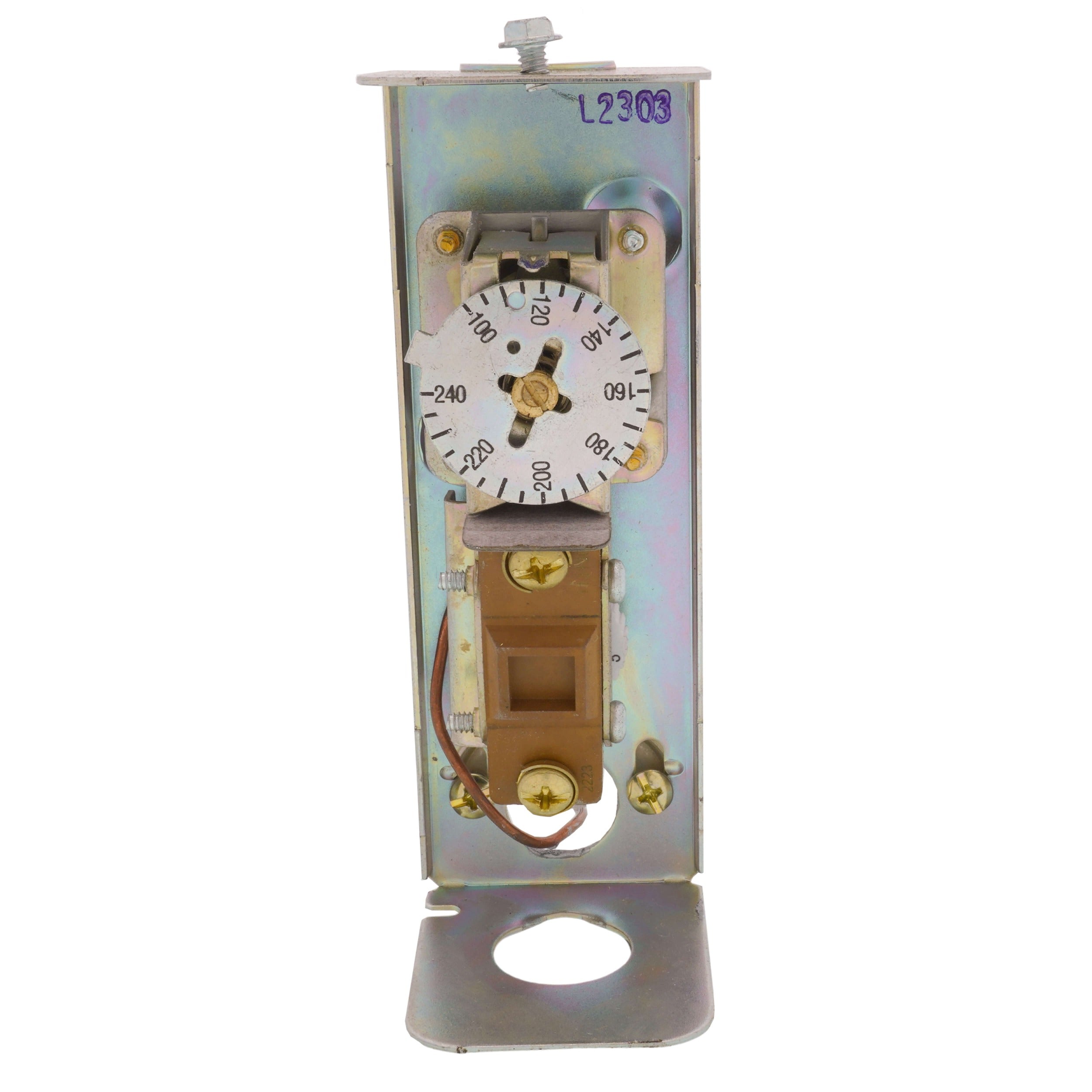

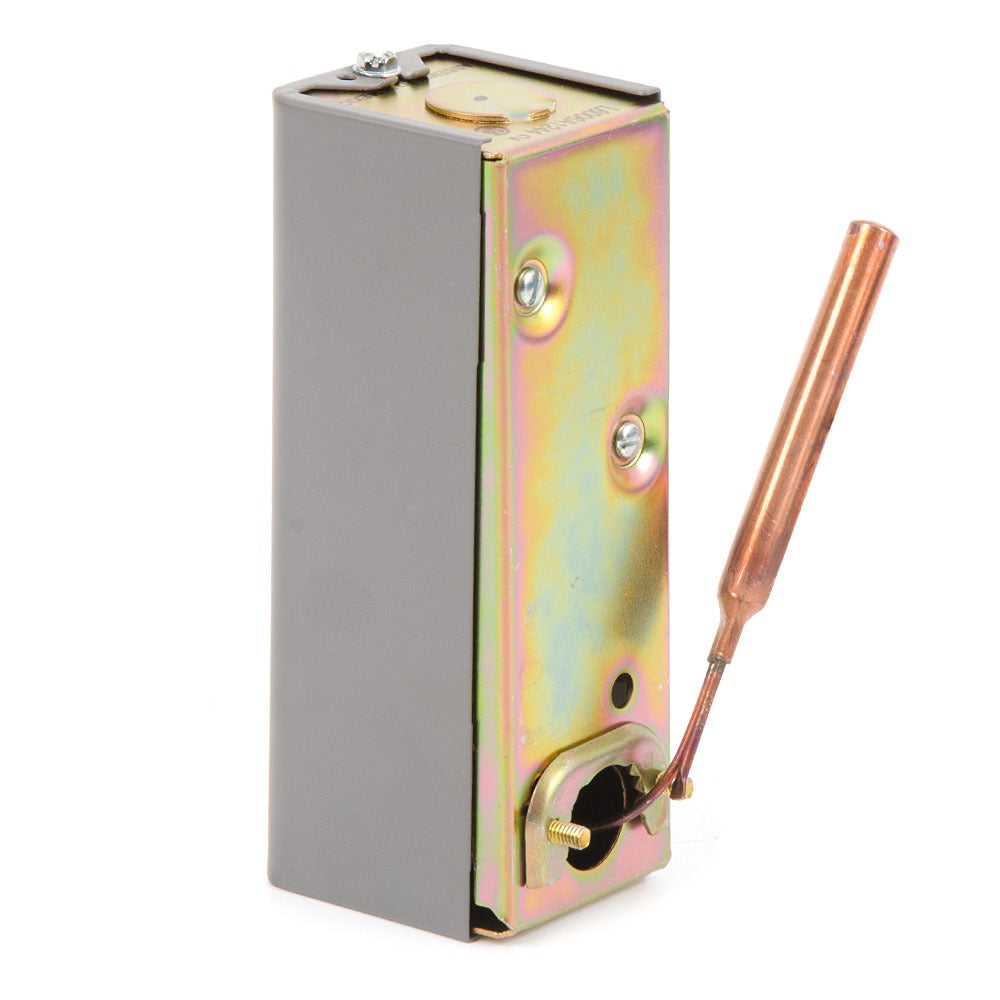

• Sensing bulb 3/8 in x 2-7/8 in with 3 in capillary; horizontal or vertical insertion for direct or well immersion; visible control point scale with external adjustment screw

Product Highlights

Immersion circulator aquastat, 100 to 240 F range, 5 to 30 F adjustable differential; SPST snap-acting micro switches; 3/8 in x 2-7/8 in bulb, 3 in capillary; UL and CSA certified.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: L4006B1163
