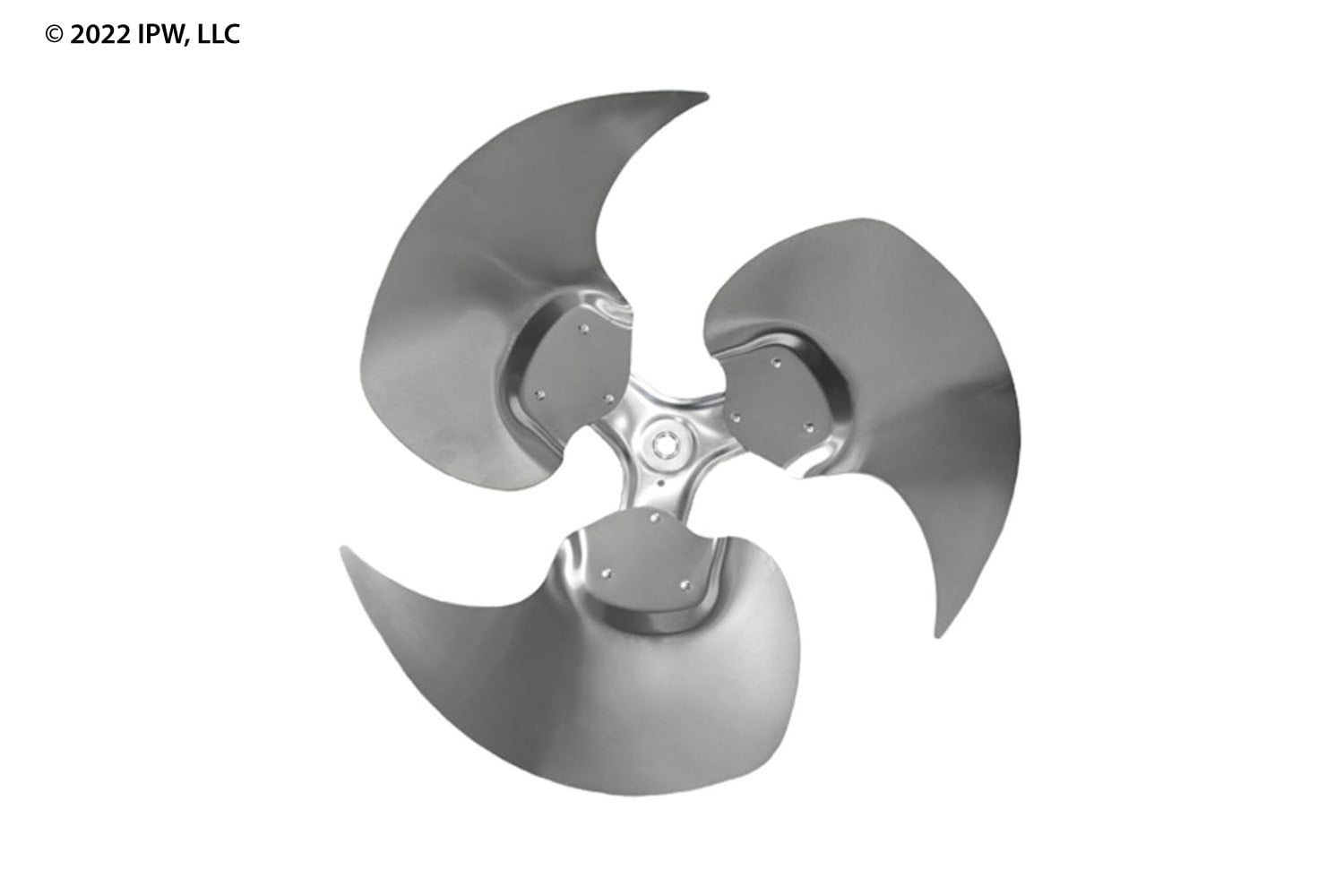

Revcor zs2603-30la-ctn Axial Fan Blade 26 in 3 Blade Ccw

Product Description

The REVCOR zs2603-30la-ctn is a 26-inch axial fan blade designed for use in HVAC condenser and air-handling equipment. Built with three blades set at a 30-degree pitch and a 1/2-inch bore, this blade moves air efficiently at the designed airflow angle. The counterclockwise (CCW) rotation direction makes it suited for specific motor and fan deck configurations where CCW blades are required. HVAC technicians and refrigeration service pros install this blade as a direct replacement in systems that call for this diameter, bore, and pitch combination.

This fan blade is intended for residential and light commercial HVAC applications, typically found in condenser units and evaporator coil sections where axial fan assemblies are standard. The 26-inch diameter fits medium to larger condenser fan decks. The 30-degree blade pitch is a common specification in outdoor condensing unit fan stacks. When replacing a failed or damaged fan blade, matching diameter, bore size, pitch, and rotation direction to the original specification is critical for maintaining proper airflow and system performance.

Key Features

• 26-inch blade diameter for medium to large condenser fan deck applications
• 3-blade configuration at 30-degree pitch for efficient axial airflow
• 1/2-inch bore fits standard condenser fan motor shaft sizes
• Counterclockwise (CCW) rotation direction for correct motor and deck pairing
• OEM-style replacement geometry for straightforward field swaps

Compatibility

Designed as an OEM-style replacement axial fan blade for residential and light commercial HVAC condenser units requiring a 26-inch, 3-blade, 30-degree pitch, 1/2-inch bore, CCW configuration.

Installation Notes

Fan blade replacement is typically performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the fan guard or accessing the fan assembly. Confirm shaft diameter, rotation direction, and blade pitch before installation to avoid airflow reversal or mechanical interference. Ensure the blade hub set screw is properly secured to the motor shaft before restoring power.

Technical Specifications

• Blade Diameter: 26 inches
• Number of Blades: 3
• Blade Pitch: 30 degrees
• Bore Size: 1/2 inch
• Rotation Direction: Counterclockwise (CCW)

Standard Information

• Brand: REVCOR
• Manufacturer Part Number: zs2603-30la-ctn
