Resideo ZD8X8 TrueZONE Rectangular Power Closed Spring Open 2-Wire Zone Damper 8 Inch x 8 Inch 24 VAC 60 Hz 8 VA

Product Description

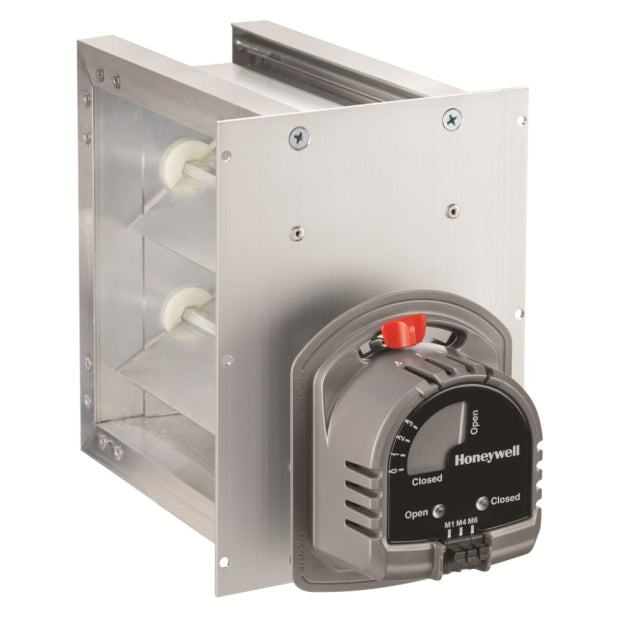

The RESIDEO ZD8X8 TrueZONE Rectangular 2-Wire Zone Damper is a 24 VAC 60 Hz, 8 VA unit designed for circulating air in HVAC systems, particularly in residential applications. This power-closed, spring-open damper features an 8 inch x 8 inch opening and an extruded aluminum frame and blade construction. It is compatible with TrueZONE and other electronic zoning systems, offering precise zone control.

• Mechanical visual position indicator for damper status.
• Constructed with an extruded aluminum frame and blades for durability.
• Features a simple, two-wire installation for ease of use.

Product Highlights

Adjustable minimum and maximum range stops allow for precise airflow control.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD8X8

Technical Specifications

• Opening Dimensions: 8 Inch x 8 Inch
• Overall Dimensions: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Construction Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting: Side
• Motor Power Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque: 71 Inch-Ounce
• Motor Operating Temperature: 40 to 140 Deg F (Ambient)
• Static Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Rotation Angle: 90 Degree
• Air Leakage: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure: 1 Inch WC
• Motor Operation Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Motor Terminal Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Included Features: Mechanical Visual Position Indicator
• Compatibility: TrueZONE and Other Electronic Zoning System
• Typical Application: Circulating Air in HVAC System, Residential
• Actuator Mounting Location: Side Mount
• Wiring Configuration: 2-Wire
• Damper Operation: Power Close, Spring Open
• Damper Shape: Rectangular
• Installation Style: New Construction
