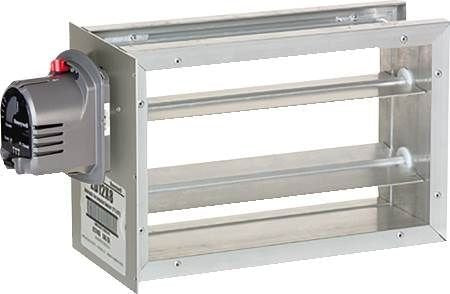

Resideo ZD8X28TZ 8 in x 28 in TrueZONE Rectangular Parallel Blade Damper

Product Description

The Resideo ZD8X28TZ is an advanced 8 inch by 28 inch TrueZONE Rectangular Parallel Blade Damper designed for precise airflow management within heating, cooling, and ventilation systems. This model features a 24-volt motor for efficient control and is specifically engineered for applications requiring normally-open dampers.

• Equipped with Kevlar gearing to significantly enhance durability and extend damper life.
• Includes adjustable range stops and a mechanical visual position indicator for simple monitoring.
• Constructed from solid extruded aluminum for robustness and reliability.

Product Highlights

This damper offers quieter operation with fewer blades, ensuring minimal noise during operation. Its simple two-wire installation process makes it a convenient choice for various zoning systems.

Product Information

Standard Information

• Motor Side: 28 inches side
• Shape: Rectangular

Technical Specifications

• Motor Type: Spring-return
• Voltage: 24 volts
• Features: Adjustable Range Stops, Parallel blade design for low leakage
• Application: Air Quality control within HVAC systems
• Weight: 10.74 lbs
• Installation: Can be installed in any orientation, motor always mounted on the second dimension side
