Resideo ZD8X24TZ 8L x 24H Parallel 2pos24v S/R

Product Description

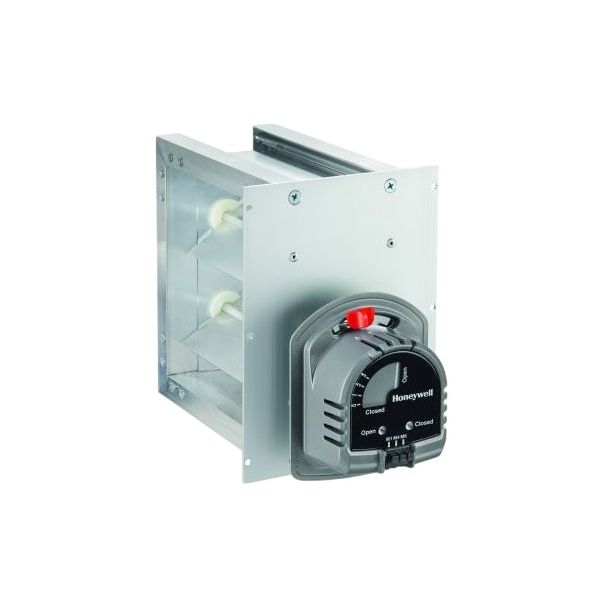

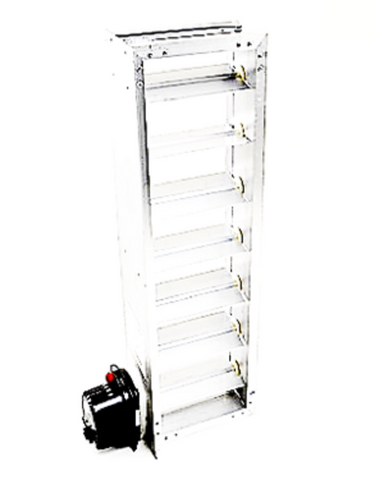

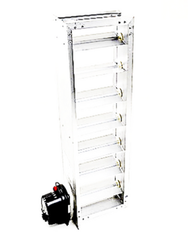

The Resideo ZD8X24TZ is an 8-inch by 24-inch parallel blade damper for HVAC zoning systems, providing accurate airflow control. Constructed from sturdy aluminum, this rectangular damper operates in two positions, open or closed. It features a 24V electric actuator with a spring return mechanism for reliable default positioning. The molded plastic-encased actuator delivers 71 in-oz torque, consumes 8 VA, and withstands media temperatures up to 149°F.

• Accurate airflow control for HVAC zoning systems.
• Sturdy aluminum construction with a 24V electric actuator and spring return mechanism.
• Molded plastic-encased actuator provides 71 in-oz torque, 8 VA power consumption, and 149°F media temperature resistance.

Product Highlights

This 8x24 inch parallel blade zone damper features a 24V electric actuator with spring return, aluminum construction, and two-position control for HVAC airflow management.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD8X24TZ
• Country of Origin: United States

Technical Specifications

• MPN: ZD8X24TZ
• Manufacturer: Resideo
• Actuator Power Consumption: 8 VA
• Mounting Option: Direct Connection
• Blade Type: Parallel
• Input Voltage: 24 VAC
• Operation: Power Closed/Spring Return Open
• Control Type: Two Position
• Damper Type: Parallel Blade Zone Damper
• Motor Type: Synchronous Motor
• Motor Mounting: Mounted on 24 inch Side
• Damper Shape: Rectangular
• Color: Aluminum
• Actuator Housing Material: Molded Plastic
• Actuator Torque: 71 in-oz
• Damper Material: Aluminum
• Activation: Electric
• Blade Material: Aluminum
• Max Media Temperature: 149°F
