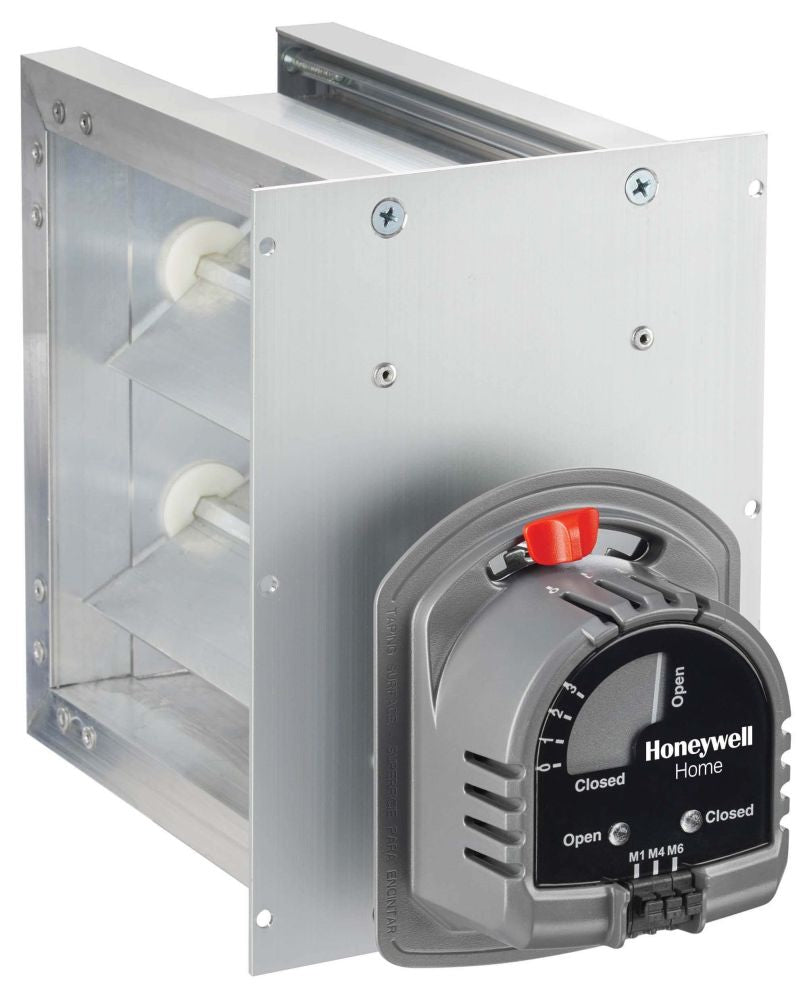

Resideo ZD8X14TZ/U Zone Control Damper 8 Inch x 14 Inch

Product Description

The Resideo ZD8X14TZ/U zone control damper is a rectangular damper designed for HVAC and electronic zoning applications. This unit features a power closed and spring open design, ensuring efficient air control.

• Mechanical visual position indicator to show damper status
• Low leakage parallel blade design
• Simple two-wire installation process

Product Highlights

The damper operates with a 24 Volt AC system and includes a robust 90-degree spring return bottom mount motor.

Product Information

Standard Information

• Type: Parallel Blade, Rectangular, Power Closed/Spring Open
• Brand Name: Resideo

Technical Specifications

• Duct Size: 8 inches x 14 inches
• Blade Material: Extruded Aluminum
• Motor Torque Rating: 71 Inch-Ounce
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Ambient Temperature Rating: 40 to 140 degrees Fahrenheit
• Pressure Drop: 0.0329 Inch WC at 800 Feet per Minute
• Motor Timing: 30 seconds for power open, 10 seconds for spring return
• Leakage: Less than 1% at 0.5 inches WC
• Warranty: 5 Years
• Activation: Electric
• Compatible With: HVAC systems requiring a normally open damper
