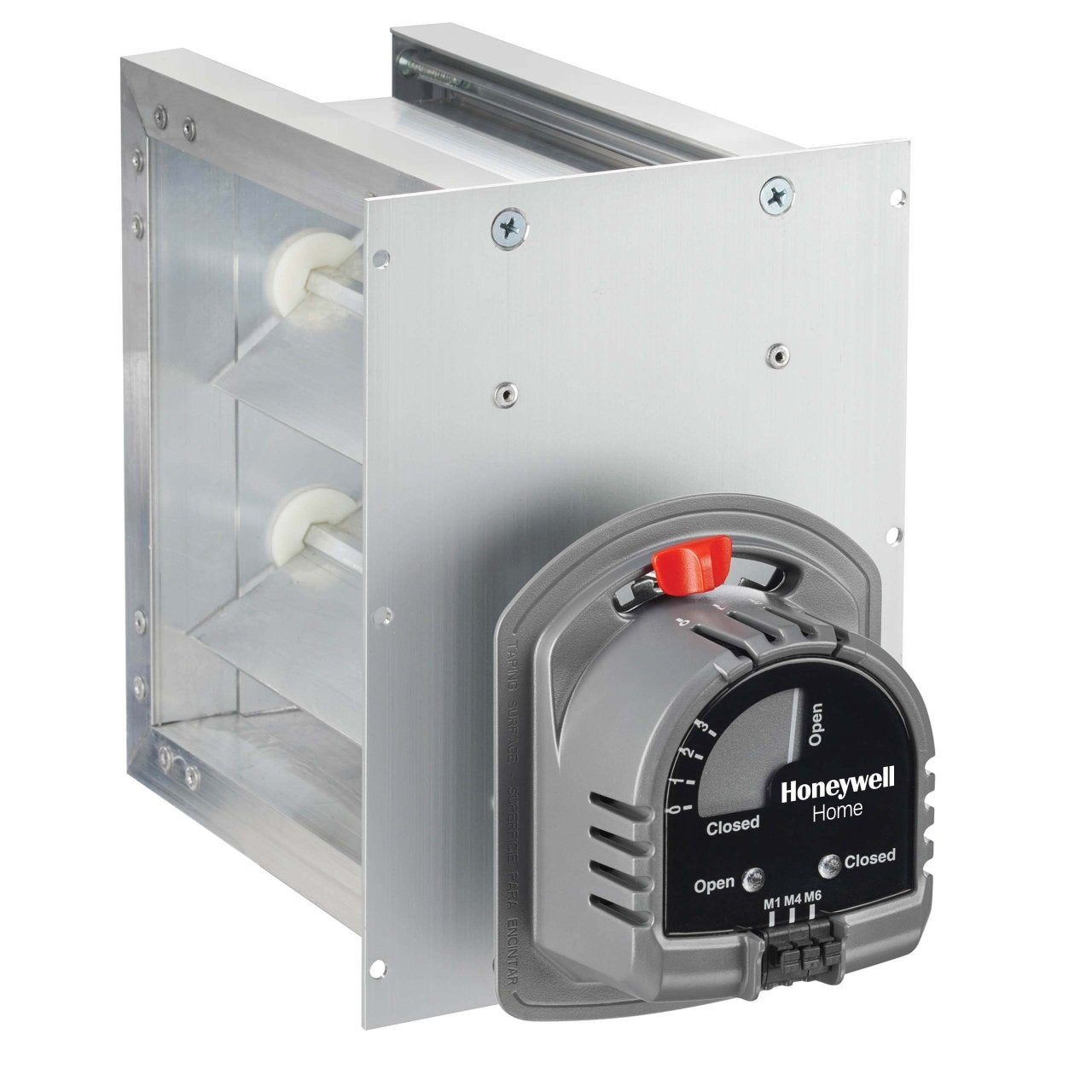

Resideo ZD28X14TZ/U 28 in x 14 in Parallel Blade Damper 24 VAC

Product Description

The RESIDEO ZD28X14TZ/U is an electric parallel blade zone damper designed for controlling circulating air in HVAC systems. This 24 VAC, 8 VA power consumption unit features a 24-volt motor and a power close, spring open mechanism, making it suitable for applications requiring a normally-open damper. It is typically used with Honeywell Home zoning systems.

• Reliable and easy-to-install solution with simple, two-wire installation.
• Features a 24-volt motor for controlling circulating air in HVAC systems.
• Power close and spring open design for normally-open damper applications.

Product Highlights

This RESIDEO ZD28X14TZ/U zone damper offers electric activation, aluminum blades, and for HVAC zoning.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD28X14TZ/U

Technical Specifications

• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Application: Parallel Blade Damper
• Blade Material: Aluminum
• Category: Zoning Dampers
• Compatible With: HVAC systems where a normally-open damper is required
• Damper Material: Aluminum
• Damper Type: Zone
• For Use With: Honeywell Home zoning systems
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops|LED indication light for open and close
• Product Category: Dampers & Actuators
• Product Subcategory: Zoning Dampers
• Range Stop: Yes
• Range Stop Options: 4
• Series: Resideo
• Voltage: 24 VAC
