Resideo ZD28X10TZ/U 28 in x 10 in parallel blade damper 24v

Product Description

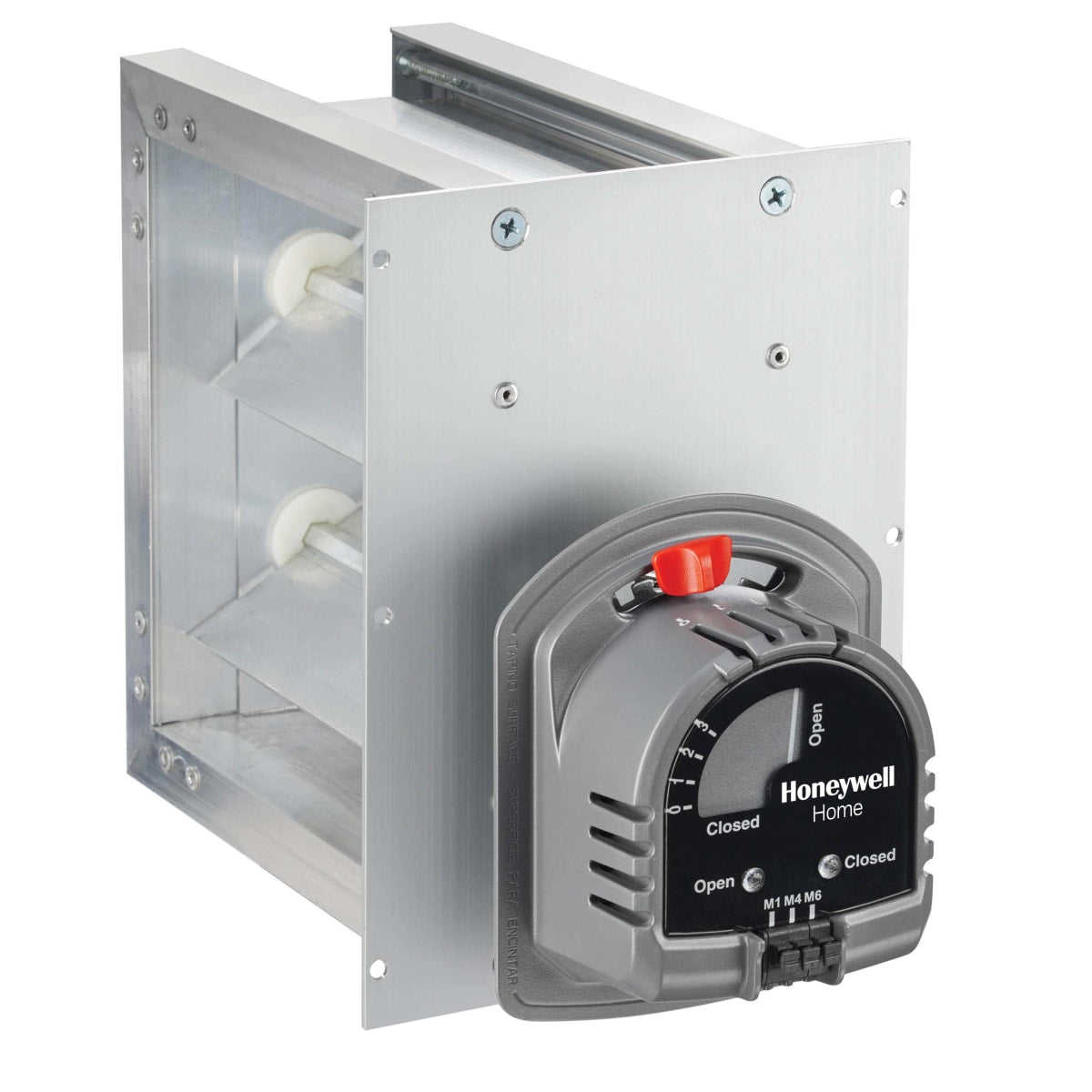

The RESIDEO ZD28X10TZ/U is an electric 24-volt parallel blade damper designed for controlling circulating air in HVAC systems. This easy-to-wire zone damper features a power close and spring open mechanism, making it suitable for applications requiring a normally-open damper. It is typically used with TrueZONE and other electronic zoning systems to manage airflow efficiently.

• Reliable and easy-to-install solution for HVAC zoning systems.
• Easy-to-wire design includes a 24-volt motor for precise air control.
• Features a power close and spring open operation for normally-open damper requirements.

Product Highlights

Reliable, easy-to-install damper with adjustable range stops and visual position indicator for HVAC zoning systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD28X10TZ/U

Technical Specifications

• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Activation: Electric
• Blade Material: Aluminum
• Compatible With: HVAC systems where a normally-open damper is required, TrueZONE and Other Electronic Zoning System
• Damper Type: Zone, Rectangular, Parallel Blade, Power Closed, Spring Open, Supply Air
• Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Leakage: Less than 1% at 0.5 in WC
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Angular Rotation: 90 Degree
• Motor Mounting Type: Side
• Motor Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Temperature Rating: 40 to 140 Deg F (Ambient)
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Number of Wires: 2-Wire
• Opening Size: 28 Inch x 10 Inch
• Overall Size: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Position Indicator Included: Yes
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Range Stop: Yes
• Range Stop Options: 4
• Wires to Motor Terminal: M1-Power, M6 Common, M4 (Optional) LED Indication
• Application: Circulating Air in HVAC System, Residential
