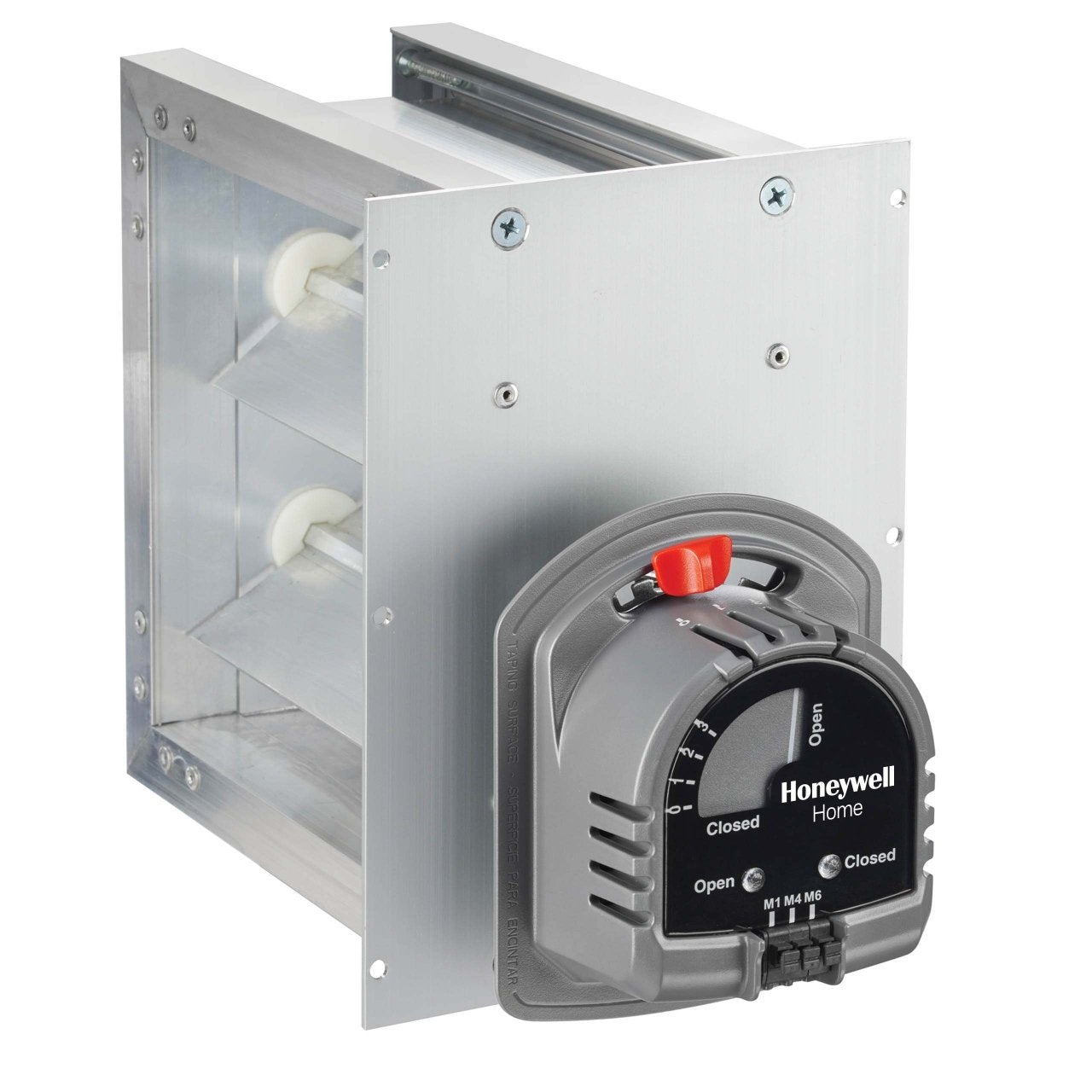

Resideo ZD22X16TZ/U parallel blade damper 24-volt 22 in x 16 in

Product Description

The RESIDEO ZD22X16TZ/U is an electric parallel blade damper designed for HVAC systems, featuring a 24-volt motor to control circulating air. This easy-to-wire, power-close and spring-open damper is ideal for applications requiring a normally-open position, commonly integrated with TrueZONE® and other electronic zoning systems. It ensures efficient air distribution with less than 1% leakage at 0.5 in WC.

• Easy-to-wire design with a 24-volt motor for efficient operation.
• Power-close and spring-open functionality for normally-open applications.
• Controls circulating air in HVAC and electronic zoning systems.

Product Highlights

Reliable and easy-to-install solution for HVAC air control.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD22X16TZ/U
• Country of Origin: N/A

Technical Specifications

• Color: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Activation: Electric
• Range Stop: Yes
• Application: Parallel Blade Damper
• Damper Type: Zone
• For Use With: Honeywell Home zoning systems
• Actuator Torque: 71 in-oz
• Compatible With: HVAC systems where a normally-open damper is required
• Damper Material: Aluminum
• Range Stop Options: 4
• Position Indicator Type: Damper Position Range Stops|LED indication light for open and close
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Position Indicator Included: Yes
• Input Voltage: 24 Volts
