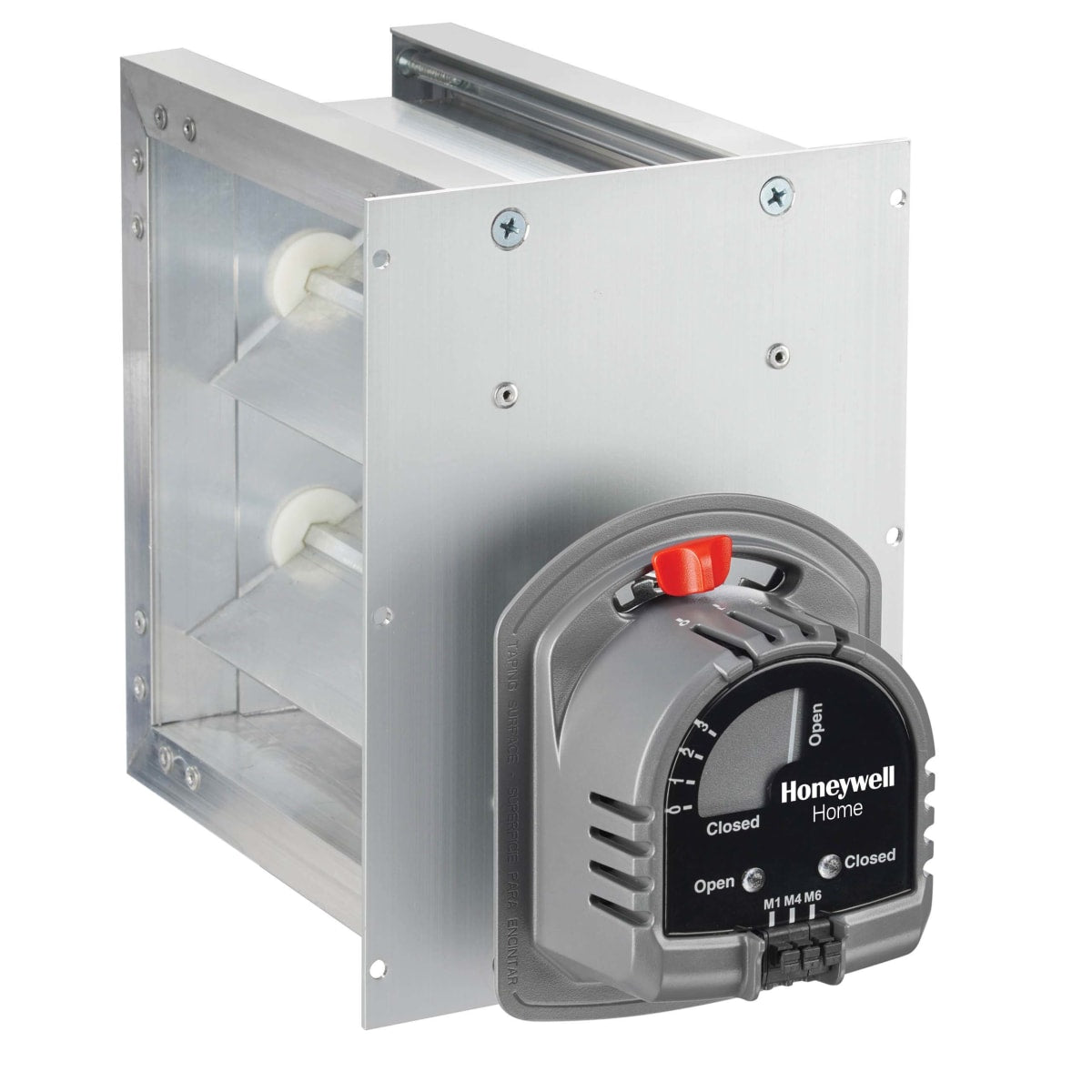

Resideo ZD22X14TZ/U 22 in x 14 in parallel blade damper 24-volt

Product Description

The RESIDEO ZD22X14TZ/U is a 22 in x 14 in parallel blade zone damper for HVAC systems. This easy-to-wire damper includes a 24-volt motor, providing power close and spring open functionality for normally-open damper applications. It is typically used with Honeywell Home TrueZONE� and other electronic zoning systems, ensuring efficient air circulation control with less than 1% leakage at 0.5 in WC. The aluminum damper material and molded plastic actuator housing contribute to its robust design.

• Reliable and easy-to-install solution for HVAC systems.
• Features a 24-volt motor with power close and spring open operation.
• Compatible with TrueZONE� and other electronic zoning systems.

Product Highlights

This RESIDEO ZD22X14TZ/U damper offers precise air control with a 24-volt motor, aluminum blades, and low leakage, ideal for zone-controlled HVAC applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD22X14TZ/U

Technical Specifications

• Color: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Activation: Electric
• Range Stop: Yes
• Application: Parallel Blade Damper
• Damper Type: Zone
• For Use With: Honeywell Home zoning systems
• Actuator Torque: 71 in-oz
• Compatible With: HVAC systems where a normally-open damper is required
• Damper Material: Aluminum
• Range Stop Options: 4
• Position Indicator Type: Damper Position Range Stops|LED indication light for open and close
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Position Indicator Included: Yes
• Input Voltage: 24V
