Resideo ZD20X10 Parallel Blade Zone Damp 24 VAC 60 Hz 8 VA 20x10

Product Description

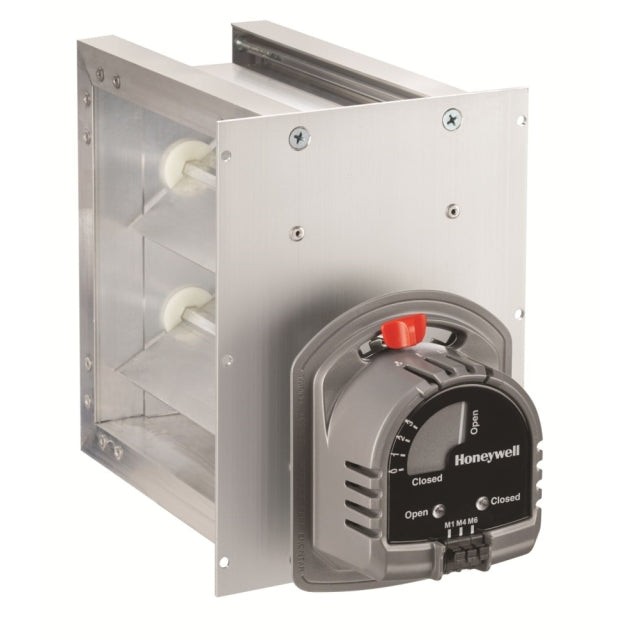

The RESIDEO ZD20X10 is a rectangular, parallel blade zone control damper designed for circulating air in HVAC systems. This power-closed, spring-open damper operates on 24 VAC 60 Hz with an 8 VA motor, making it suitable for residential applications. It features an extruded aluminum frame and blades, ensuring solid construction and low leakage performance. The damper has an opening size of 20 inches x 10 inches and is compatible with TrueZONE and other electronic zoning systems.

• Mechanical Visual Position Indicator for Damper Status.
• Solid Construction Using Extruded Aluminum Frame and Blades.
• Parallel Blade Design for Low Leakage Performance.

Product Highlights

This zone control damper offers reliable 24 Volt spring return motor operation and can be installed in any orientation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD20X10

Technical Specifications

• Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Opening Size: 20 Inch x 10 Inch
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Side
• Motor Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque: 71 Inch-Ounce
• Motor Temperature Rating: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Features: Mechanical Visual Position Indicator
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Shape: Rectangular
• Style: New Construction
• Damper Function Type: Supply Air Damper
