Resideo ZD18X8TZ 18L X 8H Parallel 2pos24v S/R

Product Description

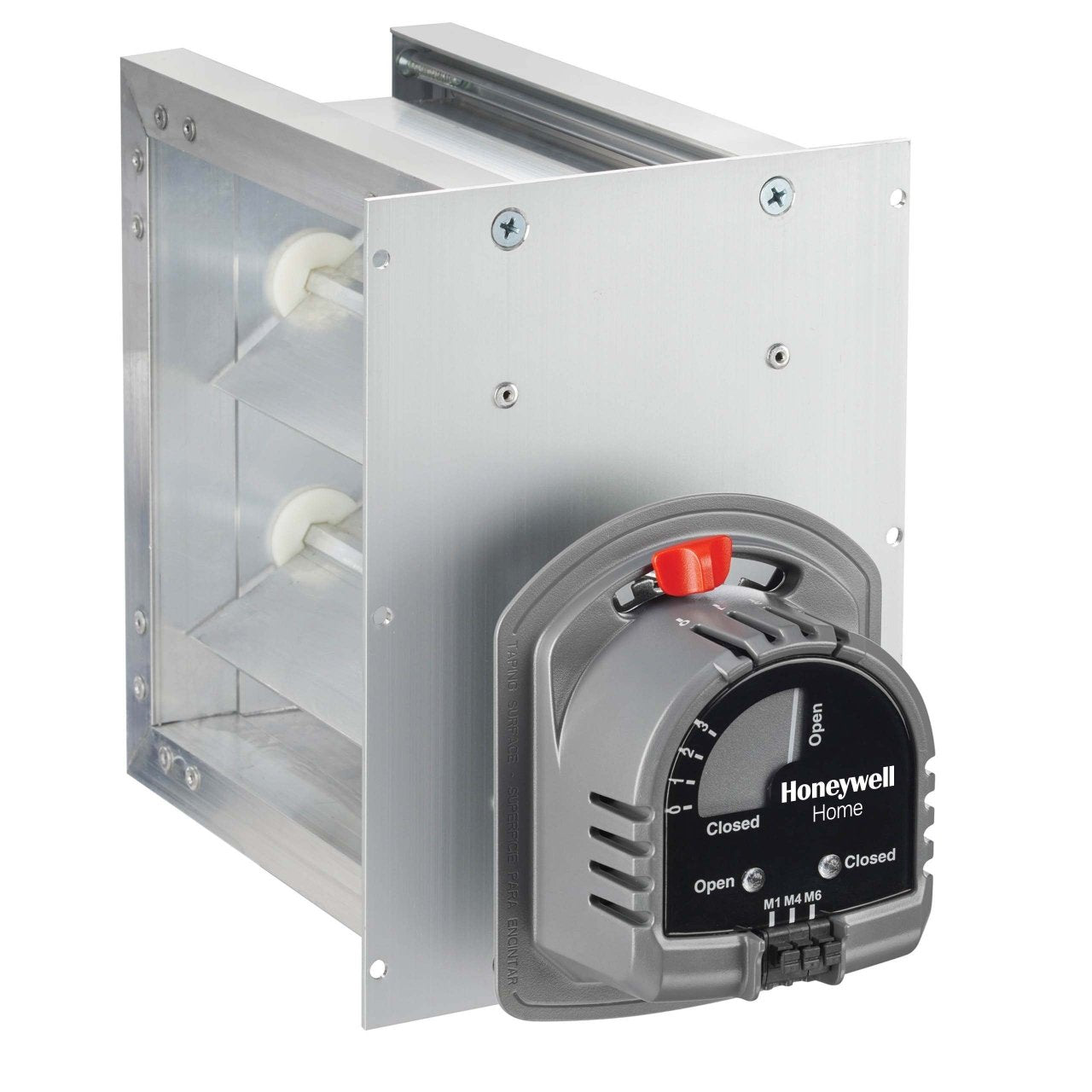

The RESIDEO ZD18X8TZ 18L X 8H Parallel 2pos24v S/R is designed for use in HVAC systems to control circulating air. This damper features adjustable range stops, a mechanical position indicator, and push-in terminals for easy wiring. It operates on 24V and is typically used with TrueZONE and other electronic zoning systems.

• Easy to set adjustable range stops with a push-in lever.
• Mechanical position indicator allows easy viewing through a clear window.
• LED indicator lights show damper position (Red: damper is closed, Green: open).

Product Highlights

The ZD18X8TZ zoning damper is designed for technician-friendly installation and reliable performance in HVAC zoning applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD18X8TZ

Technical Specifications

• Product Category: Thermostats and Controls
• Type: Zoning Damper
• Product Line: ZD
• Voltage Type: 24
• Normal Position: Open
• Product Height: 8 Inches
• Product Width: 18 Inches
• Damper Duct Shape Type: Rectangular
• Damper Type: Zone
• Application: Parallel Blade Damper
• Damper Material: Aluminum
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
