Resideo ZD18X8 Parallel Blade Zone Damp 24 VAC 60 Hz 8 VA 18x8

Product Description

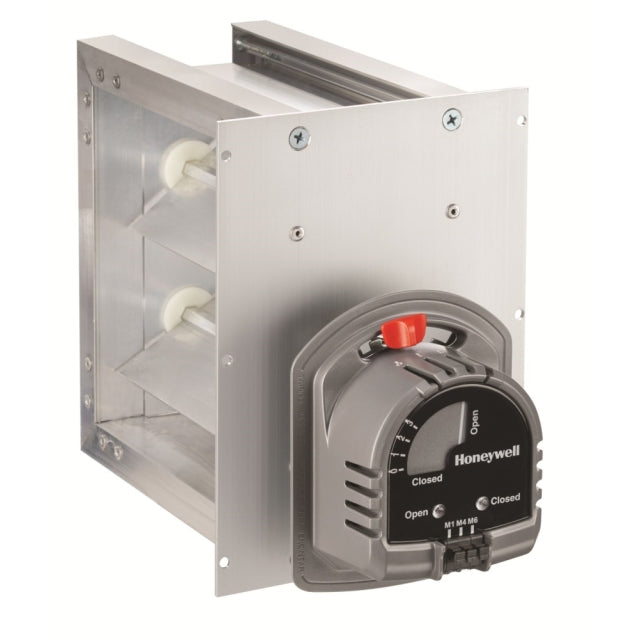

The RESIDEO ZD18X8 is a rectangular, parallel blade zone control damper designed for circulating air in residential HVAC systems. This power-closed, spring-open unit operates on 24 VAC 60 Hz with an 8 VA motor rating. Its 18 inch x 8 inch opening size and extruded aluminum construction ensure efficient zone control and low leakage performance, making it suitable for various electronic zoning systems.

• Solid construction using extruded aluminum frame and blades.
• Simple, easy-to-wire, two-wire installation.
• Fail-safe, normally open operation with a reliable 24 Volt spring return motor.

Product Highlights

Features a mechanical visual position indicator and LED indication for open/close status, with adjustable damper position range stops.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD18X8

Technical Specifications

• Damper Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Opening Size: 18 Inch x 8 Inch
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Side
• Motor Power Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque: 71 Inch-Ounce
• Motor Operating Temperature: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Max Static Pressure: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Associated Brand: Honeywell
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Operation Mode: Power Close, Spring Open
• Shape: Rectangular
• Style: New Construction
• Indicator Type: LED
