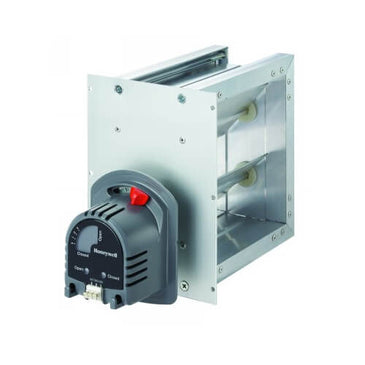

Resideo ZD18X18TZ 18L X 18H Parallel 2pos24v S/R

Product Description

The Resideo ZD18X18TZ is a 18L x 18H parallel 2pos24v S/R device designed for industrial applications. Its sturdy construction and reliable performance make it an ideal choice for demanding environments. This damper includes a 24V motor used to control circulating air in HVAC systems.

• 18L x 18H dimensions
• Parallel 2pos24v S/R configuration
• Robust construction for durability
• Engineered for industrial applications

Product Highlights

The Resideo ZD18X18TZ is ideal for industrial machinery, material handling, manufacturing processes and HVAC systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD18X18TZ
• Country of Origin: US

Technical Specifications

• Item Number: ZD18X18TZ
• Brand: Resideo
• Damper Duct Shape Type: Square
• Damper Type: Zone
• Application: Parallel Blade Damper
• Damper Material: Aluminum
• Warranty: 5 Years
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Blade Type: Parallel
