Resideo ZD18X10 parallel blade zone damp 24 vac 18x10

Product Description

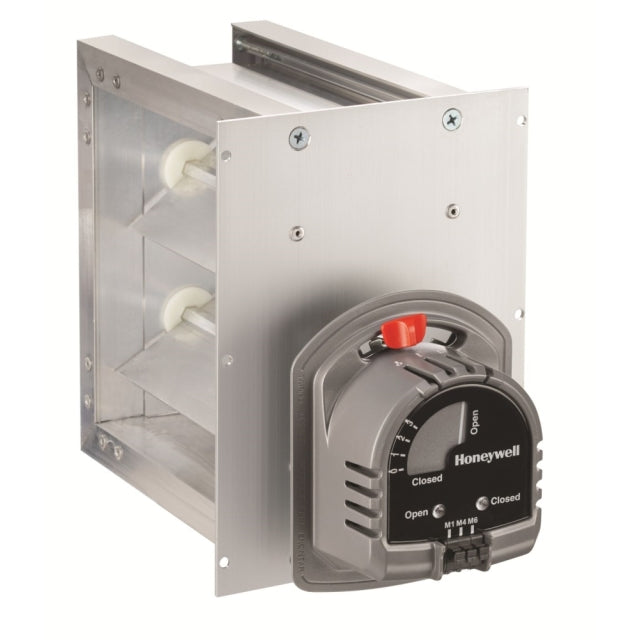

The Resideo ZD18X10 is a rectangular, parallel blade zone control damper designed for circulating air in HVAC systems, particularly in residential applications. This 18 inch x 10 inch damper operates on 24 VAC 60 Hz with an 8 VA motor rating, featuring a power closed, spring open mechanism. Constructed with an extruded aluminum frame and blades, it ensures durability and low leakage performance, less than 1 percent at 1/2 inch WC. It is compatible with TrueZONE and other electronic zoning systems.

• Mechanical Visual Position Indicator for Damper Status
• Solid Construction Using Extruded Aluminum Frame and Blades
• Parallel Blade Design for Low Leakage Performance

Product Highlights

Durable extruded aluminum construction, 24 VAC operation, and a mechanical visual position indicator for reliable zone control.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD18X10

Technical Specifications

• Damper Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Opening Size: 18 Inch x 10 Inch
• Overall Dimensions: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Side
• Input Voltage: 24 VAC 60 Hz
• Power Consumption: 8 VA
• Motor Torque Rating: 71 Inch-Ounce
• Motor Temperature Rating: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage Rate: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Motor Terminal Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Visual Position Indicator: Mechanical
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Number of Wires: 2
• Damper Style: New Construction
• LED Indicator Type: LED
