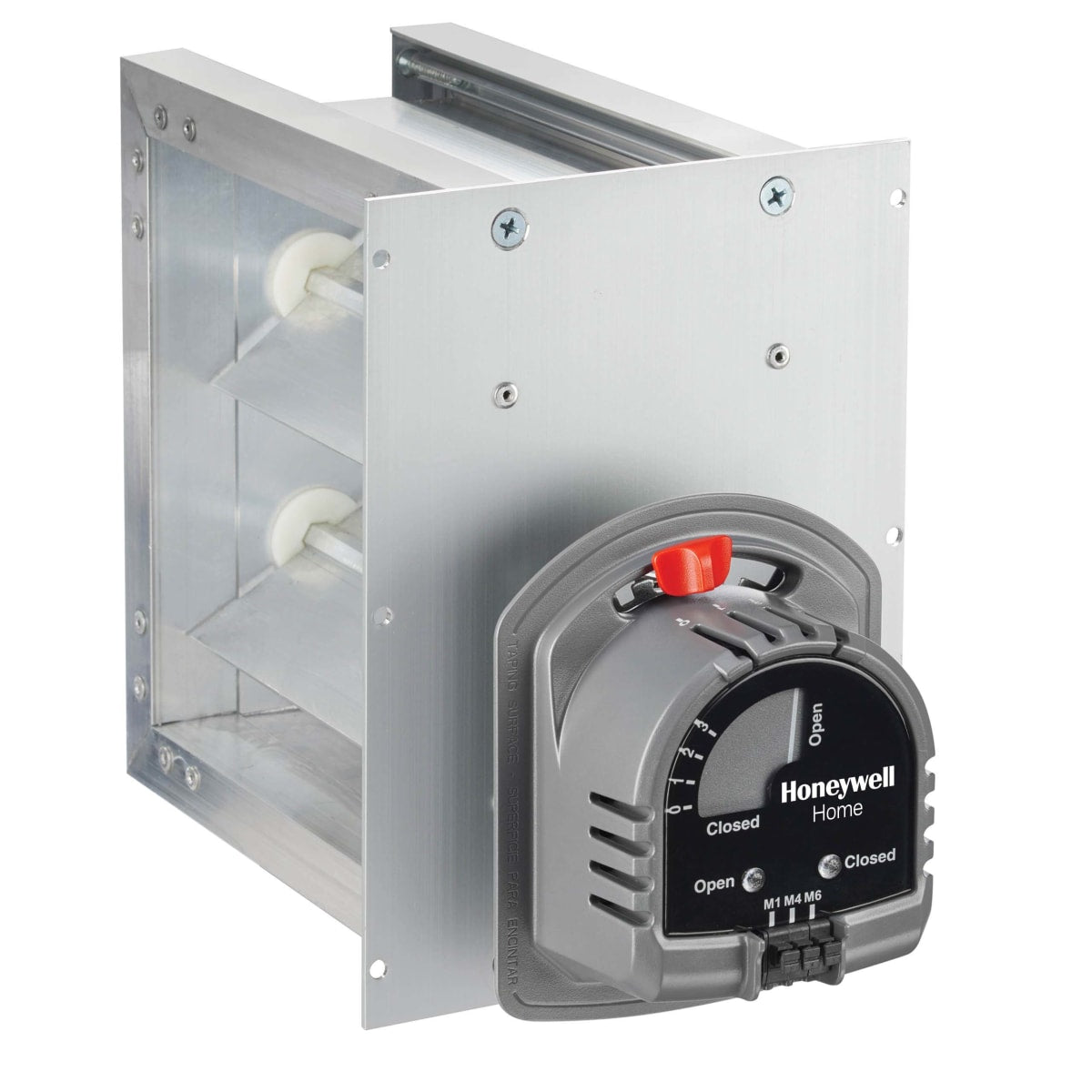

Resideo ZD14X28TZ/U 14 in x 28 in Parallel Blade Damper 24-volt

Product Description

The RESIDEO ZD14X28TZ/U is a 14 in x 28 in parallel blade zone damper designed for precise control of circulating air in HVAC systems. This electric damper features a 24-volt motor, enabling power close and spring open operation, making it suitable for applications requiring a normally-open damper. It is typically used with TrueZONE and other electronic zoning systems, with an actuator power consumption of 8 VA.

• Easy-to-wire design facilitates straightforward installation in HVAC systems.
• Features a 24-volt motor for reliable power close and spring open functionality.
• Compatible with TrueZONE and other electronic zoning systems for air control.

Product Highlights

Controls circulating air in HVAC systems with a 24-volt power close, spring open mechanism.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD14X28TZ/U

Technical Specifications

• Leakage: Less than 1% at 0.5 in WC
• Activation Type: Electric
• Range Stop Feature: Yes
• Damper Application: Parallel Blade Damper
• Damper Type: Zone
• Compatibility: Honeywell Home zoning systems, HVAC systems where a normally-open damper is required
• Blade Material: Aluminum
• Actuator Torque: 71 in-oz
• Damper Material: Aluminum
• Range Stop Options: 4
• Position Indicator: Damper Position Range Stops, LED indication light for open and close
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Input Voltage: 24 Volts
