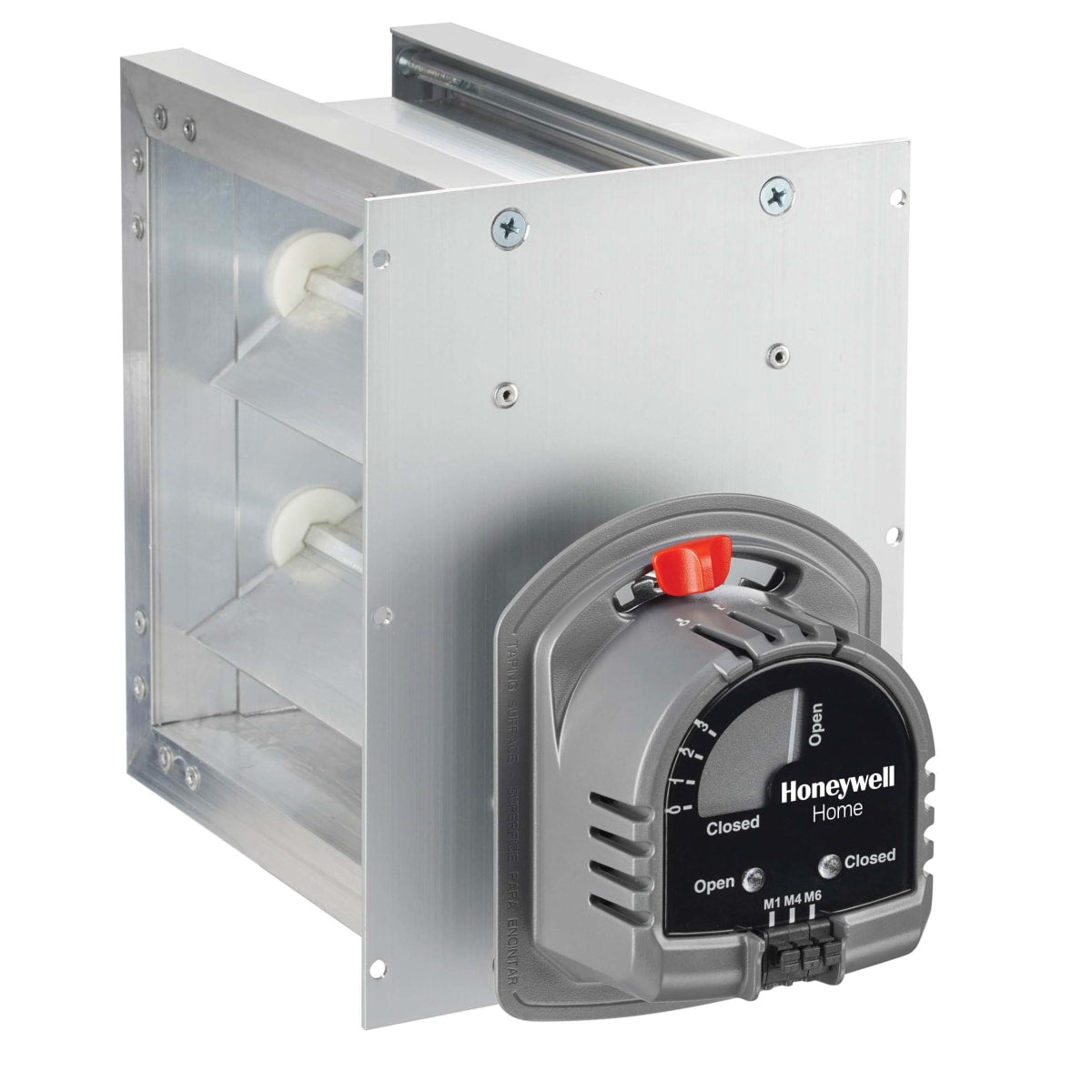

Resideo ZD14X26TZ/U 14 in x 26 in Parallel Blade Damper 24V

Product Description

The RESIDEO ZD14X26TZ/U is an electric parallel blade damper designed for controlling circulating air in HVAC systems. This 24-volt, power-close and spring-open damper is ideal for applications requiring a normally-open damper. It features an aluminum blade and damper material, with an actuator torque of 71 in-oz and a power consumption of 8 VA. It is typically used with TrueZONE and other electronic zoning systems.

• Reliable and easy-to-install solution for HVAC systems.
• Easy-to-wire design with a 24-volt motor for air control.
• Power close and spring open functionality for normally-open damper requirements.

Product Highlights

Electric parallel blade damper for HVAC zoning systems, featuring 24V operation and aluminum construction.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD14X26TZ/U

Technical Specifications

• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Application: Parallel Blade Damper
• Blade Material: Aluminum
• Color: Aluminum
• Compatible With: HVAC systems requiring normally-open damper
• Damper Material: Aluminum
• Damper Type: Zone
• For Use With: Honeywell Home zoning systems
• Input Voltage: 24V
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
