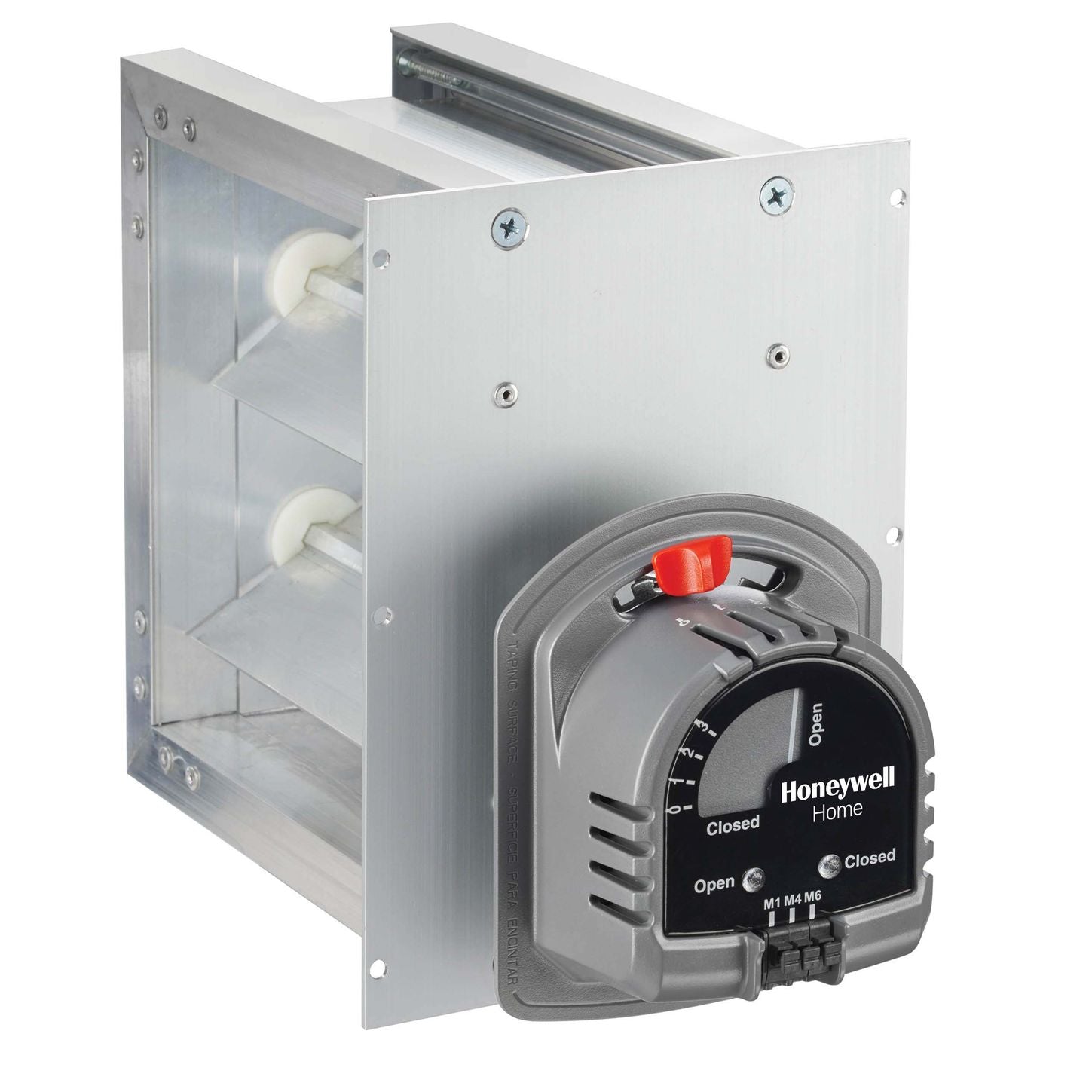

Resideo ZD12X22TZ/U 12 in x 22 in Parallel Blade Damper

Product Description

The RESIDEO ZD12X22TZ/U is an easy-to-wire damper that includes a 24-volt motor used to control circulating air in HVAC systems. The ZD is a power close and spring open damper used when a normally-open damper is required and is typically used with TrueZONE® and other electronic zoning systems.

• Less than 1% leakage at 0.5 in WC
• Compatible with HVAC systems where a normally-open damper is required
• Easy-to-install solution

Product Highlights

This parallel blade damper is designed for use with Honeywell Home zoning systems. It features a 24V motor, aluminum blades, and a molded plastic actuator housing.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD12X22TZ/U

Technical Specifications

• Color: Aluminum
• Leakage: Less than 1% at 0.5 in WC
• Warranty: 5 Years
• Activation: Electric
• Application: Parallel Blade Damper
• Damper Type: Zone
• For Use With: Honeywell Home zoning systems
• Blade Material: Aluminum
• Actuator Torque: 71 in-oz
• Compatible With: HVAC systems where a normally-open damper is required
• Damper Material: Aluminum
• Position Indicator Type: Damper Position Range Stops|LED indication light for open and close
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Position Indicator Included: Yes
• Box Quantity: 1
• Damper Size: 12 x 22 or 22 x 12
• Manufacturer: Resideo
• Manufacturer Part Number: ZD12X22TZ/U
• Shape: Rectangular
• UPC: 085267526531
• MPN: ZD12X22TZ
