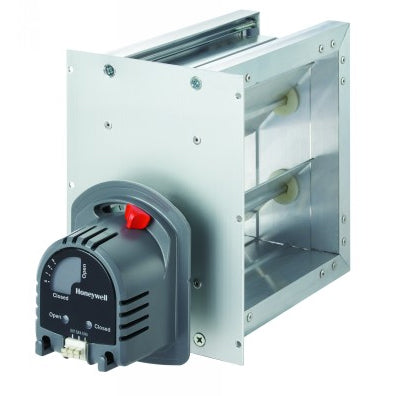

Resideo ZD12X20TZ 12 in. x 20 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Resideo ZD12X20TZ is a twelve inches by twenty inches TrueZONE rectangular parallel blade damper. This product features a twenty-four volt motor, which is designed to manage the circulation of air in heating, cooling, and ventilation systems.

• Kevlar gearing reduces wear for increased durability.
• Fail-safe spring return operation.
• Compatible with conventional and networked zoning.

Product Highlights

This damper can be used in various applications, including air quality control and electronic zoning systems.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Number: ZD12X20TZ

Technical Specifications

• Dimensions: 20.5 inches length, 25 inches width, 6.5 inches height
• Shipping Weight: 9 pounds
• Power: 24 volts
• Motor Type: Spring Return
• Material: Aluminum frame and blades
• Installation Type: Can be installed in any orientation
• Additional Features: Adjustable range stops, mechanical visual position indicator
