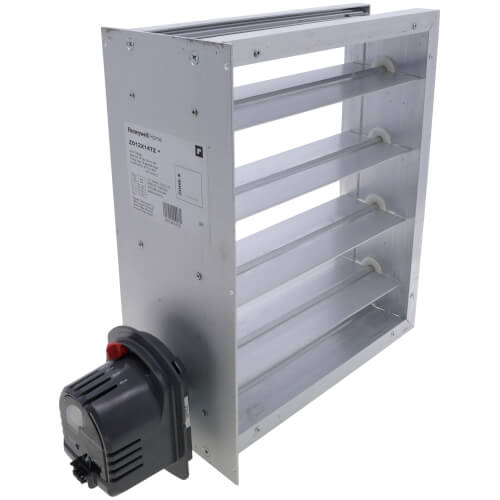

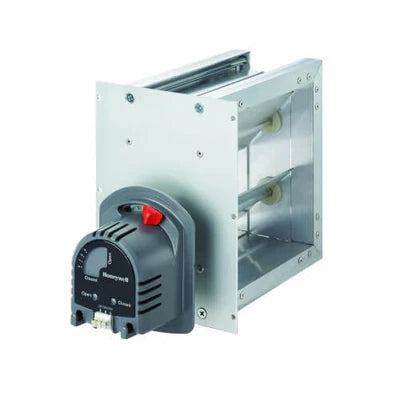

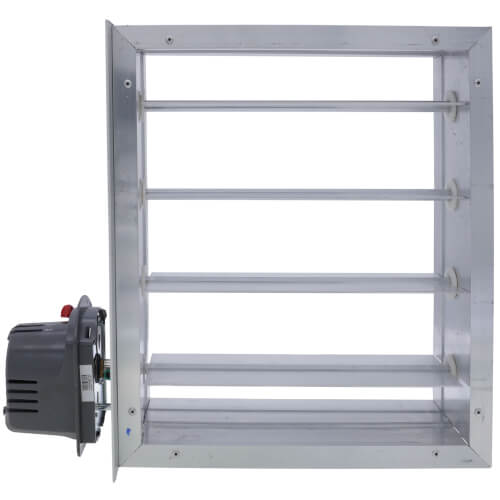

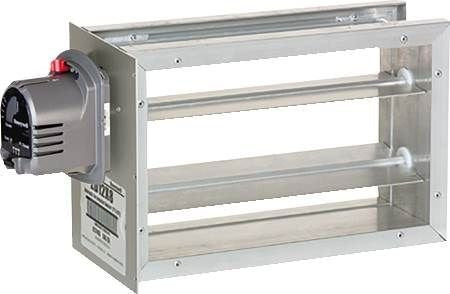

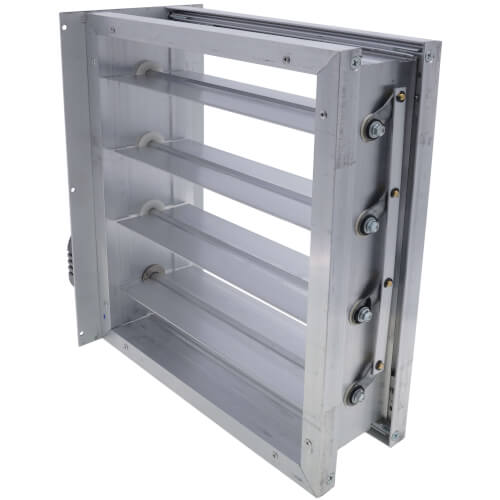

Resideo ZD12X14TZ 12L x 14H PAR.2-POS S/R 24V Pneumatic Actuator

Product Description

The Resideo ZD12X14TZ damper features a 24-volt motor designed to control circulating air efficiently across HVAC systems. This unit is well-suited for industrial control applications, particularly when a normally-open damper is necessary.

• Compact design reduces installation footprint.
• Durable aluminum construction ensures longevity.
• 24V spring return motor provides robust, reliable performance.

Product Highlights

Known for its adjustable range stops and Kevlar gearing, the ZD12X14TZ doubles the lifespan of the damper, making it a valuable addition to any HVAC system. It features fewer blades, which contributes to quieter operation. The solid extruded aluminum frame and blades offer a low leakage parallel blade design, enhancing overall system efficiency.

Product Information

Standard Information

• Brand: Resideo
• Weight: 7 pounds (approximately)

Technical Specifications

• Motor Type: 24V spring return
• Dimensions: 12 inches by 14 inches
• Mounting Orientation: Versatile, can be installed in any position
• Compatibility: Compatible with conventional and networked zoning systems
