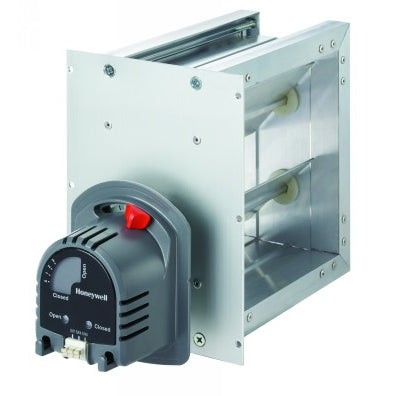

RESIDEO ZD10X24TZ 10L X 24H PAR.2-POS S/R 24V DAMPER

Product Description

The Resideo ZD10X24TZ Damper is engineered to regulate air flow within HVAC systems, ensuring optimal performance. It features a 24-volt motor that powers the damper close and allows it to spring open, making it essential for systems requiring a normally-open setup.

• Designed with Kevlar gearing to enhance durability and extend lifespan.
• Equipped with adjustable range stops for customized operation.
• Features a mechanical visual position indicator for easy monitoring of damper status.

Product Highlights

This damper is built with an extruded aluminum frame and blades, ensuring robust construction and reliability. Its parallel blade design minimizes leakage, contributing to efficient system operation. The installation process is straightforward, requiring only a simple two-wire setup.

Product Information

Standard Information

• Material: Aluminum and Kevlar components
• Motor Type: 24-volt spring-return
• Operation: Power close, spring open

Technical Specifications

• Size: 10 inches by 24 inches
• Pressure Range: 0-150 PSI
• Temperature Range: -40°F to 180°F
• IP Rating: IP65
