Resideo ZD10X20TZ 10L x 20H par.2-pos s/r 24V

Product Description

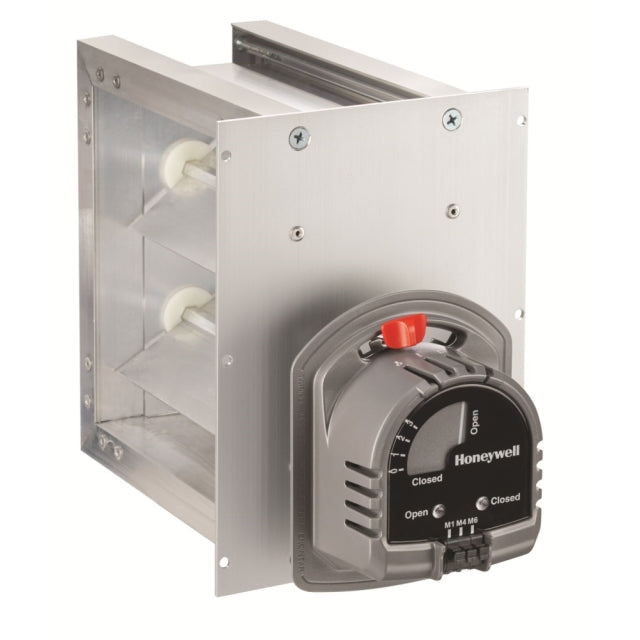

The RESIDEO ZD10X20TZ is a 10-inch by 20-inch parallel blade zone damper designed for HVAC systems. It operates at 24V AC, featuring a power-closed and spring-open mechanism for two-position control. This rectangular damper is constructed with an extruded aluminum frame and blades, ensuring durability and efficient air circulation. It is suitable for residential applications and integrates with TrueZONE and other electronic zoning systems.

• Parallel blade design for efficient zone control.
• Operates at 24V AC with power-closed, spring-open functionality.
• Constructed with an extruded aluminum frame and blades.

Product Highlights

Rectangular zone damper with parallel blades, 24V operation, and power-closed, spring-open mechanism.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD10X20TZ
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Resideo
• Manufacturer Abbreviation: HW
• Country of Origin: Mexico
• Damper Type: Rectangular, Parallel Blade, Power Closed, Spring Open, Supply Air Damper
• Opening Dimensions: 10 Inch x 20 Inch
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Bottom
• Input Voltage: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque Rating: 71 Inch-Ounce
• Operating Temperature: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Indicator Type: LED
• Motor Type: Synchronous Motor
• Operation: Two Position
