Resideo ZD10X20 Parallel Blade Zone Damper Truezone 24 VAC 8 VA 10x20

Product Description

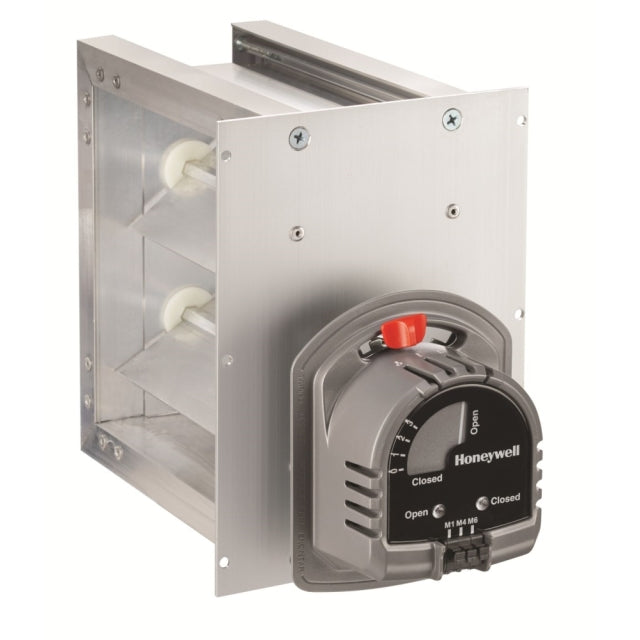

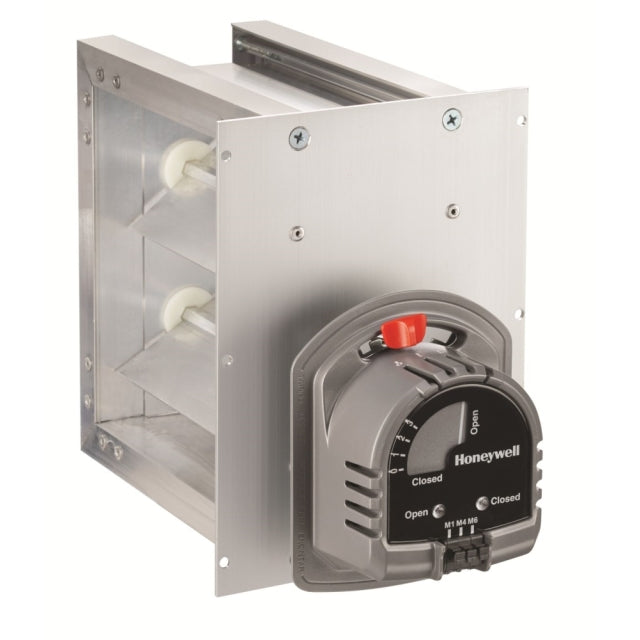

The RESIDEO ZD10X20 is a rectangular, parallel blade, power closed, spring open zone control damper designed for circulating air in residential HVAC systems. It features an extruded aluminum frame and blades, operates on 24 VAC 60 Hz with 8 VA, and has a 10 inch x 20 inch opening size. This damper is compatible with TrueZONE and other electronic zoning systems, offering precise air regulation.

• Mechanical Visual Position Indicator for Damper Status
• Solid Construction Using Extruded Aluminum Frame and Blades
• Parallel Blade Design for Low Leakage Performance

Product Highlights

This zone control damper offers precise air regulation with a durable extruded aluminum construction, low leakage design, and a visual position indicator for easy monitoring in HVAC systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD10X20

Technical Specifications

• Damper Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Opening Size: 10 Inch x 20 Inch
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Bottom
• Motor Power Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque: 71 Inch-Ounce
• Motor Operating Temperature: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage Rate: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Motor Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Shape: Rectangular
• Style: New Construction
• Indicator Type: LED
• Recommended Use: Ventilation
• OEM Part Number: ZD10X20TZ
• Gearing Material: Kevlar
• Operation Mode: Fail-safe, normally open
