Resideo ZD10X18 parallel blade zone damp 24 vac 60 hz 8 va 10x18

Product Description

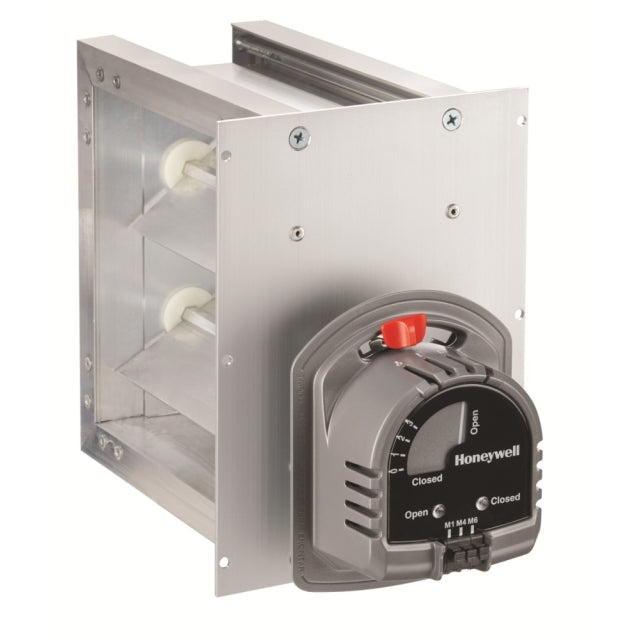

The RESIDEO ZD10X18 is a rectangular parallel blade zone control damper designed for circulating air in residential HVAC systems. Constructed with an extruded aluminum frame and blades, it operates at 24 VAC 60 Hz with an 8 VA motor. This power-closed, spring-open damper features a 10x18 inch opening, ensuring efficient air regulation.

• Mechanical Visual Position Indicator for Damper Status
• Solid Construction Using Extruded Aluminum Frame and Blades
• Parallel Blade Design for Low Leakage Performance

Product Highlights

Rectangular parallel blade zone damper with 24 VAC motor, extruded aluminum construction, and visual position indicator for HVAC air circulation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: ZD10X18

Technical Specifications

• Damper Type: Rectangular, Parallel Blade, Power Closed, Spring Open
• Opening Size: 10 Inch x 18 Inch
• Dimensions: 3-61/64 Inch Width x 4-31/32 Inch Depth x 4-41/64 Inch Height
• Material: Extruded Aluminum (Frame and Blade)
• Motor Mounting Type: Bottom
• Motor Rating: 24 Volt AC 60 Hertz 8 Volt Amp
• Motor Torque Rating: 71 Inch-Ounce
• Motor Temperature Rating: 40 to 140 Deg F (Ambient)
• Pressure Drop: 0.0329 Inch WC at 800 Foot per Minute
• Motor Angular Rotation: 90 Degree
• Leakage: Less than 1 Percent at 1/2 Inch WC
• Maximum Static Pressure Rating: 1 Inch WC
• Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
• Motor Terminal Wiring: M1-Power, M6 Common, M4 (Optional) LED Indication
• Included Features: Mechanical Visual Position Indicator
• Compatibility: TrueZONE and Other Electronic Zoning System
• Application: Circulating Air in HVAC System, Residential
• Brand: Honeywell
• Actuator Location: Side Mount
• Number of Wires: 2-Wire
• Power Options: Power Close, Spring Open
• Shape: Rectangular
• Style: New Construction
• Product Type: Supply Air Damper
• Indicator Type: LED
