Product Description

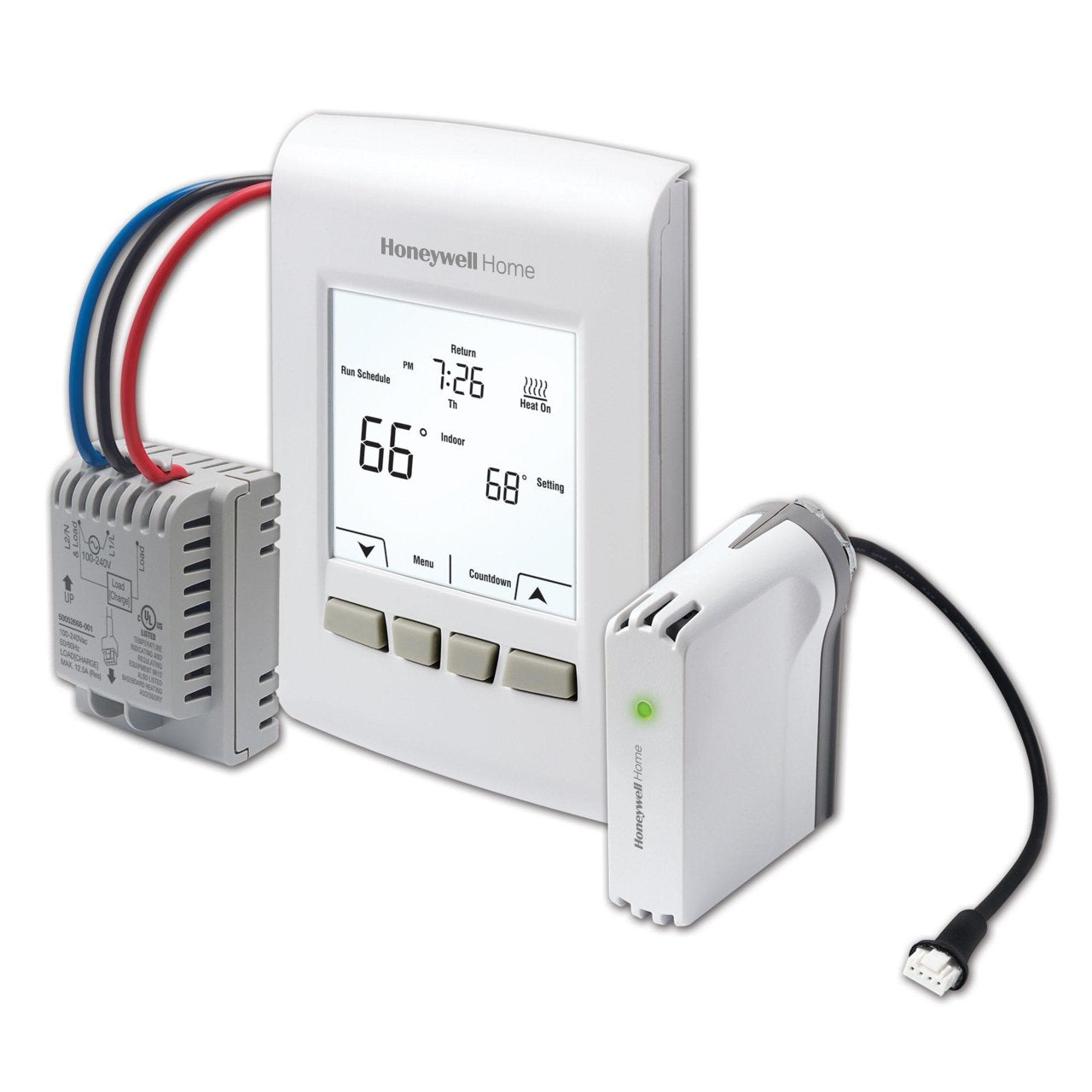

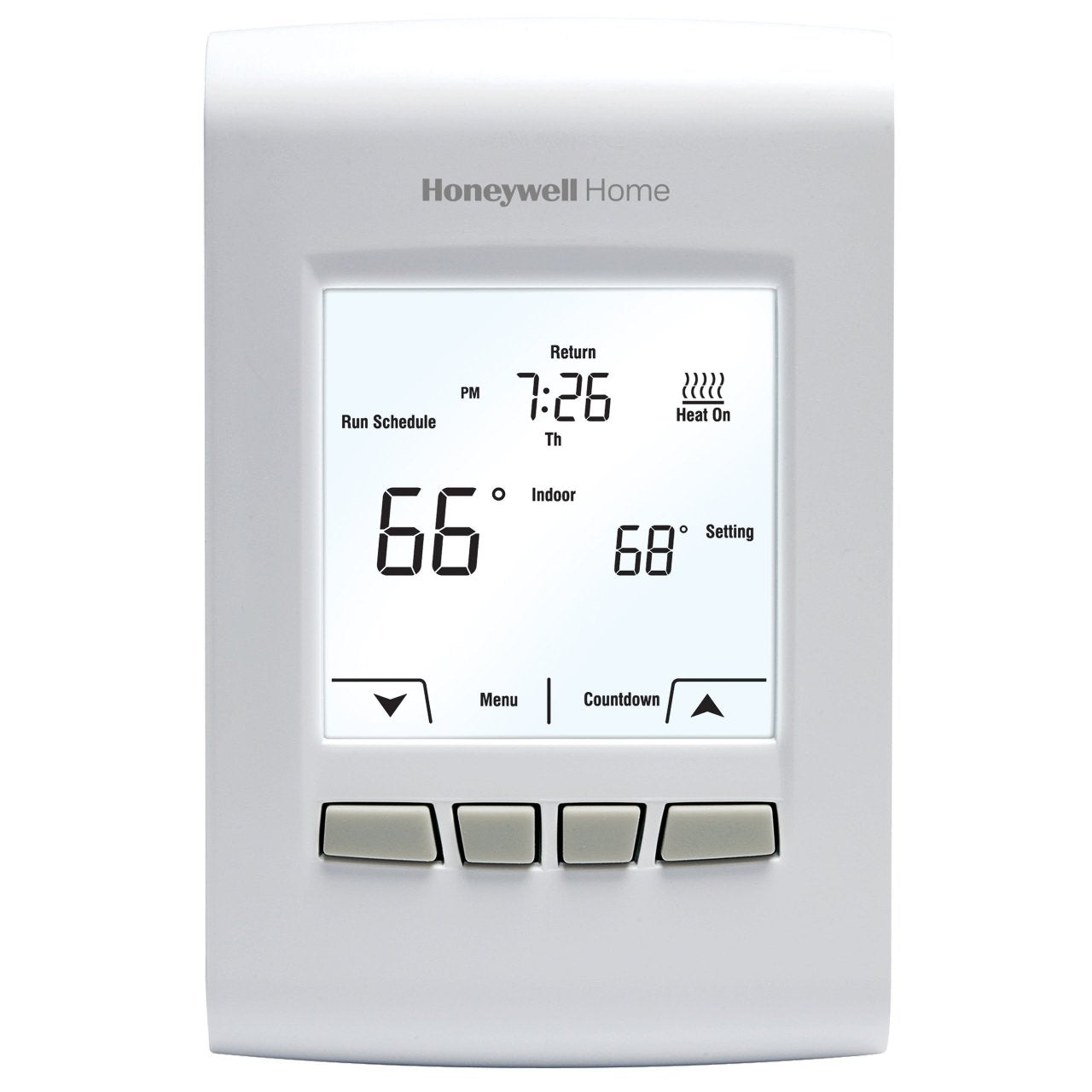

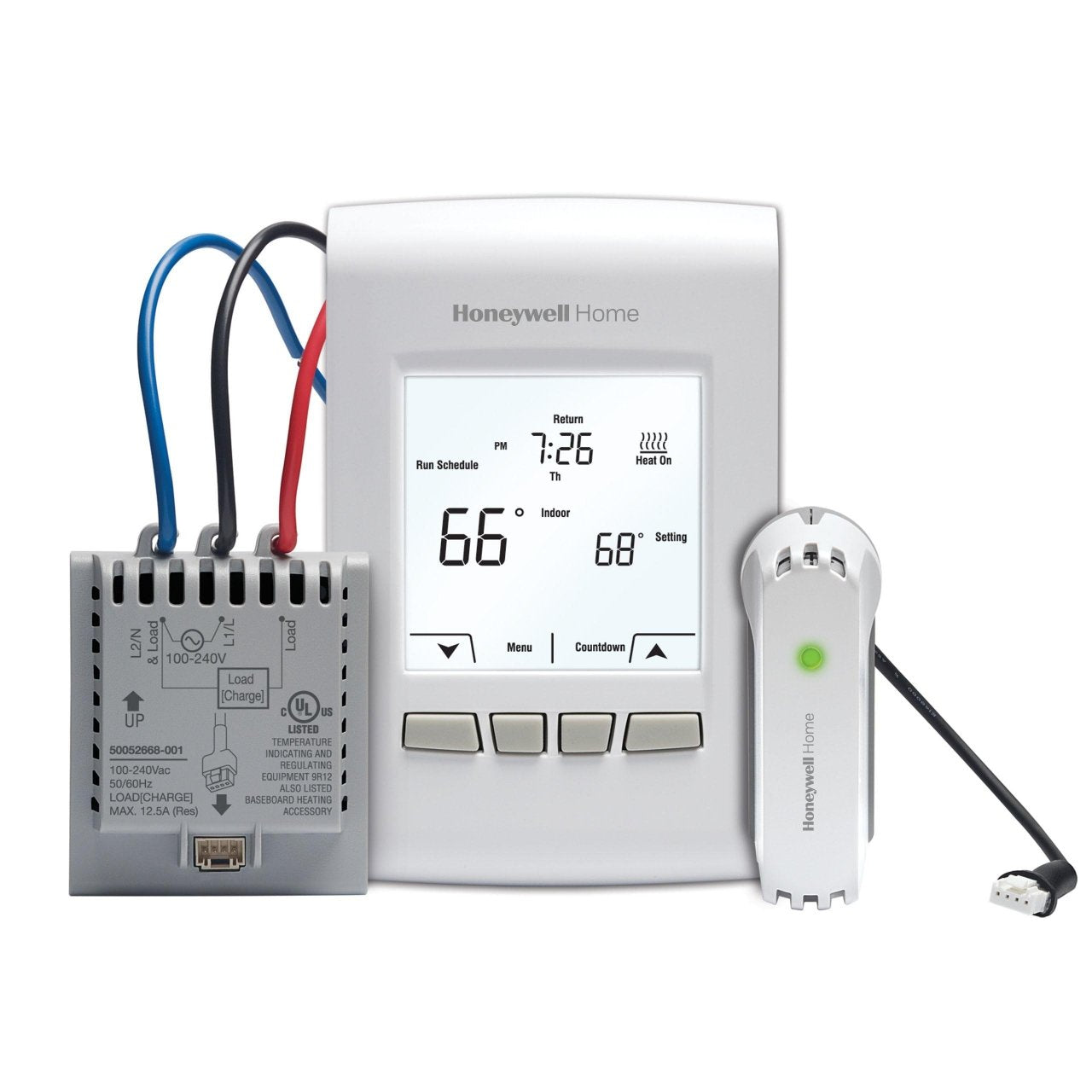

The RESIDEO YTL9160AR1000 is a wireless programmable line volt thermostat kit with RedLINK technology. Upgrade or relocate your system without new wires, as the Equipment Interface Module (EIM) easily installs on most baseboards. Its programmable design provides energy savings. Compatible with RedLINK enabled accessories.
- Wireless installation eliminates the need for new wiring.
- Programmable design for energy savings.
- Compatible with most electric baseboard brands.
Product Highlights
Wireless thermostat kit upgrades or relocates systems easily and offers energy savings through programmable design. Compatible with RedLINK accessories.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: YTL9160AR1000
Technical Specifications
-
Product Line: RedLINK
-
Programmable: Yes
-
UPC: 085267562393
-
Minimum Operating Temperature: 32 F
-
Maximum Operating Temperature: 122 F
-
Voltage: 100/240 Volts
-
Display Size: 4 1/2 Inches
-
Product Height: 5 1/8 Inches
-
Product Width: 3 11/48 Inches
-
Thermostat Type: Line Voltage, RedLINK, Communicating, Digital
-
Smart Home Integration: No
-
Display Type: LCD Screen
-
Touchscreen: No
-
Display Language: English
-
Modes of Operation: Heat
-
Program Type: 5-2 Programmable, 7-Day Programmable
-
Power Source: Battery Operated, Hardwired
-
Frequency: 50 Hz, 60 Hz
-
Battery Size: AA
-
Battery Type: Alkaline
-
Warranty: 3 Years
-
Includes: TLM1110R1000 Equipment Interface Module
-
WiFi: No
-
Z-Wave: No
-
RedLINK: Yes
-
Sensor Type: Thermistor
-
Ambient Operating Temperature (Max): 122 °F, 50 °C
-
Ambient Operating Temperature (Min): 32 °F, 0 °C
-
Differential Temperature: ± 1 °F, ± 0.5 °C
-
Ambient Relative Humidity (Max): Thermostat: 90% RH non-condensing, EIM: 95% RH non-condensing
-
Ambient Relative Humidity (Min): Thermostat: 5% RH non-condensing, EIM: 5% RH non-condensing
-
Compatible Sensor: Outdoor Temperature Sensor
-
Interstage Differential Temperature: 1 to 1.5 °F, 0.5 to 1°C
-
Mounting Type: Vertical Mount
-
Shipping and Storage Temperature (Max): 120 °F, 49 °C
-
Shipping and Storage Temperature (Min): -20 °F, -29 °C
-
Switch Action: SPST
-
Product Depth: 1.09 in, 28 mm
-
Programmability: Programmable, 7-Day
-
Stages: Heat Only - electric baseboards, convectors and fan forced heaters (resistive rated loads)
-
Interface: Button
-
Display: Monochrome
-
EIM Electrical Ratings: min. load: 0.4A (resistive only) 100W @ 240Vac, 50W @ 120Vac; max. load: 12.5A (resistive only), 3000W @ 240Vac, 1500W @ 120Vac; 50/60Hz
-
Power Method: Thermostat - Battery Only (2 x AA); EIM - Harwired Only
-
EIM Electrical Connections: 6" copper lead wires
-
Setting Temperature Range: 41°F - 86°F
-
Temperature Display Range: 32°F - 104°F
-
Accuracy/Temperature Differential: 1F
-
Ambient conditions: Thermostat 32 to 122°F, 5 to 90% RH, non-condensing; EIM: -4 - 140°F, 5 to 95% RH, non-condensing
-
Connection Protocol: RedLINK
-
Dimensions (Height x Width x Depth): 5.1" x 3.2" x 1.1" (130mm x 82mm x 29mm)
-
Packaged Weight: 26.5 oz
-
Controls Outputs: SPST
-
Supply Voltage (Nominal): 120 VAC,240 VAC
