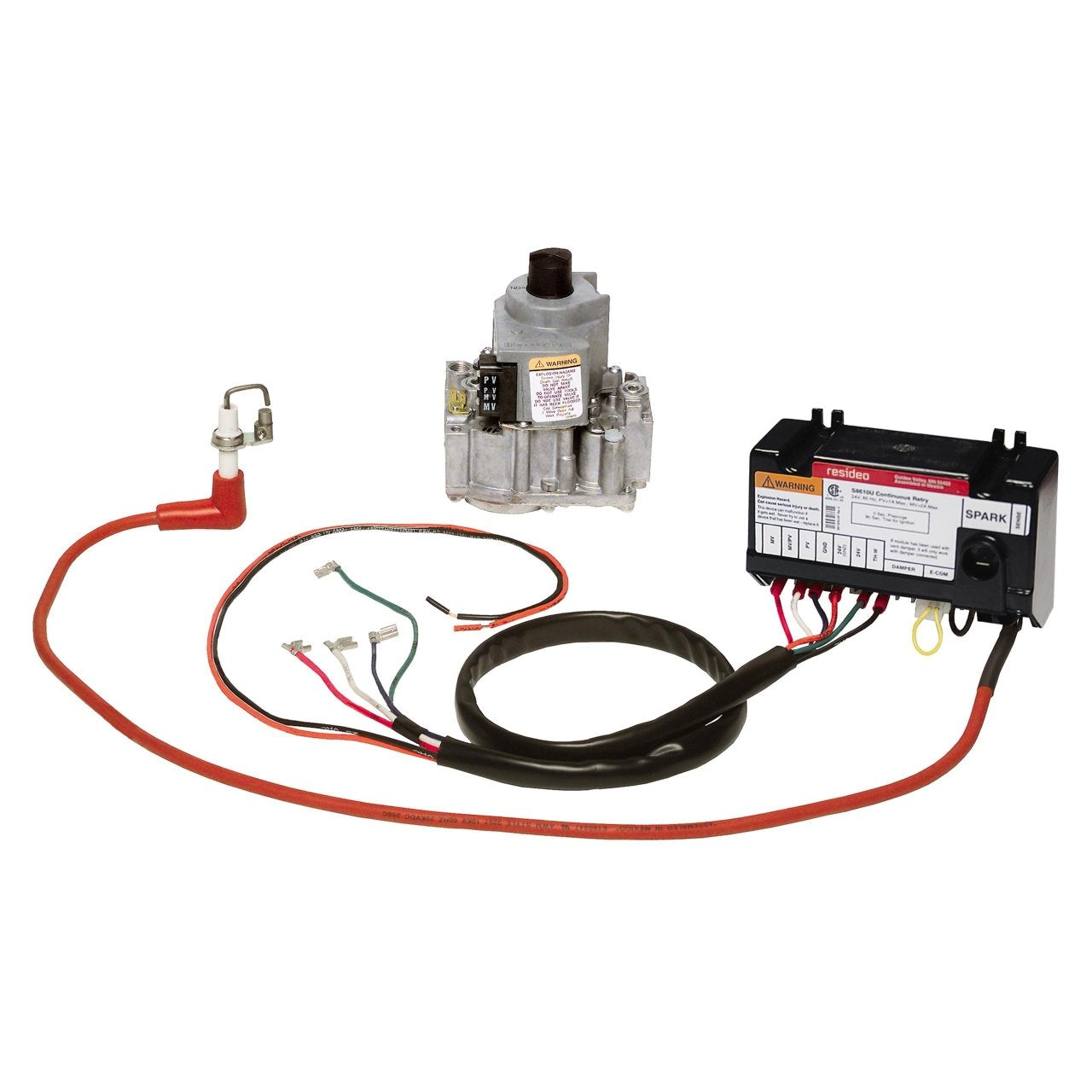

Resideo Y8610U4001/U Retrofit Kit Standing Pilot to Intermittent Pilot

Product Description

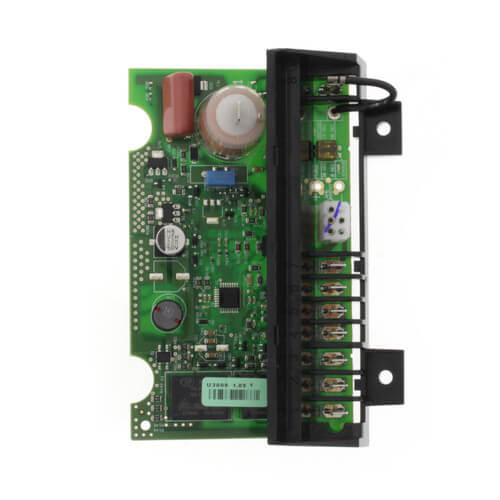

The RESIDEO Y8610U4001/U Retrofit Kit offers a solution for converting standing pilot systems to intermittent pilot systems. This kit enhances industrial and automation supplies, providing improved functionality. Featuring an intermittent pilot ignition control module, this retrofit kit controls the ignition sequence, enhancing safety and reducing energy consumption. The integrated flame sensor detects the presence of flames, ensuring optimal burner operation.

• Enhances safety and reduces energy consumption.
• Flame sensor ensures optimal burner operation.
• Suitable for furnaces, boilers, and various heating equipment.

Product Highlights

The Y8610U4001/U Retrofit Kit simplifies the retrofitting process for a range of applications, including furnaces, boilers, and various heating equipment.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: Y8610U4001/U

Technical Specifications

• Item Number: Y8610U4001/U
• Brand: RESIDEO
• Type: Miscellaneous Parts
• Pilot_Type: Intermittent
• Application: Pilot Ignition
• Flame_Sense: Two Rod|Single Rod
• Compatible_With: Intermittent pilot warm air furnaces and heating appliances
• Ignition_Source: Internal high voltage spark generator
• Ignition_Sequence: Continuous Retry
• Ignition_System_Type: Intermittent Pilot
• Ignitor_Electrical_Rating: 24 V AC
• Flame_Failure_Response_Time: 2 seconds maximum
• Ignition_Between_Trail_Time: 5 minute delay after failed trial for ignition.
• Typical Gas Control: VR8204
• Type of Gas: Natural or LP
• Prepurge: 0 or 30 seconds
• Ignition trials to lockout: continuous retry
• Lockout Timing: 15 or 90 seconds
• Voltage: 24 VAC
• Ambient Temperature: -40°F to 165°F
• Product Features: For use with natural or LP gas, Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
• Type of Fuel: Natural Gas, LPG
• Ignition Type: Intermittent Pilot
• Maximum Valve Load: 1A Pilot,, 2A Main @ 24Vac
• Frequency: 60 Hz
• Operating Voltage: 24 Vac

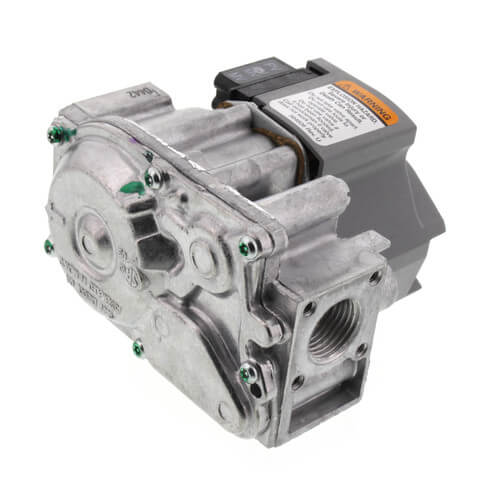

• Includes: VR8204A2142 valve
• Product Height: 3.94 in
• Product Length: 5.44 in
• Product Width: 2.63 in
• Capacity: 150,000 BTU/hr
• Voltage Rating: 24 V
• Electrical Connections: Quick Terminal
• Gas Type: LP/Natural Gas
• Manufacturer: Resideo Technologies
• Manufacturer #: Y8610U4001/U
• Prepurge Time: 30 s
• Pressure Rating: 1/2 psi
• Model: Y8610U
• Frequency Rating: 60 Hz
• Temperature Rating: -40 to 165 deg F
