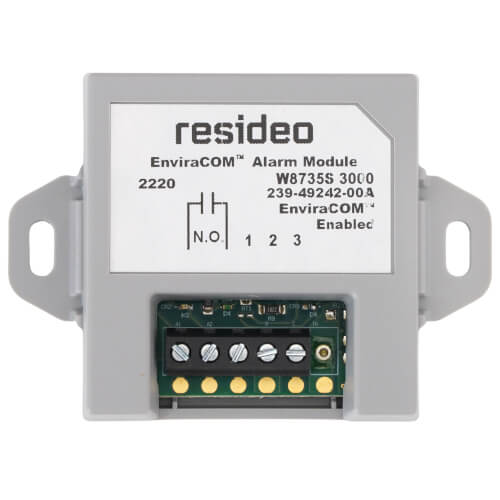

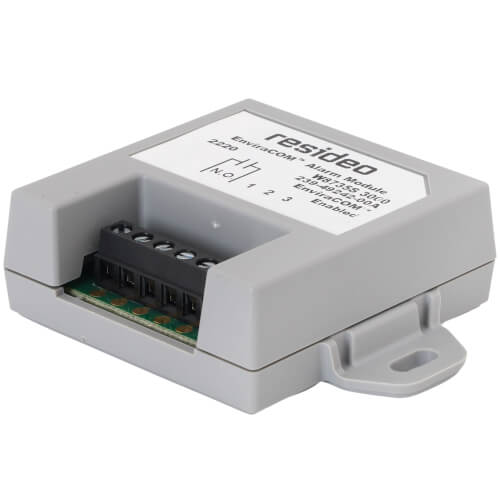

Resideo W8735S3000 Enviracom Alarm Module 18-30vac Alarm Module

Product Description

The Resideo W8735S3000 is an Enviracom Alarm Module designed for use with multiple EnviraCOM enabled oil primary controls and Aquastats. This module closes dry contacts to signal critical alarm events, enhancing safety and monitoring in heating systems.

• Compatible with R7284 Oil Primary and various Aquastat models.
• Local LED indicators for alarm presence and communication.
• Easy installation with low-voltage, five-wire setup.

Product Highlights

This module accommodates simple installation and integration with alarm generating controls, making it essential for anyone working in HVAC or heating systems.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: W8735S3000

Technical Specifications

• Voltage: 24v
• Weight: 0.16 lbs
• Dimensions: 3.3 inches (L) x 5.95 inches (W) x 1.6 inches (H)
• Operating Temperature Range: -30°F to 150°F
• Humidity Range: 0 to 95% RH (Non-Condensing)
• Shipping Weight: 0.16 lbs
• Compatible Accessories: R7284U1004
