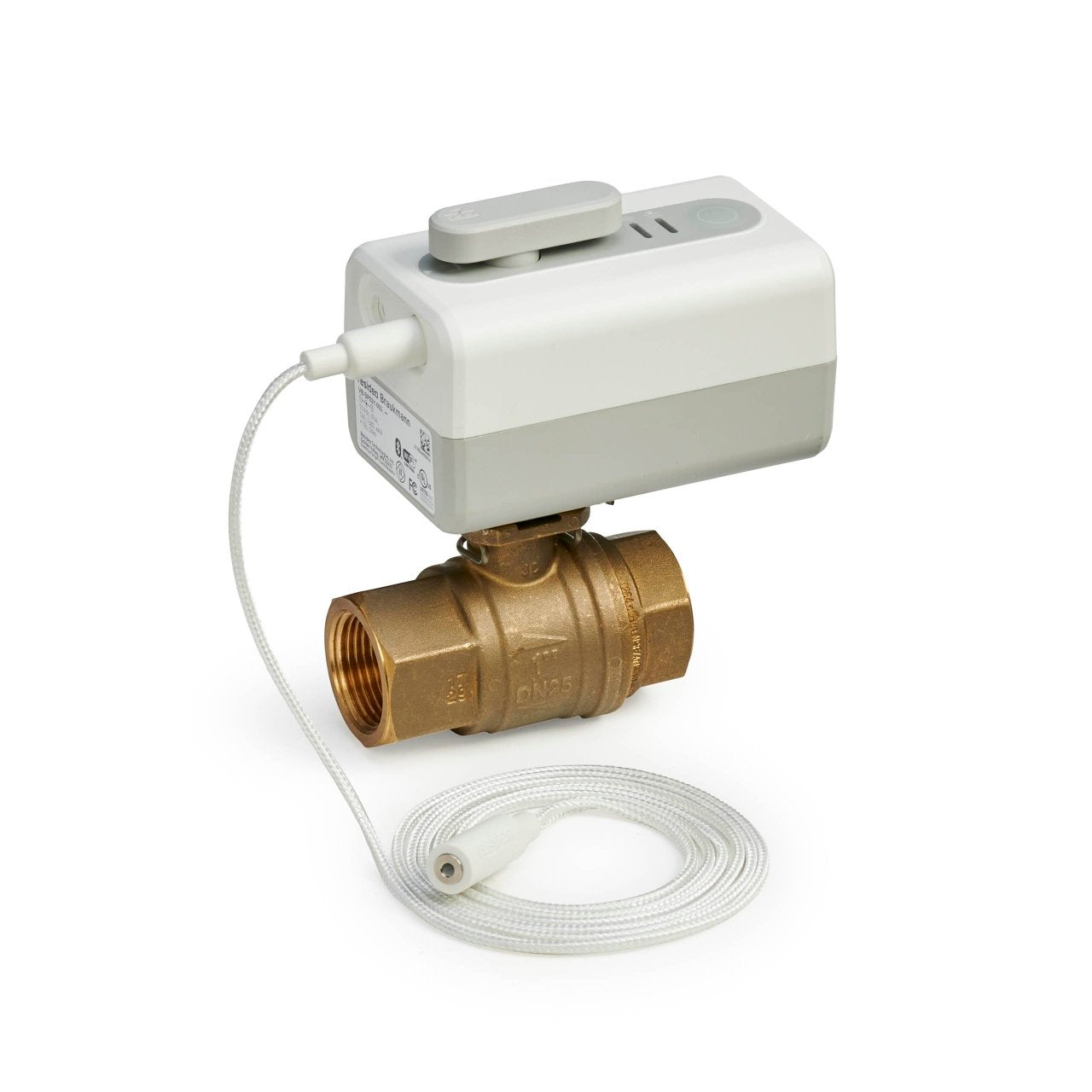

Resideo VWS02Y-11/4 L5 Wi-Fi Actuator with 1-1/4 in. NPT Ball Valve

Product Description

The Resideo VWS02Y-11/4 L5 Wi-Fi Actuator with 1-1/4 inch NPT Ball Valve provides remote control and monitoring for precise flow regulation in various applications. This valve features a robust brass body for durability and resistance to corrosion.

• 1-1/4 inch brass ball valve with Wi-Fi actuation
• Remote control and monitoring via a dedicated app or third-party systems
• Battery-powered for continuous operation

Product Highlights

Suitable for HVAC, irrigation, and industrial uses, this valve offers wireless control and automated operations, enhancing efficiency and system control.

Product Information

Standard Information

• Brand: Resideo
• MPN: VWS02Y-11/4

Technical Specifications

• Application: Water Leak Detection, Water Shut off Valve
• Pipe Size: 1-1/4 inch
• Wireless Connectivity: Wi-Fi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
• Product Features: Auto Shutoff Through Water Leak and Freeze Sensor, Control via App, Manual Override

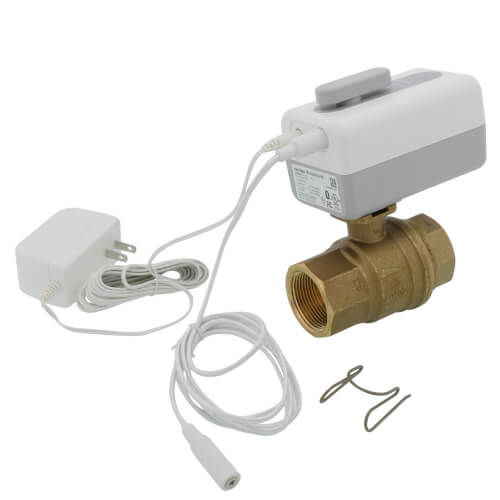

• Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Metal Clip, 5 ft Water Leak Detector Cable
• Connection Type: NPT
• Valve Type: Ball Valve
• Lead Free: Yes
• Color: White, Brass
• Mounting Location: Main water line after main water shutoff and pressure reducing valve
• Mounting Option: Any orientation
• Media Temperature Max: 149 degrees Fahrenheit, 65 degrees Celsius
• Media Temperature Min: 36 degrees Fahrenheit, 2 degrees Celsius
• Ambient Operating Temperature Max: 113 degrees Fahrenheit, 45 degrees Celsius
• Ambient Operating Temperature Min: 32 degrees Fahrenheit, 0 degrees Celsius
• Product Height: 6.5 inches, 165 mm
• Product Length: 5.28 inches, 134 mm
• Product Width: 2.67 inches, 68 mm
• Additional Dimensions: 10 ft cord on Power Supply Adapter
