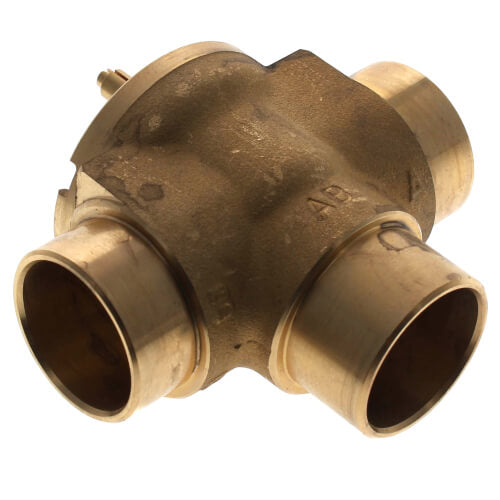

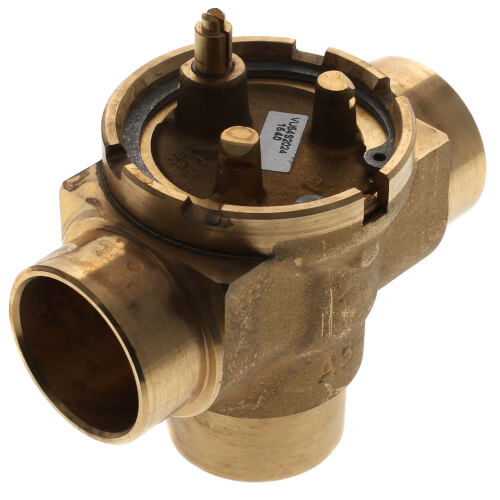

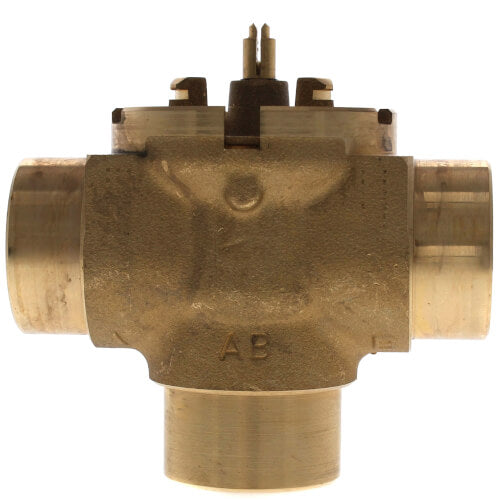

Resideo VU54S2024 Three-way Fan Coil Valve 1 Sweat 7.0 Cv

Product Description

The Resideo VU54S2024 is a three-way fan coil valve used in HVAC systems. This valve is designed to control the flow of hot or chilled water in commercial applications. It can be utilized with fan coil units and terminal reheat coils.

• 300 psi operating pressure rating
• Compact design for easy installation
• Quick opening flow curve

Product Highlights

This valve features a patented ball seal for a long service life and a triple O-ring seal to prevent corrosion and water leakage. The VU54S2024 is suitable for systems needing reliable water control.

Product Information

Standard Information

• Brand: Resideo
• MPN: VU54S2024

Technical Specifications

• Flow Capacity (Cv): 7.0
• Connection Type: Sweat
• Size: 1 inch
• Max Pressure Differential (PSI): 10
• Ambient Temperature: 34°F - 125°F
• Product Type: Valve Body
• Body Pattern: Straight-Through, 3-Way
• Used With: VU843 Actuator, VU443 Actuator
