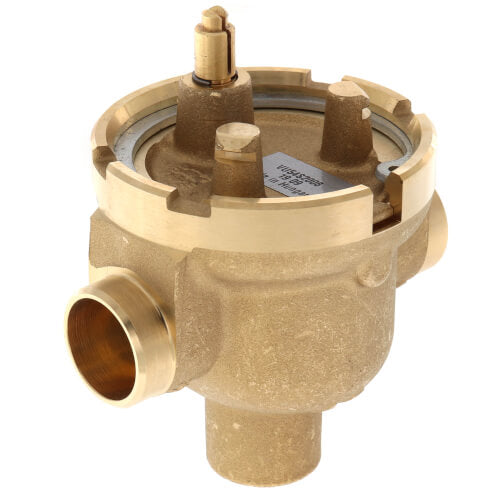

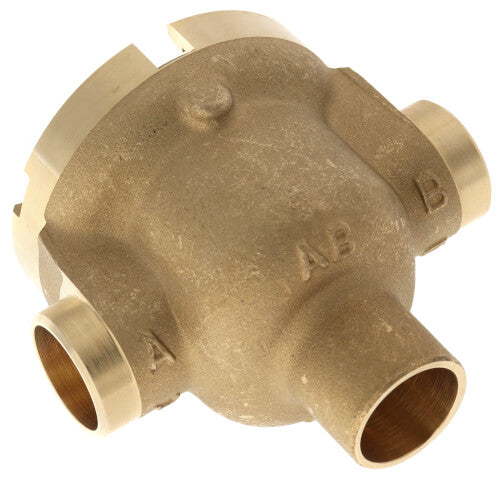

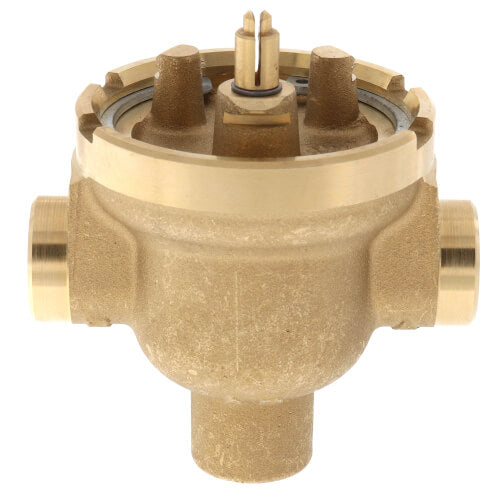

Resideo VU54S2008 Three-Way Fan Coil Valve 1/2 Sweat 4.0 Cv

Product Description

The Resideo VU54S2008 is a three-way fan coil valve designed for use in HVAC systems to efficiently control the flow of hot or chilled water. This valve is ideal for commercial HVAC applications, such as fan coil units and terminal reheat coils.

• Compact design for easy installation
• Operates under high pressure up to 300 psi
• Provides reliable three-way diverting control

Product Highlights

The VU54S2008 features a patented ball seal and triple O-ring seal to ensure long-lasting performance and prevent leaks. It is important to note that these valves should not be used in systems containing dissolved oxygen.

Product Information

Standard Information

• Brand: Resideo
• MPN: VU54S2008

Technical Specifications

• Material: Brass
• Pipe Size: 1/2 inches
• Body Pattern: 3-Way
• Flow Capacity: 4 Cv
• Max Operating Pressure: 300 psi
• Connection Type: Sweat
• Application: Zoning
• Ambient Temperature: 34°F - 125°F
