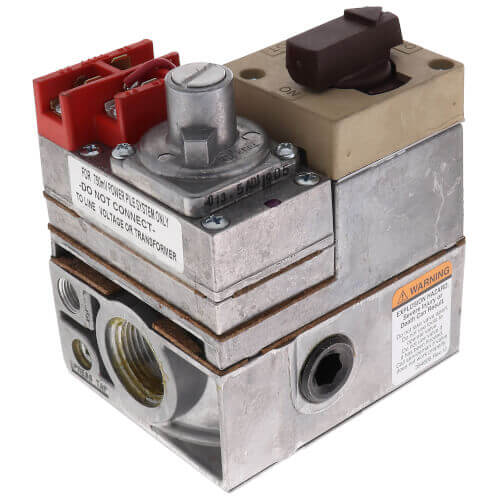

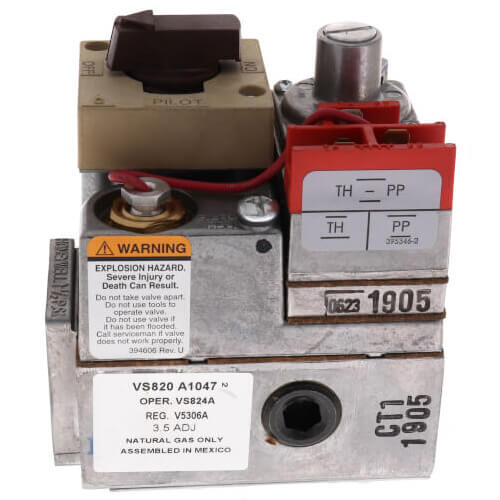

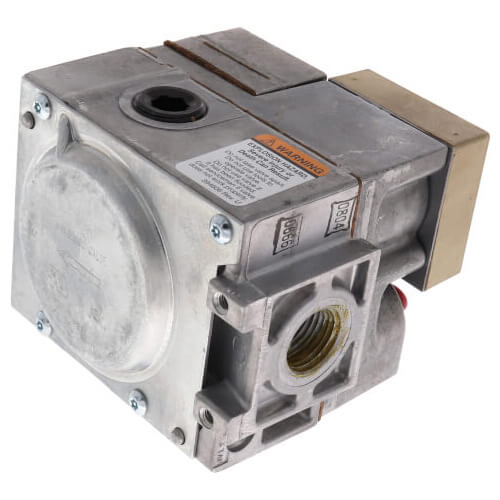

Resideo VS820C1100 Step Opening PowerPile Millivolt Combination Gas Valve - 3/4 NPT x 3/4 NPT

Product Description

The Resideo VS820C1100 is a Step Opening PowerPile Millivolt Combination Gas Valve designed for heating applications. This gas control device is essential for maintaining safe and efficient heating in gas appliances. The valve requires a 750 mV Powerpile generator, utilizing heat from the pilot flame to create electrical energy for operation. A proper connection with a millivolt thermostat completes the setup for reliable automated gas control.

• Includes pilot flow adjustment screw
• Accessible adjustments for easy installation and servicing
• Safety shutoff on pilot flame failure

Product Highlights

This gas valve enhances safety and efficiency in gas heating systems, making it vital for technicians and contractors.

Product Information

Standard Information

• Brand: Resideo
• MPN: VS820C1100

Technical Specifications

• Inlet/Outlet Size: 3/4 in. NPT x 3/4 in. NPT
• Pressure Regulator Setting (psi): Step: 0.9 in. wc non-adjustable; Full rate: 3.5 in. wc
• Type of Gas: Natural
• Electrical Ratings: 750 mV
• Mounting: 0 to 90 degrees from the gas control knob
• Dimensions: 4.75 in. high x 4.0625 in. wide x 3.1875 in. deep
• Approvals: UL Component Recognized, AGA Design Certified, CGA Design Certified
• Included Components: One 3/4 x 1/2 reducer bushing, one 1/2 x 3/8 reducer bushing
