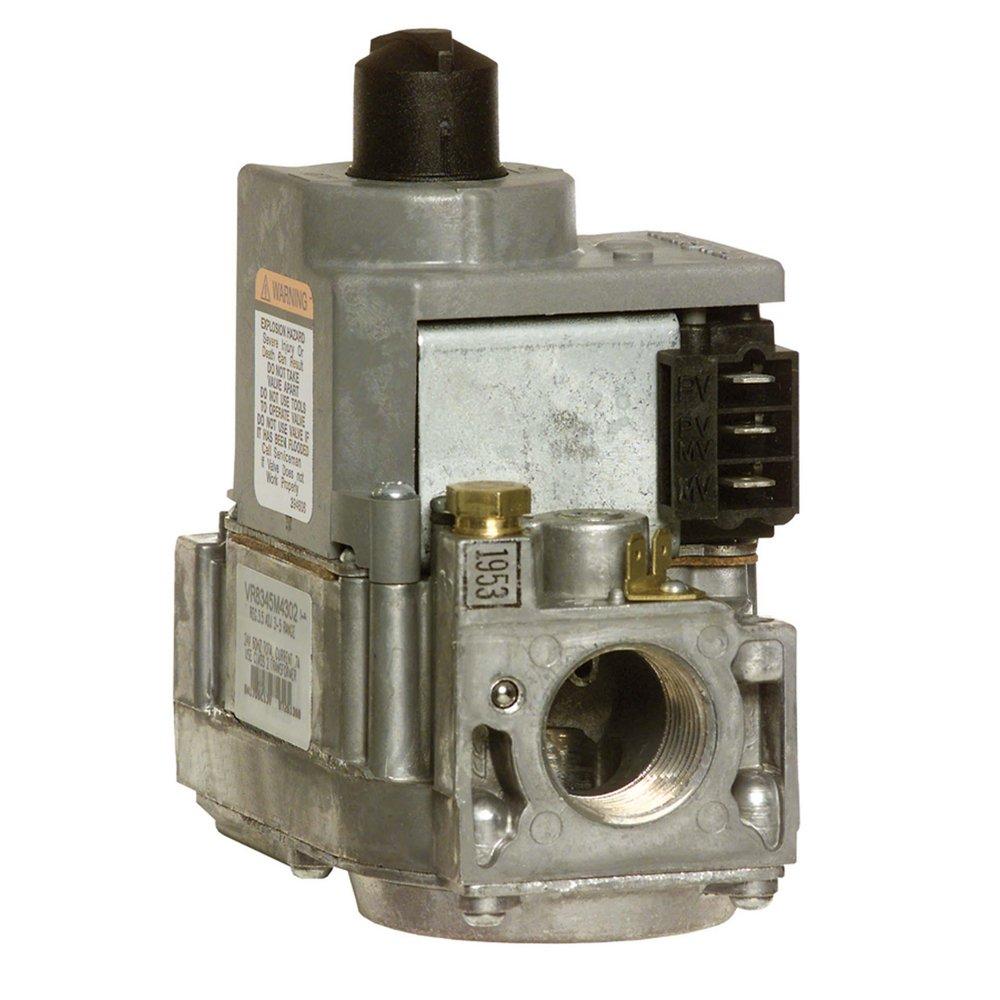

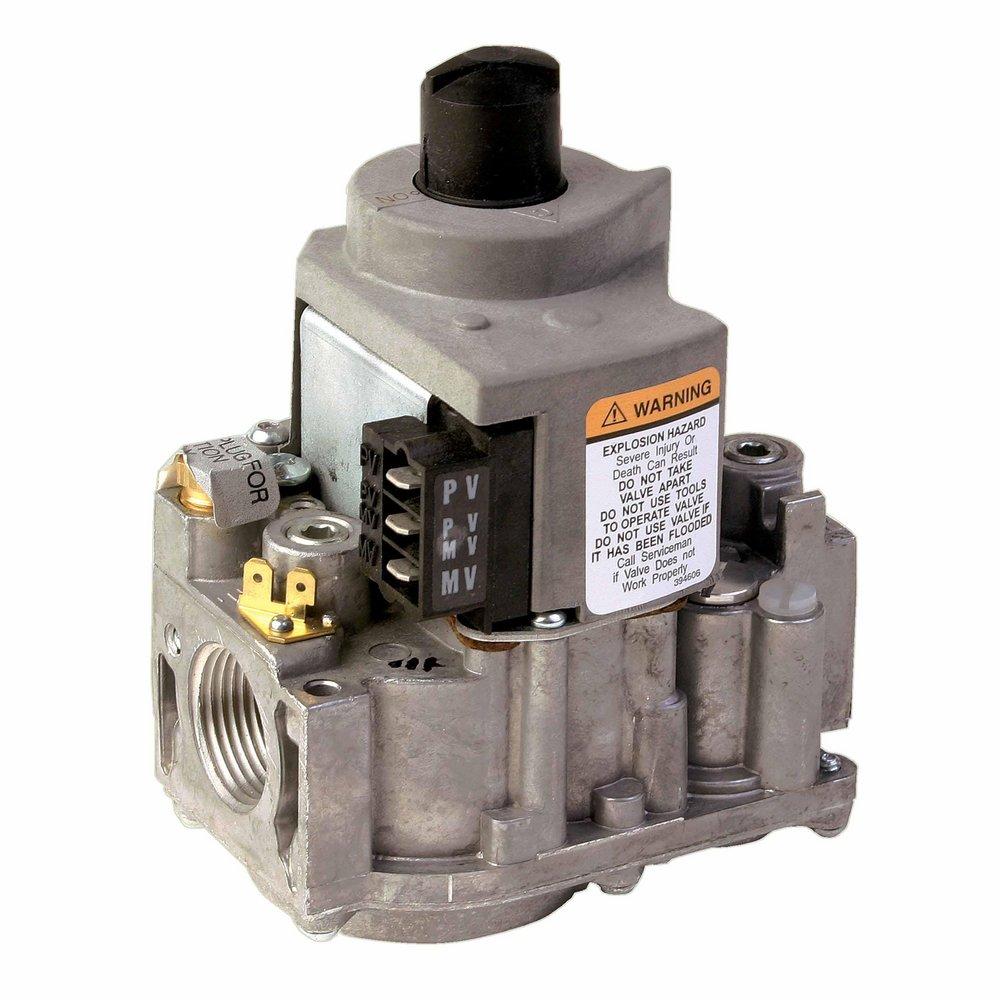

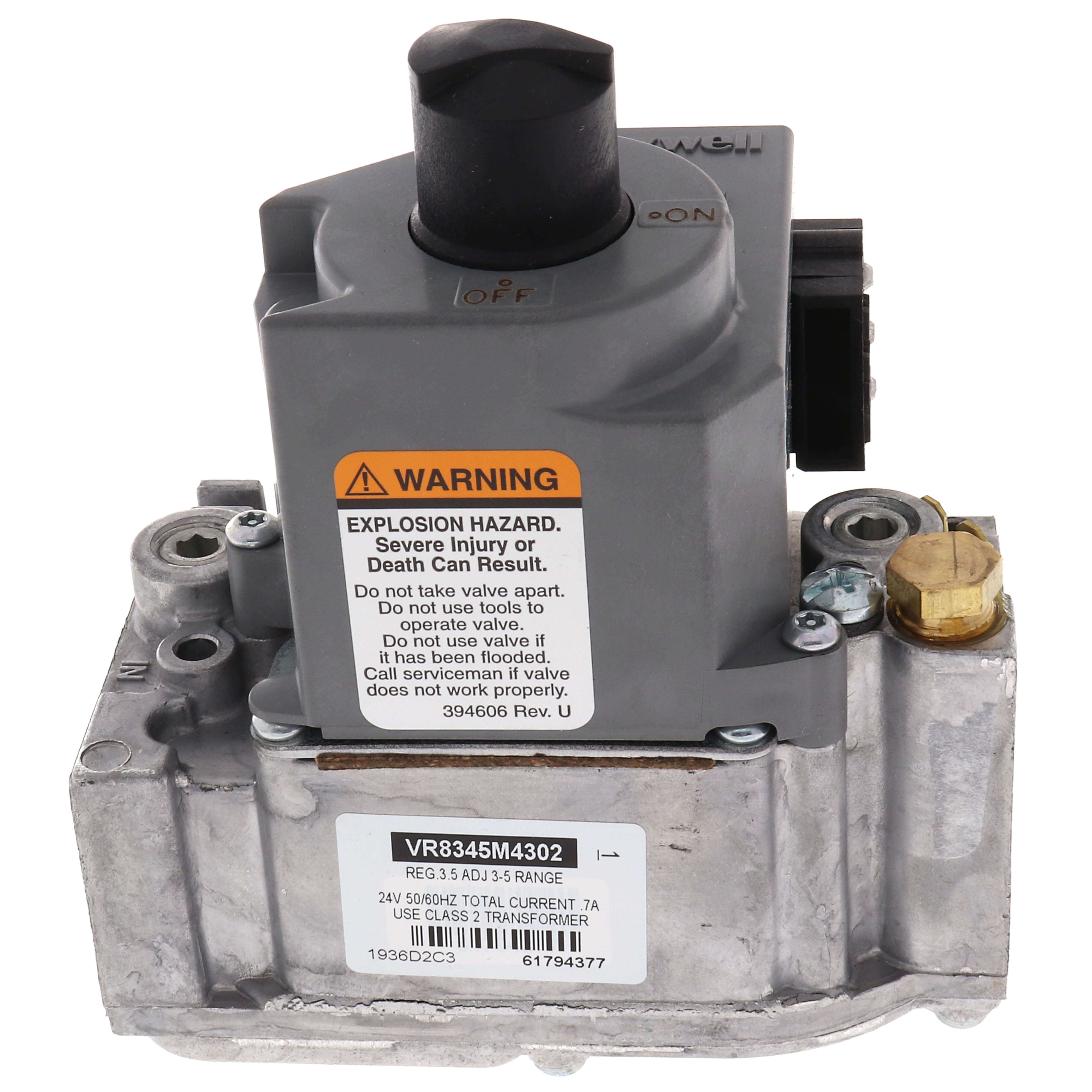

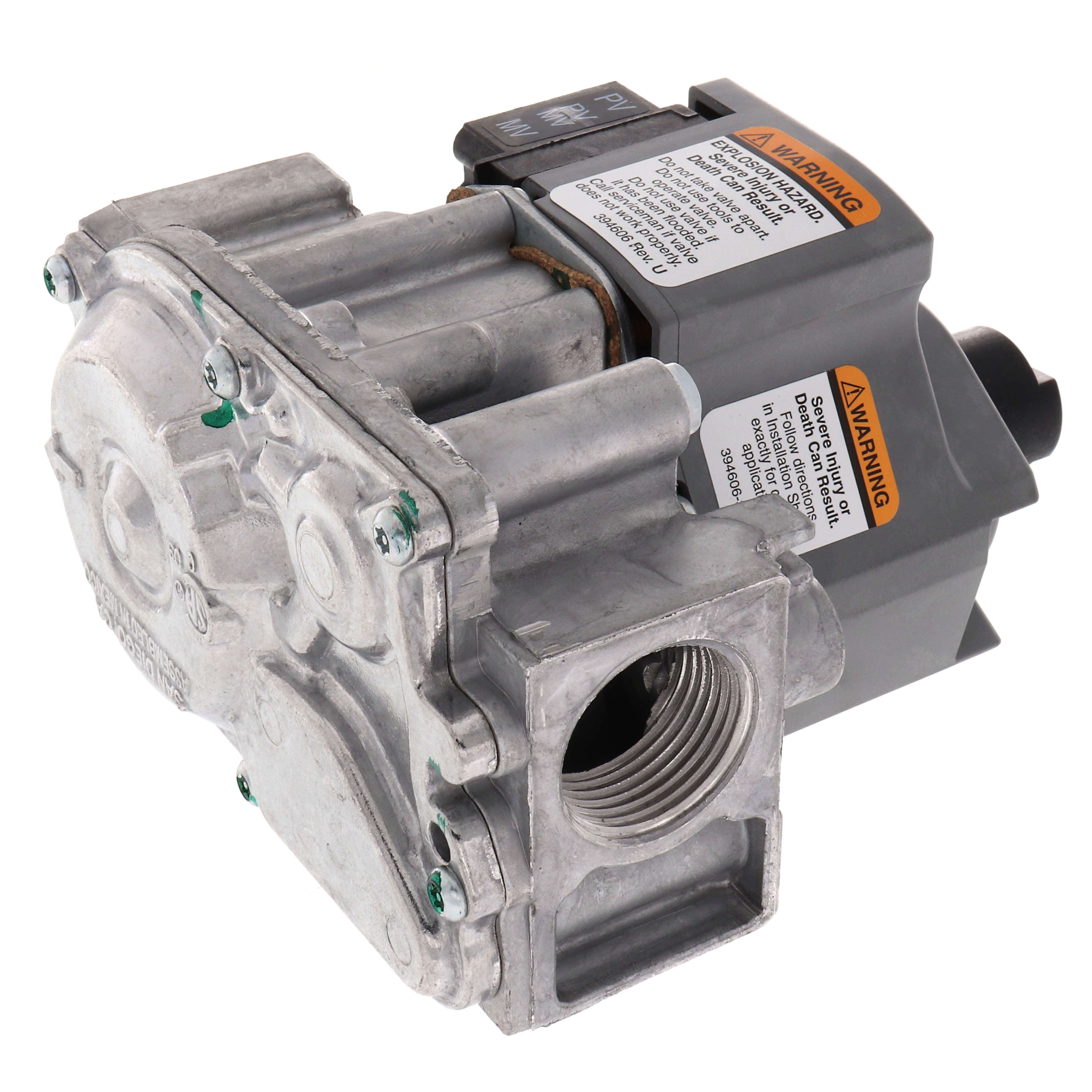

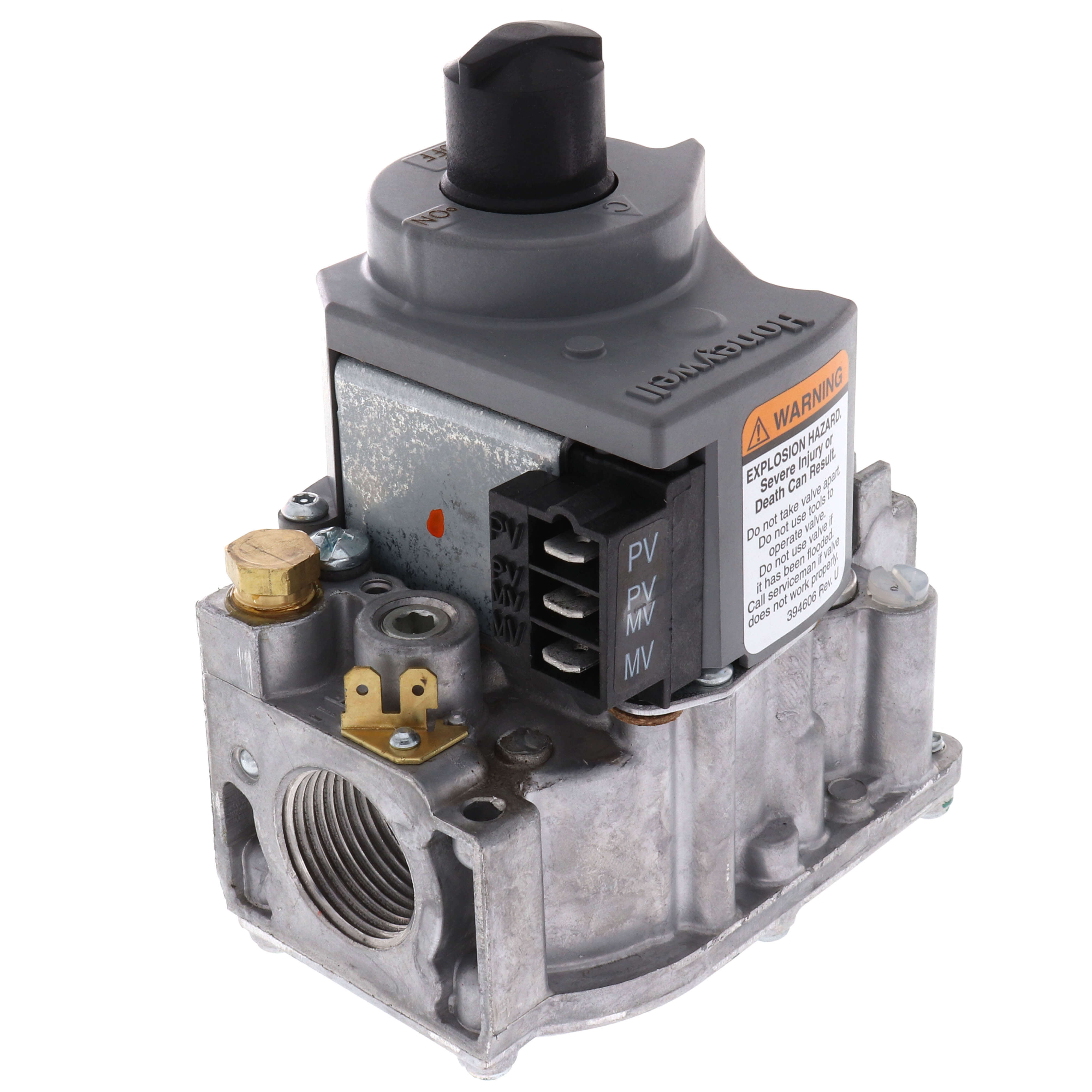

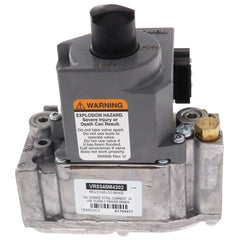

Resideo VR8345M4302 VR8345 series multi-system standard opening intermittent direct ignition gas valve 24V 3/4 in inlet x 3/4 in outlet

Product Description

The RESIDEO VR8345M4302 is a multi-system standard opening intermittent direct ignition gas valve designed for 24V gas-fired appliances. It replaces many IP, HSI, or DSI gas controls and is suitable for natural, manufactured, or LP gas. This universal electronic ignition combination gas control includes a manual valve, two automatic operators, and a pressure regulator. It features a compact size and a four-inch swing radius for easy installation in tight furnace vestibules.

• Replaces many IP, HSI, or DSI gas controls.
• Includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug, and ignition adapter.
• Features a clearly marked, keyed terminal block for quick wire attachment and an internal inlet screen.

Product Highlights

Universal electronic ignition gas control for 24V gas-fired appliances, adaptable for natural or LP gas.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: VR8345M4302

Technical Specifications

• Part Number: HVR8345M4302
• Alternate Part Number: 097640
• Valve Type: Universal Electronic Ignition Gas Valve
• Opening Type: Standard
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Capacity: 300,000 BTU/hr; 30,000 BTU/hr minimum
• Pressure Rating: 1/2 psi
• Pressure Rating kPa: 3.5 kPa
• Pressure Regulator Setting: 3.5 in. wc
• Pressure Regulator Setting kPa: 0.87 kPa
• Pressure Tapping: 1/8 in. NPT with plug
• Electrical Connections: 1/4 in. quick-connect male terminals
• Input Voltage: 24 Vac
• Frequency: 60 Hz
• Operating Temperature: -40 F to +175 F
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Includes: Two 3/4 x 1/2 in. reducer bushings, natural to LP Conversion Kit
• Certifications: AGA Design Certified: File No. L2025007, CGA Design Certified: File No. L2025007, UL Component Recognized
• Fuel Type: Natural Gas
• Body Pattern: Straight-Through
• Ignition Type: Intermittent Pilot, Direct Spark Ignition
