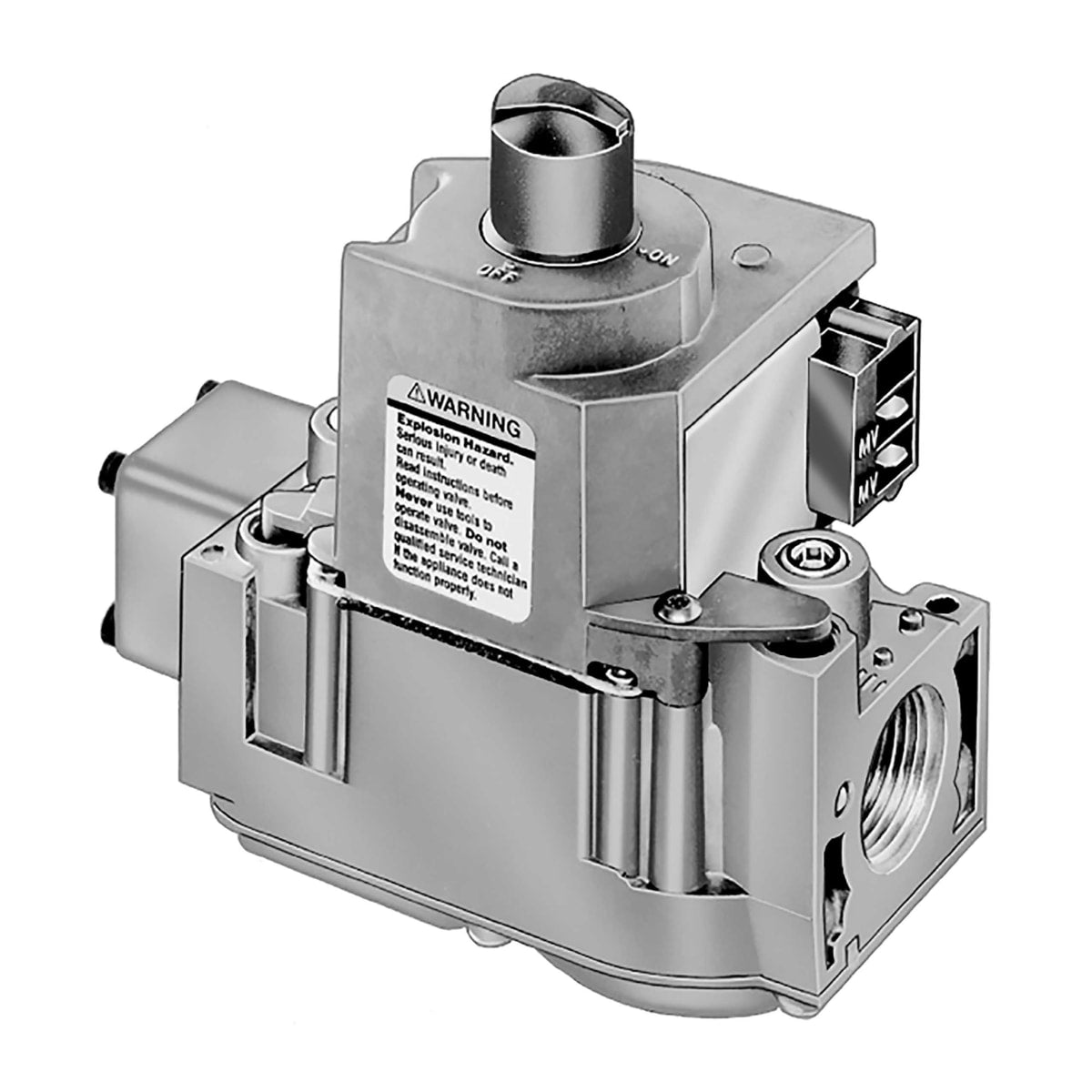

Resideo VR8305Q4153T/U Two Stage Gas Controls for Direct Ignition Appliance

Product Description

The Resideo VR8305Q4153T/U is a combination gas control designed for use with hot surface and direct spark systems, operating at 24 Vac in gas-fired appliances. This model supports capacities from thirty to four hundred fifteen cubic feet per hour. It features both manual and automatic valves, ensuring reliable operation in heating applications.

• Integrates with hot surface and direct spark systems for 24 Vac.
• Automatic valves for enhanced safety and control.
• Easy accessibility for adjustments and connections.

Product Highlights

This gas control meets dual safety shutoff requirements. It includes a solenoid-operated first valve that opens on thermostat call for heat and a diaphragm-operated second valve for additional safety. This unit allows for natural gas to LP and LP to natural conversion using available kits.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8305Q4153T/U

Technical Specifications

• Type: Gas Valves
• Application: Two Stage
• Compatible With: Hot surface and direct spark systems
• Pressure Rating: 1/2 psi, 3.5 kPa
• Includes: 3/4 in to 1/2 in Reducer Bushings, 396021 LP Conversion Kit
• Approvals and Standards: UL Component Recognized, CSA International
• For Use With: S89C, S89E, S89F, S87 Series 5 and later
