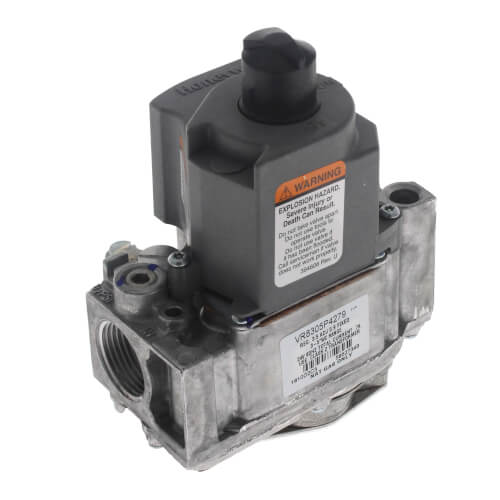

Resideo VR8305P4279 Step-Opening Dual Direct Ignition Gas Valve

Product Description

The Resideo VR8305P4279 Gas Valve is engineered for robust performance in commercial and industrial environments. This dual direct ignition gas control valve is designed to operate with 24 Vac gas-fired appliances and has a flow capacity range from 30,000 to 300,000 BTU/hr.

• Compatible with hot surface or direct spark ignition systems.
• Features dual automatic valves for safety and reliability.
• Pressure regulator for consistent operational pressure.

Product Highlights

Constructed to meet industry standards for safety and efficiency, this valve ensures safe operation with features including a manual valve, two automatic operators, and a solenoid-operated valve that responds to thermostat signals. The second valve, operated by a diaphragm, enhances safety by closing during power or gas interruptions.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8305P4279

Technical Specifications

• Inlet/Outlet Size: 3/4 inch x 3/4 inch
• Pressure Ratings: 1/2 psi (3.5 kPa)
• Electrical Ratings: 24 Vac
• Temperature Range: -40 F to +175 F (-40 C to +79 C)
• Dimensions: 6 1/8 in. high x 5 1/16 in. wide x 2 11/16 in. deep
• Approvals: AGA, CGA, UL Component Recognized
