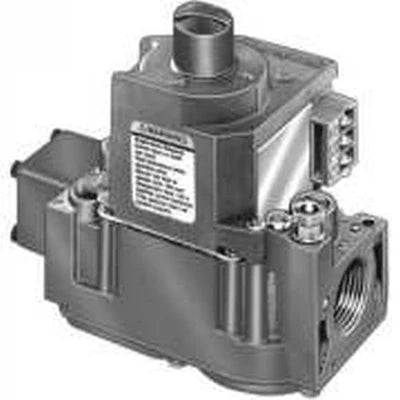

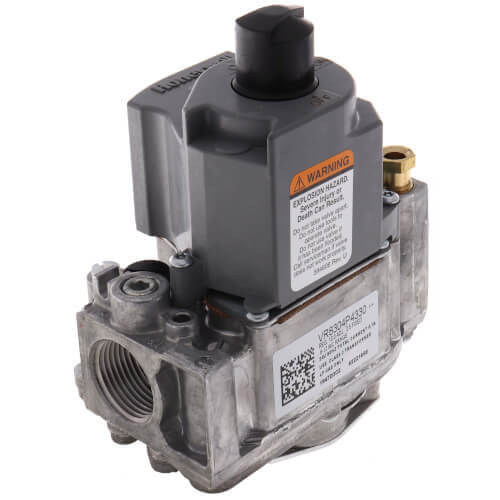

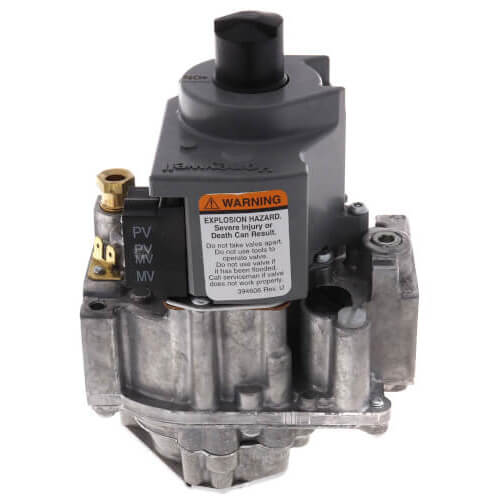

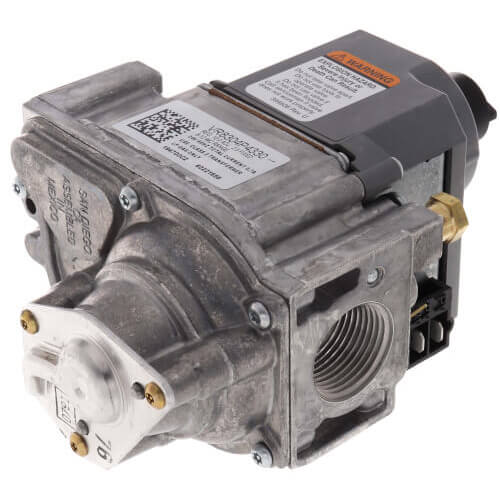

Resideo VR8304Q4511 3 4 2-Stage Valve 24v

Product Description

The Resideo VR8304Q4511 valve is a 3/4-inch, 2-stage flow control solution designed for industrial use. It features a low operating pressure of 1.7 and a high closing pressure of 3.5, ensuring reliable performance.

• 3/4 inch, 2-stage valve
• 24V electrical system
• IP protection rating

Product Highlights

This 2-stage valve provides optimal flow control for demanding applications. It features low and high-pressure settings, making it suitable for various industrial environments. The 24V electrical system enhances its efficiency.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8304Q4511

Technical Specifications

• Type: Two Stage
• Ignition Type: Intermittent Pilot
• Type of Gas: Natural
• Inlet/Outlet Size (in.): 3/4 inch x 3/4 inch
• Body Pattern: Straight-through
• Opening Characteristics: Standard
• Capacity: 300,000 BTU/hr
• Pressure Ratings (psi): 1/2 psi
• Pressure Regulator Setting: 1.7 in. low; 3.5 in. high
• Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
• Electrical Connections: 1/4 in. quick-connect male terminals
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.62 A
• Temperature Range (F): -40 F to 175 F
• Temperature Range (C): -40 C to 79 C
• Mounting: 0 to 90 degrees in any direction
• Dimensions (in.): 5 3/8 in. high x 2 11/16 in. wide x 4 1/16 in. deep
• Approvals: AGA Design Certified, CGA Design Certified, UL Component Recognized
