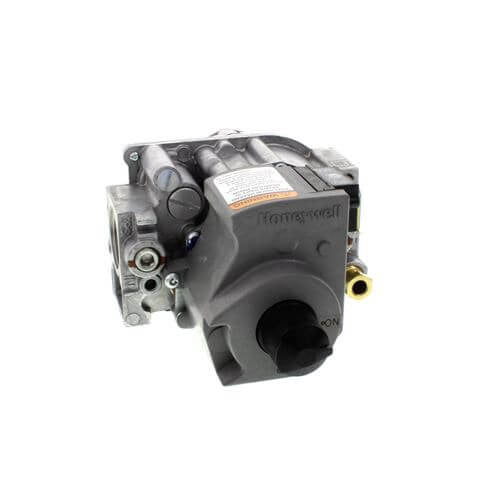

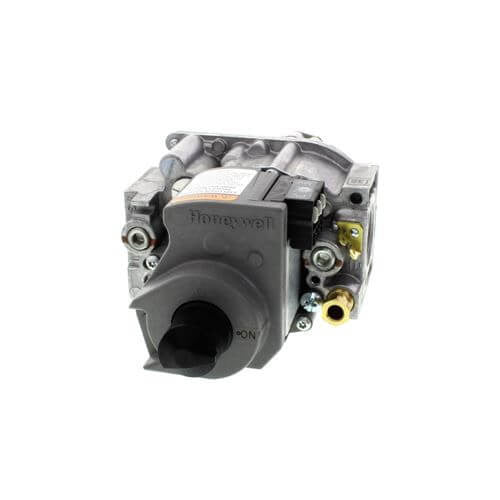

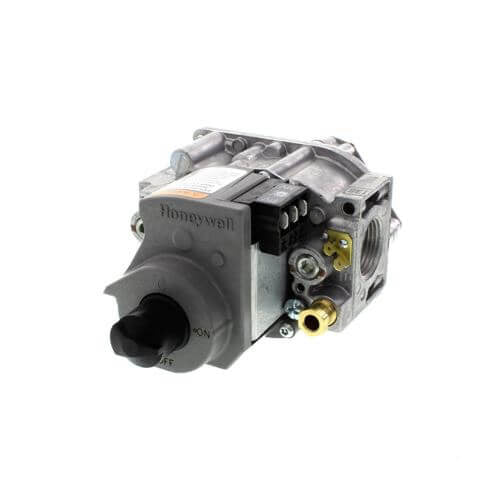

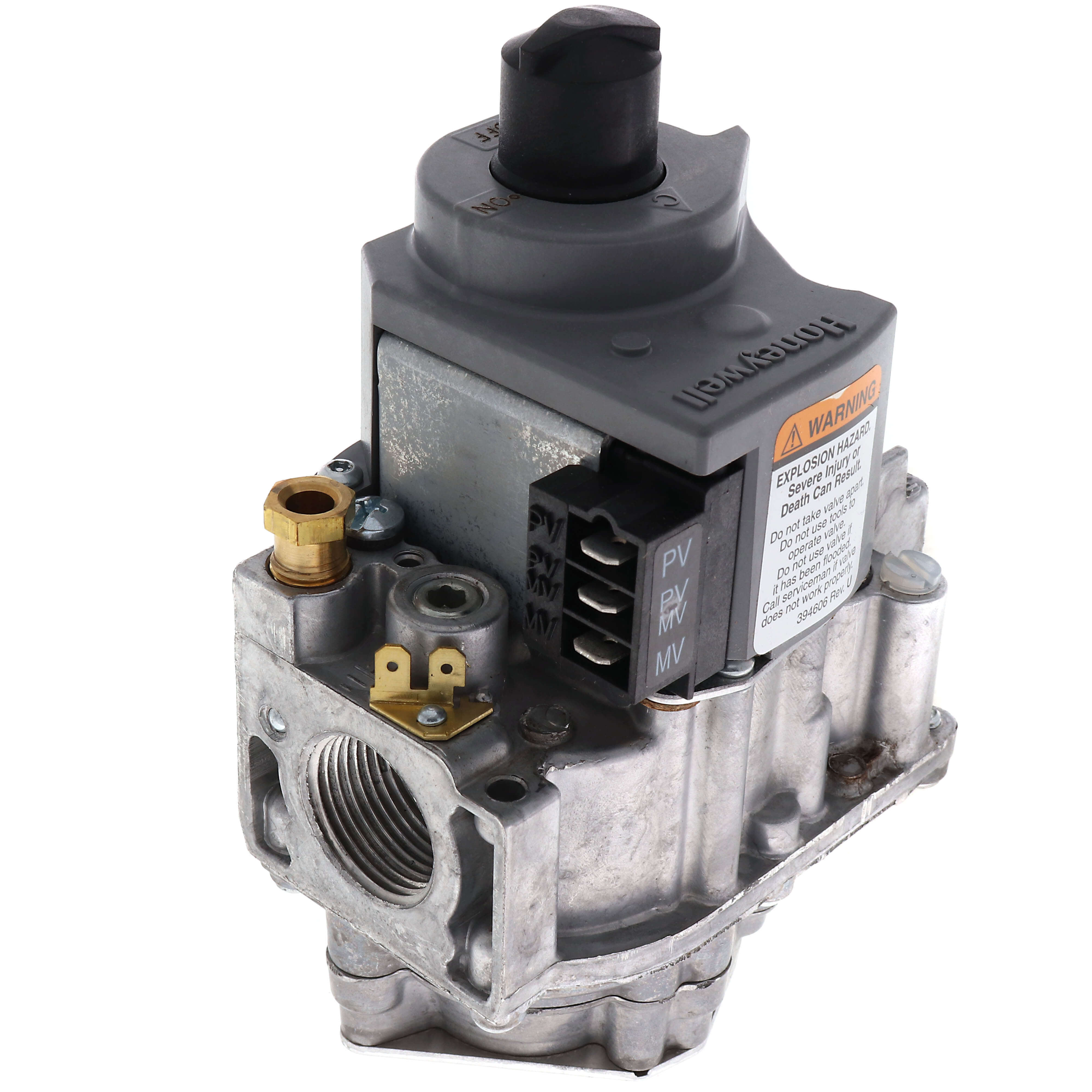

Resideo VR8304P4504 Step Opening Dual Intermittent Pilot Gas Valve 24 Vac 3/4 Inch

Product Description

The Resideo VR8304P4504 Gas Valve is a comprehensive control solution designed for 24 Vac gas-fired, intermittent pilot appliances, ranging from 30,000 to 415,000 BTU per hour. This product is ideal for ensuring safe and efficient gas flow in heating systems.

• Features dual automatic valves for enhanced safety and reliability.
• Compatible with multiple control modules including S8610U3009.
• Equipped with a step-opening feature for precise gas flow control.

Product Highlights

This Gas Valve by Resideo is tailored specifically for professional installation, offering straightforward operation and maintenance. All necessary adjustments and connections are easily accessible, promoting a secure and efficient setup.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8304P4504

Technical Specifications

• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Gas Type: Natural
• Inlet/Outlet Size: 3/4 inch x 3/4 inch
• Body Pattern: Straight-through
• Opening Characteristics: Step Opening
• Capacity: Up to 300,000 BTU/hr
• Pressure Ratings: 1/2 psi (3.5 kPa)
• Temperature Range: -40 F to +175 F (-40 C to +79 C)
• Mounting Options: Flexible, up to 90 degrees orientation
