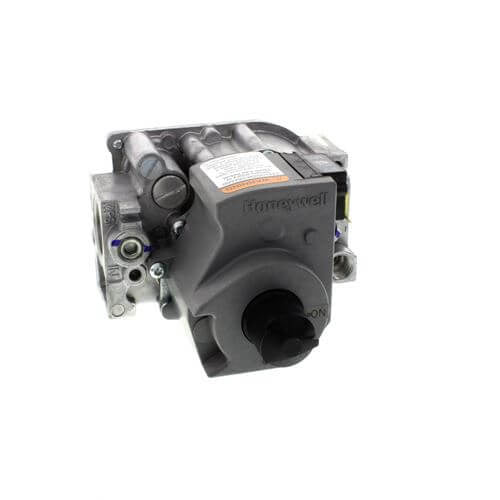

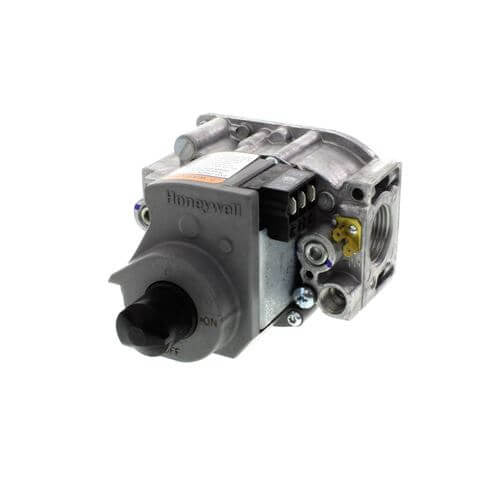

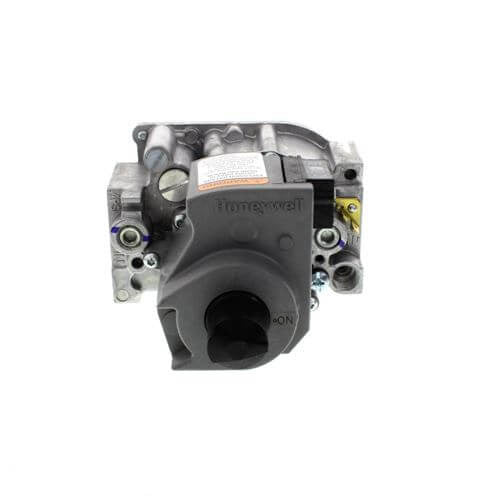

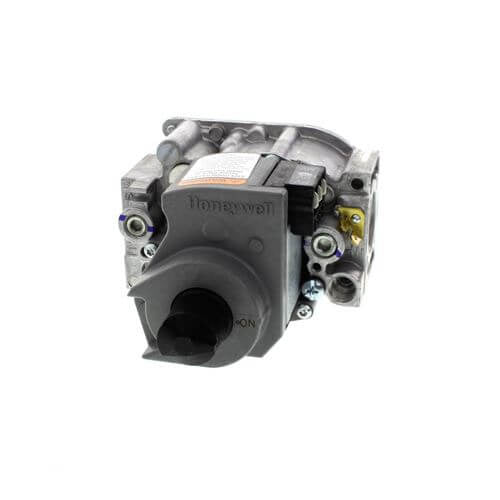

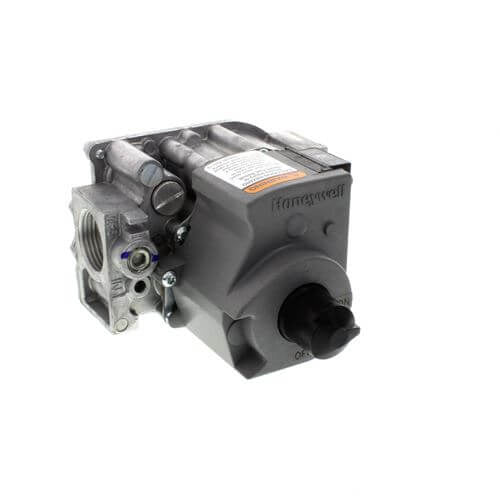

Resideo VR8304M4507 Standard Dual Intermittent Pilot Gas Valve 3/4 x 3/4

Product Description

The Resideo VR8304M4507 is a standard dual intermittent pilot gas valve designed for use in gas-fired appliances. This gas valve is compatible with various control modules and operates on 24 Vac systems, handling gas capacities ranging from thirty to four hundred fifteen cubic feet per hour.

• Combines safety shutoff and manual controls.
• Compact design with accessible top connections for adjustments.
• Conversion kits for natural to LP gas available.

Product Highlights

This gas valve features two automatic valves that enhance safety and control, making it ideal for heating applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8304M4507

Technical Specifications

• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Inlet/Outlet Size: 3/4 inches x 3/4 inches
• Pressure Ratings: 1/2 psi, 3.5 kPa
• Capacity: 300,000 BTU/hr, minimum 30,000 BTU/hr
• Temperature Range: -40 °F to +175 °F
• Dimensions: 5.375 inches high x 4.0625 inches wide x 2.6875 inches deep
• Weight: 1.99 pounds
