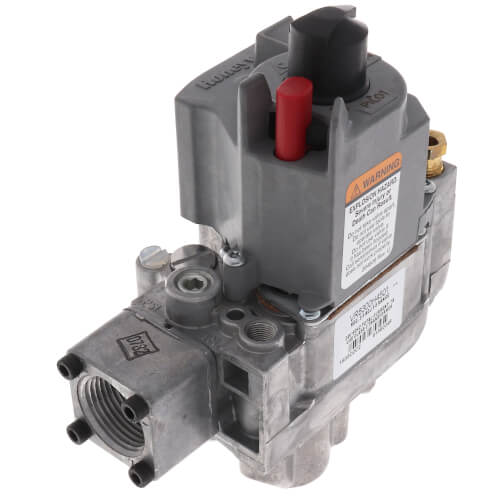

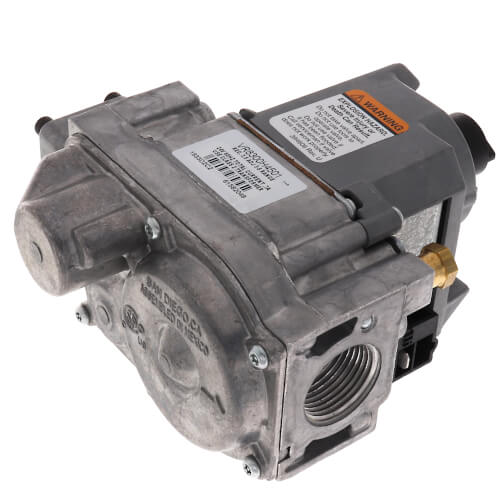

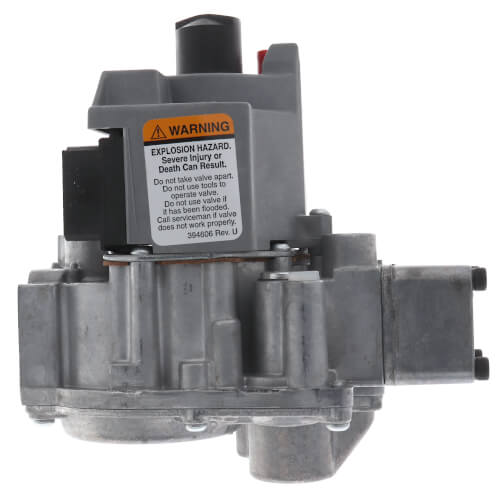

Resideo VR8300H4501 Dual Standing Pilot Gas Valve 24 VAC 3/4 x 3/4 Natural Gas 200k BTU

Product Description

The Resideo VR8300H4501 is a dual standing pilot gas valve designed for use in 24 VAC gas-fired standing pilot appliances. This model, with 3/4 inch inlet and outlet connections, provides reliable control in systems requiring safety shutoff and pilot adjustment.

• Controlled by solenoid and diaphragm valves
• Compatible with ECO connector
• Maintains constant gas pressure

Product Highlights

The Resideo VR8300H4501 gas valve meets codes for dual safety shutoff and includes manual valve operation, a pressure regulator, and pilot adjustment. Its compact size allows for easy installation and all adjustments are accessible from the top of the control. This valve is perfect for applications requiring natural gas control.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8300H4501

Technical Specifications

• BTU: 200k BTU
• Type: Dual Standing Pilot
• Voltage: 24
• Inlet Connection: 3/4 inch
• Outlet Connection: 3/4 inch
• Opening Style: Solenoid Operated
• Ignition Type: Standing Pilot
• Fuel Type: Natural Gas
• Pressure Regulator Setting: 3.5 in. wc
• Pressure Tapping: 1/8 in. NPT with plug
• Dimensions: 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
