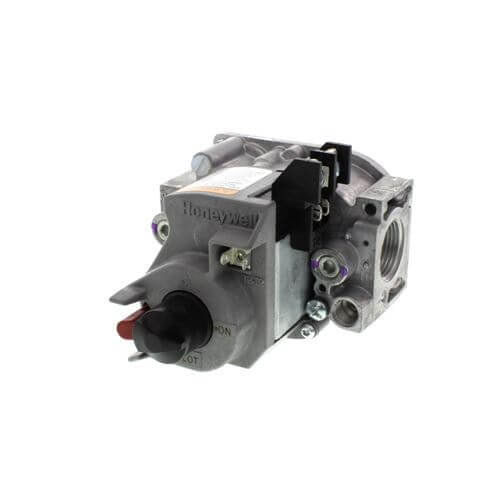

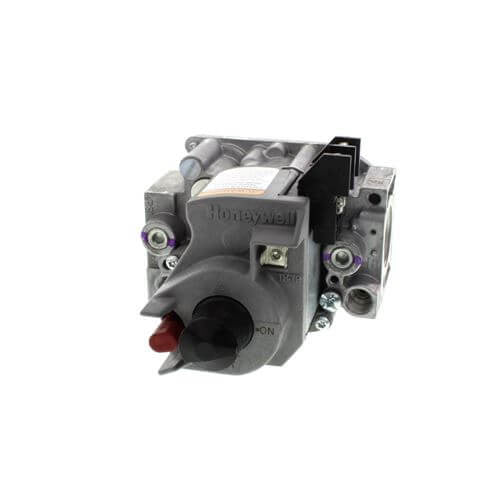

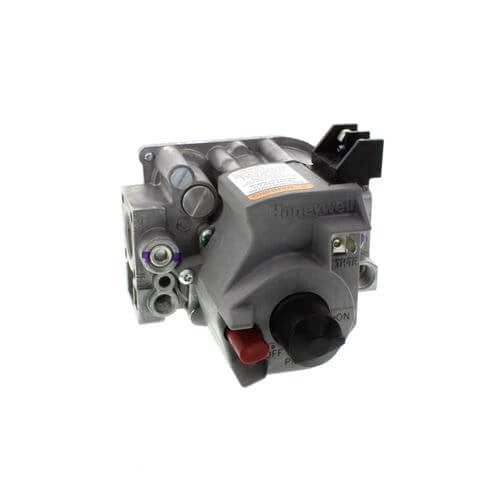

Resideo VR8300A3518 Standard Dual Standing Pilot Gas Valve - 1/2 x 3/4

Product Description

The Resideo VR8300A3518 is a dual standing pilot gas valve designed for gas-fired appliances. This model features a half inch by three quarter inch inlet and outlet connections. The pressure regulator is set to three point five inches water column, suitable for various applications.

• Compatible with natural gas and LP with conversion kits available.
• Integrated safety features with dual automatic valves.
• Compact design facilitates easy installation and access.

Product Highlights

Reliable operation in heating systems with an emphasis on safety and efficiency. Ideal for HVAC professionals looking for durable and efficient gas controls.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8300A3518

Technical Specifications

• Type: Single Stage
• Ignition Type: Standing Pilot
• Gas Type: Natural/LP
• Inlet/Outlet Size: 1/2 in. x 3/4 in.
• Body Pattern: Straight through
• Capacity: 190,000 BTU/hr
• Pressure Regulator Setting: 3.5 in. wc
• Temperature Range: 0 to 175 Degrees F
• Dimensions: 5.375 in. high x 4.0625 in. wide x 2.6875 in. deep
