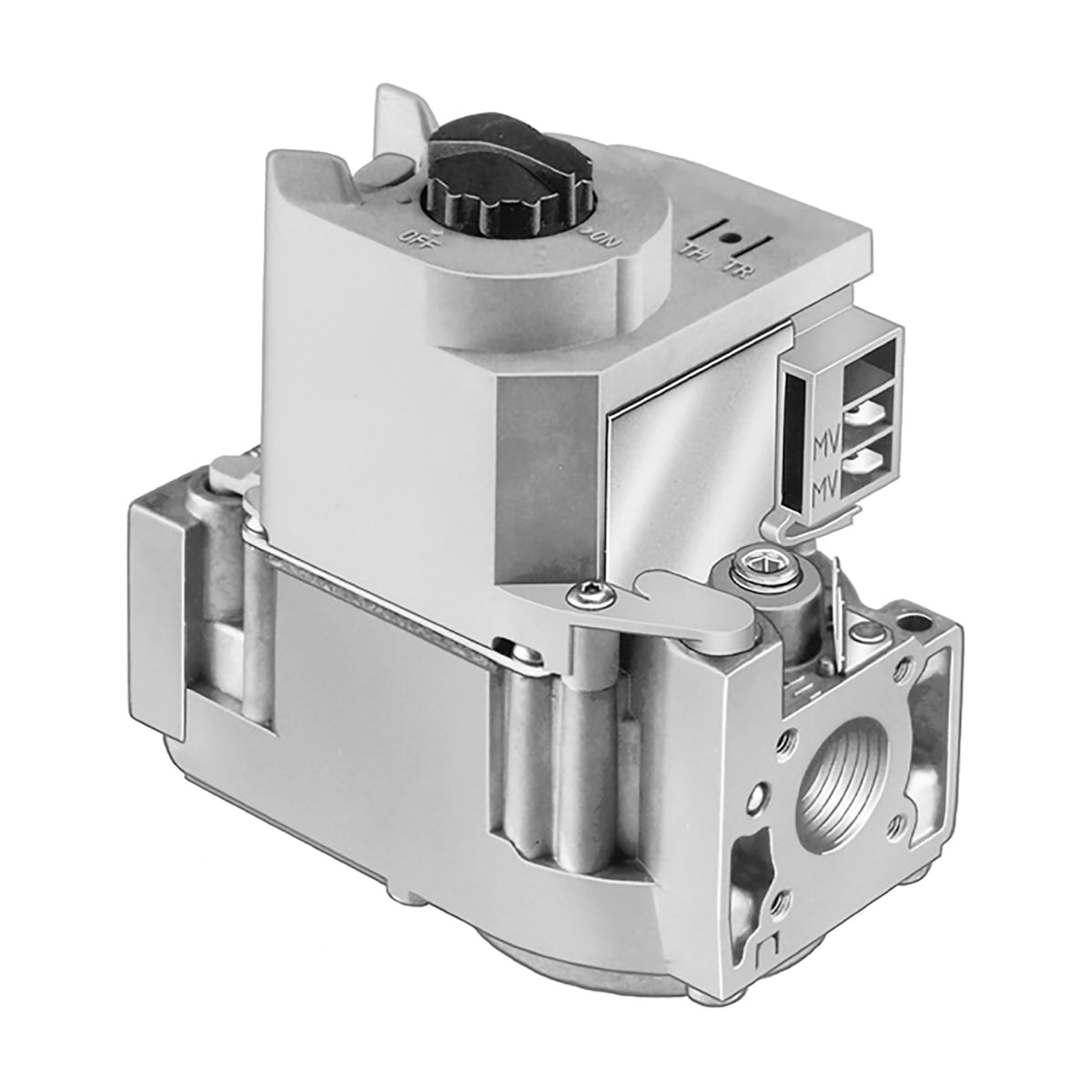

Resideo VR8205N8829T/U Two Stage Gas Controls for Direct Ignition appliance 1/2 in x 1/2 in inlet/outlet size

Product Description

The Resideo VR8205N8829T/U is a gas control designed for hot surface and direct spark systems used in 24 Vac, gas-fired appliances. This control is intended for use with appliances that have capacities ranging from thirty to four hundred fifteen cfh. It features a manual valve, two automatic operators, and a pressure regulator. The first automatic valve is solenoid operated and opens when there is a call for heat, closing once the requirement is met. The second automatic valve is diaphragm operated and opens in response to the regulator while closing if there is a gas or power interruption.

• Designed for use with hot surface and direct spark systems
• Includes manual valve, two automatic valves, and pressure regulation
• Compatible with capacities from thirty to four hundred fifteen cubic feet per hour

Product Highlights

This control meets safety codes by providing dual shutoff mechanisms. It includes kits for converting natural gas to LP and vice versa for both standard and slow-opening valves. All adjustments, wiring connections, and pilot outlet are accessible from the top of the control.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8205N8829T/U

Technical Specifications

• Type: Gas Valves
• Inlet/Outlet Size: 1/2 inch x 1/2 inch
• Voltage: 24 V AC
• Application: Two Stage
• Compatible With: Hot surface/direct spark systems in 24 V AC, gas-fired appliances
• Capacity: 30 to 415 cfh
• Approvals and Standards: UL Component Recognized MH5323, CSA International: 112395, Australian Gas Association design certificate: 4214, Approved for Delta C Applications
