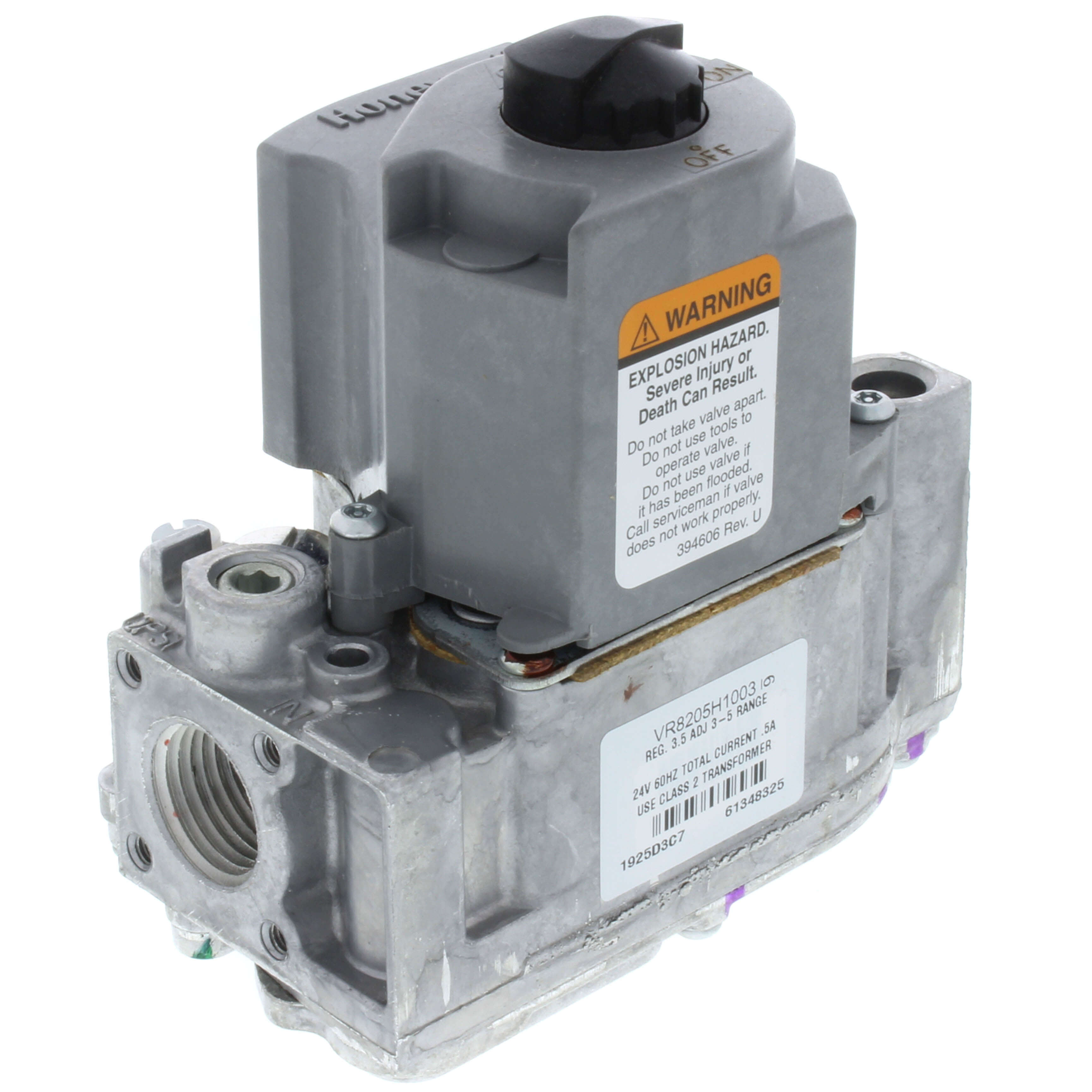

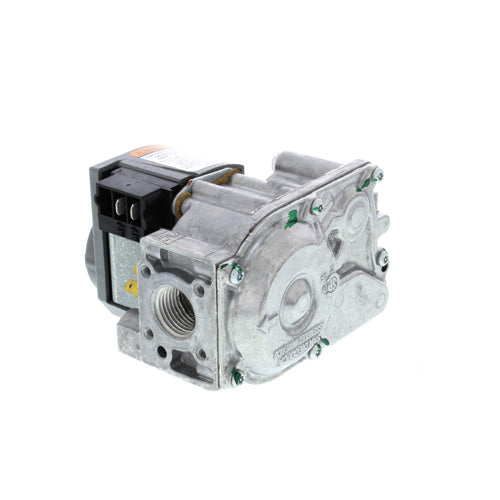

Resideo VR8205H1003 Slow Opening Dual Direct Ignition Gas Valve

Product Description

The Resideo VR8205H1003 is a dual direct ignition gas valve designed for reliable performance in gas-fired appliances. This valve from Resideo, a trusted name in home comfort systems, is ideal for both commercial and residential setups.

• Offers precise flow control with a slow opening function.
• Features dual shutoff for enhanced safety compliance.
• Easy to install with accessible adjustments and connections.

Product Highlights

Equipped with a manual valve and two automatic operators, this model ensures efficient operation and safety. The solenoid-operated first automatic valve opens on a thermostat call for heat and closes when the heat request ends, while the diaphragm-operated second valve operates under the control of an integral regulator, closing if gas or power supply is interrupted.

Product Information

Standard Information

• Brand: Resideo
• Type: Single Stage, Direct Ignition

Technical Specifications

• Inlet/Outlet Size: 1/2 inch
• BTU Capacity: 150,000 BTU/hr
• Voltage: 24V
• Pressure Regulator Setting: 3.5 in. wc
• Temperature Range: 0°F to 175°F
• Mounting: Flexible, up to 90 degrees from upright
• Dimensions: 4 15/16 in. high x 4 1/8 in. wide x 2 11/16 in. deep
• Approvals: AGA, CGA, UL Recognized
