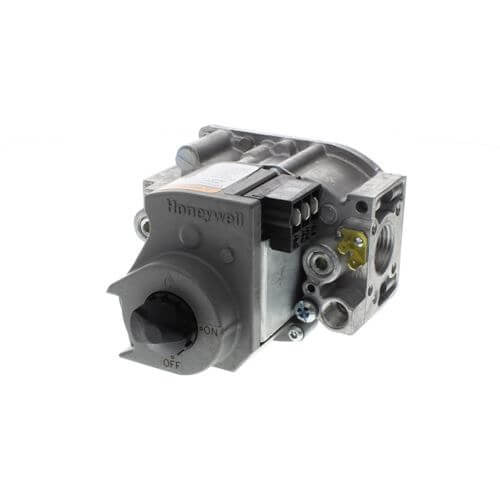

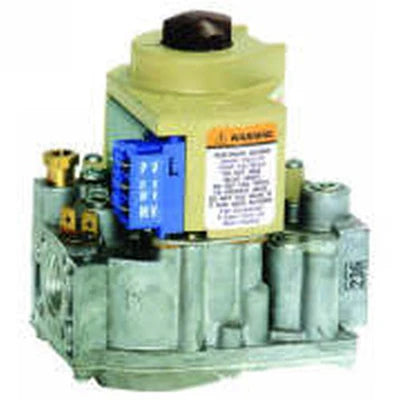

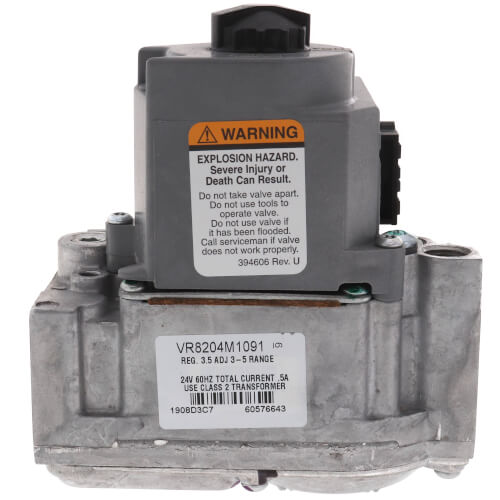

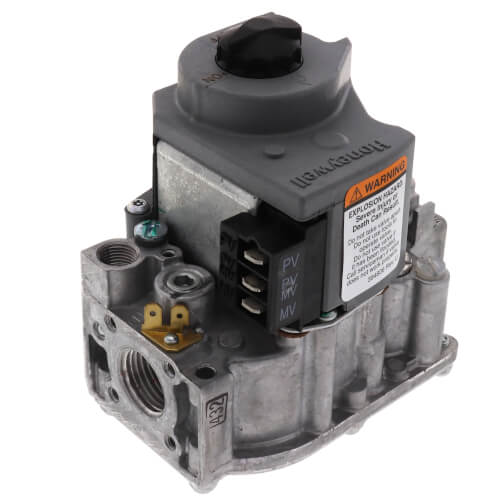

Resideo VR8204M1091 Standard Dual Intermittent Pilot Gas Valve 24V

Product Description

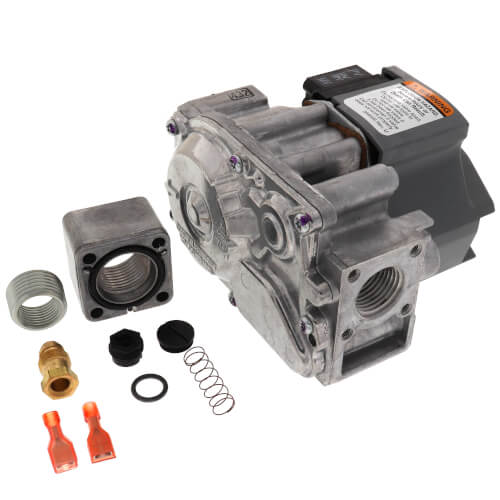

The Resideo VR8204M1091 is a high-efficiency, 24 Vac dual intermittent pilot gas valve suitable for use in gas-fired appliances. It boasts a compact design and includes a natural to LP conversion kit along with various size reducer bushings and flanges.

• Manual valve and two automatic operators
• Servo pressure regulator and pilot adjustment for precise control
• Compatible with S86F,H; S8600F,H and S8610 Control Modules

Product Highlights

This valve ensures reliable performance with its solenoid-operated first automatic valve that opens upon the thermostat's call for heat and closes when the call ends. The second valve, diaphragm-operated, manages gas flow based on regulator control, ensuring safe operation even during power interruptions.

Product Information

Standard Information

• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Gas Type: Natural

Technical Specifications

• Inlet/Outlet Size: 1/2 inch
• Capacity: 150,000 BTU/hr; 20,000 BTU/hr minimum
• Pressure Ratings: 1/2 psi; 3.5 kPa
• Temperature Range: -40 F to +175 F
