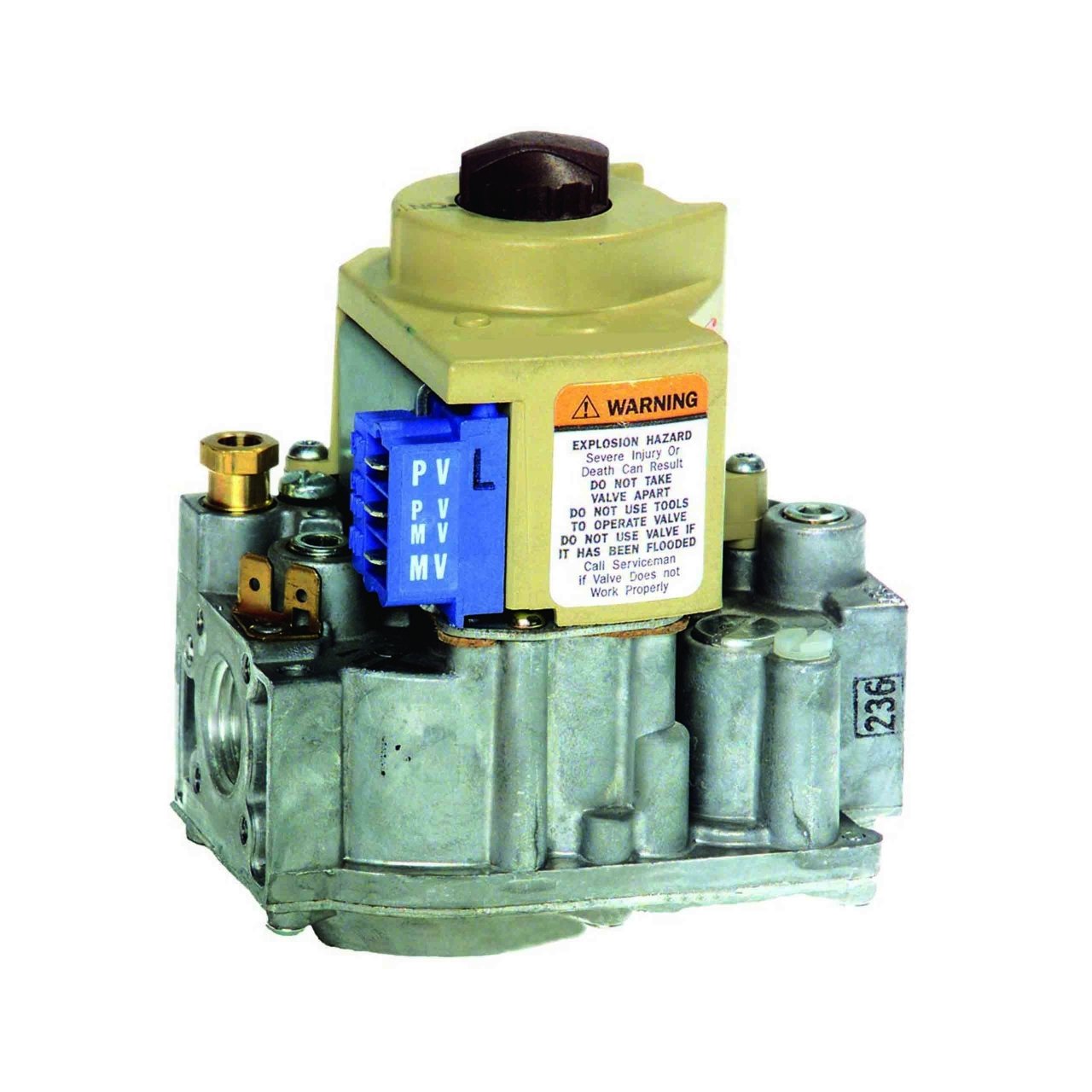

Resideo vr8204h1006/u Combination Gas Valve 200000 Btu/h

Product Description

The RESIDEO vr8204h1006/u is a single-stage combination gas valve designed for intermittent pilot ignition systems operating on natural gas. It handles a capacity range of 20,000 to 200,000 BTU/h and operates on 24 volts AC. The valve integrates a safety shutoff, a manual valve, two automatic operators, a slow-opening pressure regulator, and a pilot adjustment into a single body. It is installed by licensed gas fitters, HVAC technicians, and plumbers servicing residential and light commercial gas-fired heating appliances.

This valve is suited for use in gas-fired appliances requiring intermittent pilot ignition control. The straight-through valve body pattern and 1/2-inch inlet and outlet connections make it a direct fit for common furnace and boiler configurations. It is compatible with a range of Honeywell and Resideo S86 and S90 series control modules, making it a practical choice for both new installations and service replacements on intermittent pilot systems.

Key Features

• Single-stage slow-opening regulation for controlled gas flow on natural gas appliances
• Capacity range of 20,000 to 200,000 BTU/h covers a wide range of residential and light commercial heating equipment
• Operates at 24 volts AC at 60 Hz, compatible with standard low-voltage thermostat circuits
• Straight-through valve body with 1/2-inch inlet and outlet connections for straightforward piping
• Compression fitting pilot gas outlet accepts 1/4-inch OD tubing
• Flexible mounting orientation from 0 degrees to 90 degrees in any direction from upright, including vertical
• UL Component Recognized and CSA International certified; also carries Australian Gas Association approval

Compatibility

Designed for use with S86F, S86H, S860D, S8600F, S8600H, S8610, S90A, and S90B control modules.

Installation Notes

Installation must be performed by a licensed HVAC technician or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or main shutoff and allow the line to depressurize before disconnecting the existing valve. Verify inlet and outlet pipe sizing and thread engagement before applying gas pressure. After installation, leak-test all connections with an approved gas leak detection solution before returning the appliance to service.

Technical Specifications

• Application: Single-Stage Step Opening Valve for Intermittent Pilot
• Ignition Type: Intermittent Pilot
• Fuel Type: Natural Gas
• Capacity (Max): 200,000 BTU/h
• Capacity (Min): 20,000 BTU/h
• Operating Voltage: 24 volts AC
• Operating Frequency: 60 Hz
• Inlet Connection Size: 1/2 inches
• Outlet Connection Size: 1/2 inches
• Regulation Type: Slow Opening
• Pressure Rating: 1/2 psi
• Operating Pressure (Max): 1/2 psi
• Ambient Operating Temperature (Min): 0 degrees F
• Ambient Operating Temperature (Max): 175 degrees F
• Pilot Gas Outlet: Compression Fitting for 1/4 inches OD Tubing
• Valve Body Pattern: Straight Through
• Mounting Type: 0 degrees to 90 degrees in any direction from upright, including vertically
• Product Height: 4.63 inches
• Product Width: 4.13 inches
• Color: Gray, Orange
• Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International 112395, Australian Gas Association 4752

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: vr8204h1006/u
