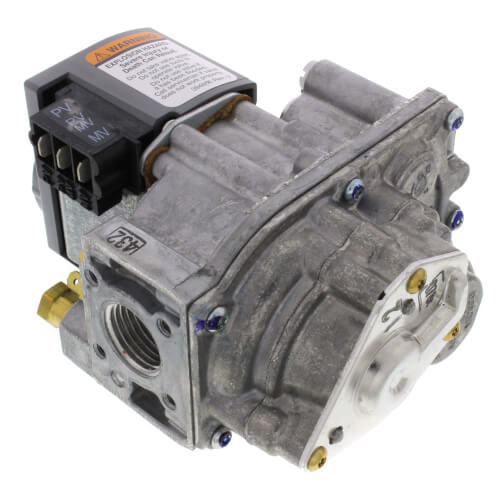

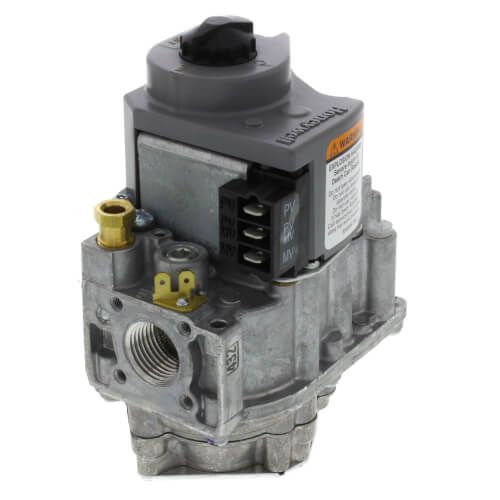

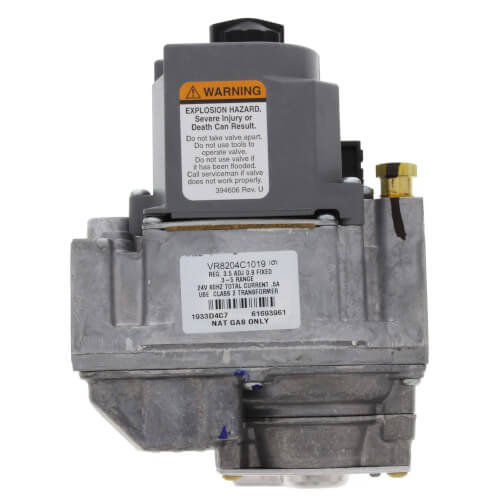

Resideo VR8204C1019 Intermittent 1-Stage Natural Gas Combination Valve 24 Vac

Product Description

The Resideo VR8204C1019 Intermittent 1-Stage Natural Gas Combination Valve is expertly designed for use in 24 Vac, gas-fired, intermittent pilot appliances. This reliable unit is capable of servicing appliances with capacities ranging from 20 to 200 cfh.

• Includes a manual valve, two automatic operators, servo pressure regulator, and pilot adjustment.
• Features a compact, lightweight design that simplifies installation and maintenance.
• Offers dual automatic valves for enhanced safety and efficiency.

Product Highlights

The VR8204C1019 model integrates seamlessly with S86F, H; S8600F, H; and S8610 Control Modules, ensuring a high-performance operation. Its solenoid-operated valve responds swiftly to thermostat commands, while the diaphragm-operated second valve maintains system integrity, closing promptly if gas or power supply is interrupted. Perfect for professionals seeking reliable and efficient gas management solutions.

Product Information

Standard Information

• Inlet Size: 1/2 inches
• Outlet Size: 1/2 inches

Technical Specifications

• Fuel Type: Natural Gas
• Body Pattern: Straight-Through
• Maximum Temperature: 175 degrees Fahrenheit
• Ignition Type: Intermittent Pilot
• Capacity: 150,000 BTU
• Pressure Rating: 1/2 psi
