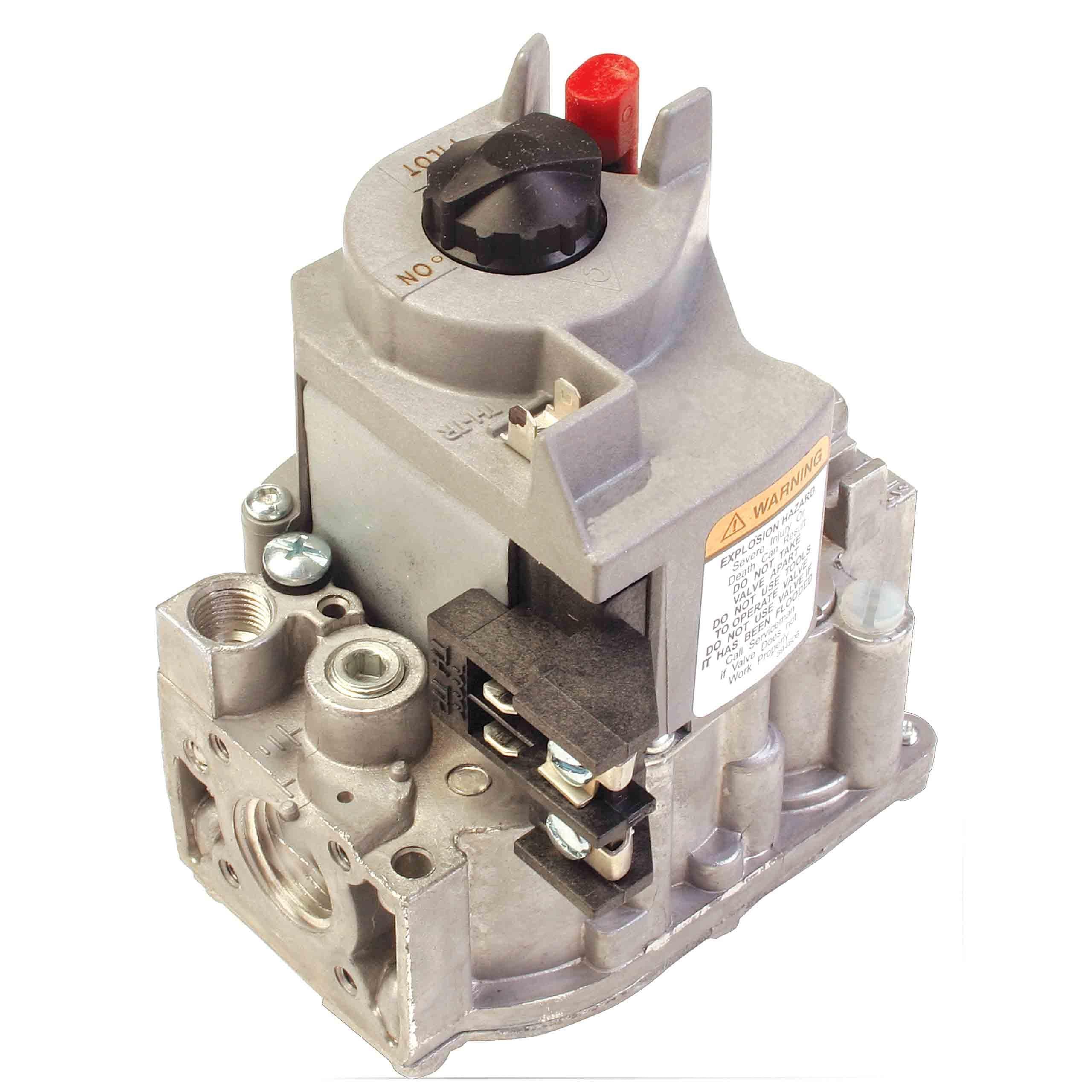

Resideo VR8200H1251/U Low Voltage Slow Opening Combination Gas Control, 24 VAC, 0.5 A, Standing Pilot Ignition, 0.5 psi

Product Description

The Resideo VR8200H1251/U is a combination gas control for 24 VAC gas-fired appliances. This valve is designed for standing pilot applications with a gas capacity range of thirty to three hundred cubic feet per hour. It operates with a low voltage and features a slow opening mechanism.

• Meets safety codes with dual automatic valves.
• Pressure regulator maintains gas output.
• Accessible adjustments and connections for easy installation.

Product Highlights

The VR8200H1251/U gas control valve is crucial for ensuring safe operation in heating systems. It features a compact design, solenoid-operated automatic valves, and an adjustable servo regulator for consistent performance.

Product Information

Standard Information

• Brand: Resideo
• MPN: VR8200H1251/U

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 0.5 A
• Pressure Rating: 0.5 psi
• Temperature Rating: 0 to 175 degrees Fahrenheit
• Dimensions: 4-1/16 inches W x 2-11/16 inches D
• Ignition Type: Standing Pilot
• Mounting Type: Vertical
• Manufacturer: Resideo Technologies
